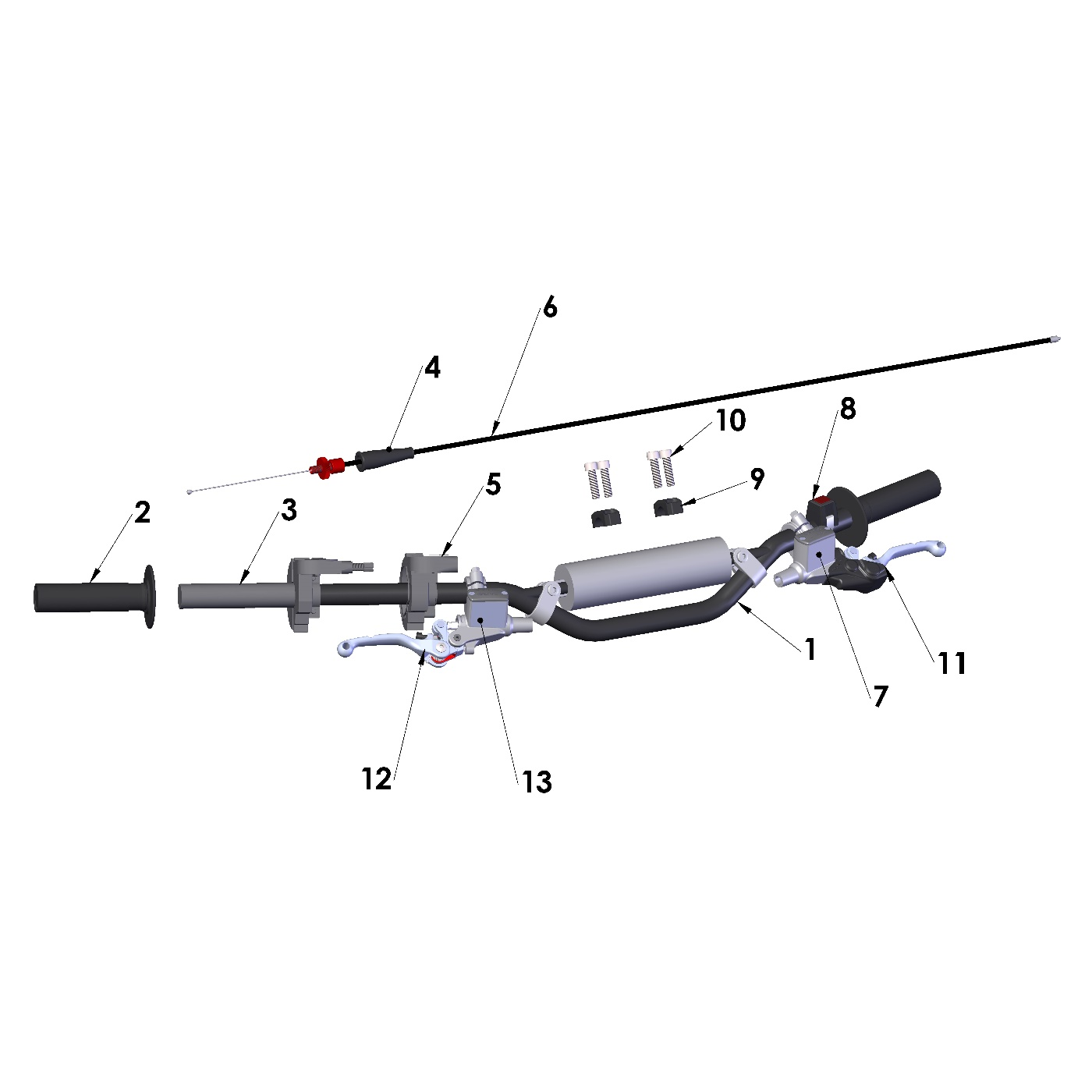

FAC60023 Handlebars – ProTaper CX65 quantity
1 Handlebars – ProTaper CX65 FAC60023 REF: 1
FAC60023
TCC60035 Grips – ProTaper (Set of Two) quantity
2 Grips – ProTaper (Set of Two) TCC60035 REF: 2
TCC60035
FCMU0043 Throttle Assembly quantity
3 Throttle Assembly FCMU0043 REF: 3
FCMU0043
FCMU0042 Tube – Throttle quantity
3 Tube – Throttle FCMU0042 REF: 3
FCMU0042
FCPW0004 Cable Cover quantity
4 Cable Cover FCPW0004 REF: 4
FCPW0004
FCMU0021 Throttle Cover quantity
5 Throttle Cover FCMU0021 REF: 5
FCMU0021
RAC60001 Throttle Cable quantity
6 Throttle Cable RAC60001 REF: 6
RAC60001
CCC60022 Master Cylinder Assembly – Magura – w Lever quantity
7 Master Cylinder Assembly – Magura – w Lever CCC60022 REF: 7
CCC60022
FCMU0033 Kill Switch Assembly quantity
8 Kill Switch Assembly FCMU0033 REF: 8
FCMU0033
TCMU0060BLK Bar Clamp - Black quantity
9 Bar Clamp - Black TCMU0060BLK REF: 9
TCMU0060BLK
HCBC1035 M10x35mm Socket Head Cap Screw (2 Req’d) quantity
10 M10x35mm Socket Head Cap Screw (2 Req’d) HCBC1035 REF: 10
HCBC1035
HCNL1001 10mm Locknut – Regular quantity
11 10mm Locknut – Regular HCNL1001 REF: 11
HCNL1001
TCMU0060BLK Bar Clamp - Black quantity
12 Bar Clamp - Black TCMU0060BLK REF: 12
TCMU0060BLK
HCBC0806 M8x30mm Socket Head Cap Screw (4 Req’d) quantity
13 M8x30mm Socket Head Cap Screw (4 Req’d) HCBC0806 REF: 13
HCBC0806
CCC60034 Lever – Magura Clutch quantity
14 Lever – Magura Clutch CCC60034 REF: 14
CCC60034
CKC60004 Lever Assy – Brake – Card quantity
15 Lever Assy – Brake – Card CKC60004 REF: 15
CKC60004
BAC60010 Master Cylinder Assembly – Brake – with Lever quantity
16 Master Cylinder Assembly – Brake – with Lever BAC60010 REF: 16
BAC60010
HCBC0812 M8x12 SHCS – Low Profile (2 Req’d) quantity
17 M8x12 SHCS – Low Profile (2 Req’d) HCBC0812 REF: 17
HCBC0812
MCMU0001 Pad – Cross Bar quantity
18 Pad – Cross Bar MCMU0001 REF: 18
MCMU0001
BKC60015 Rebuild Kit – Master Cylinder ZL150 (Piston, Seals, Spring, Clip & Retaining Washer) quantity
19 Rebuild Kit – Master Cylinder ZL150 (Piston, Seals, Spring, Clip & Retaining Washer) BKC60015 REF: 19
BKC60015
CCC60038 Rebuild Kit – Clutch Master Cylinder – Magura quantity
20 Rebuild Kit – Clutch Master Cylinder – Magura CCC60038 REF: 20
CCC60038
