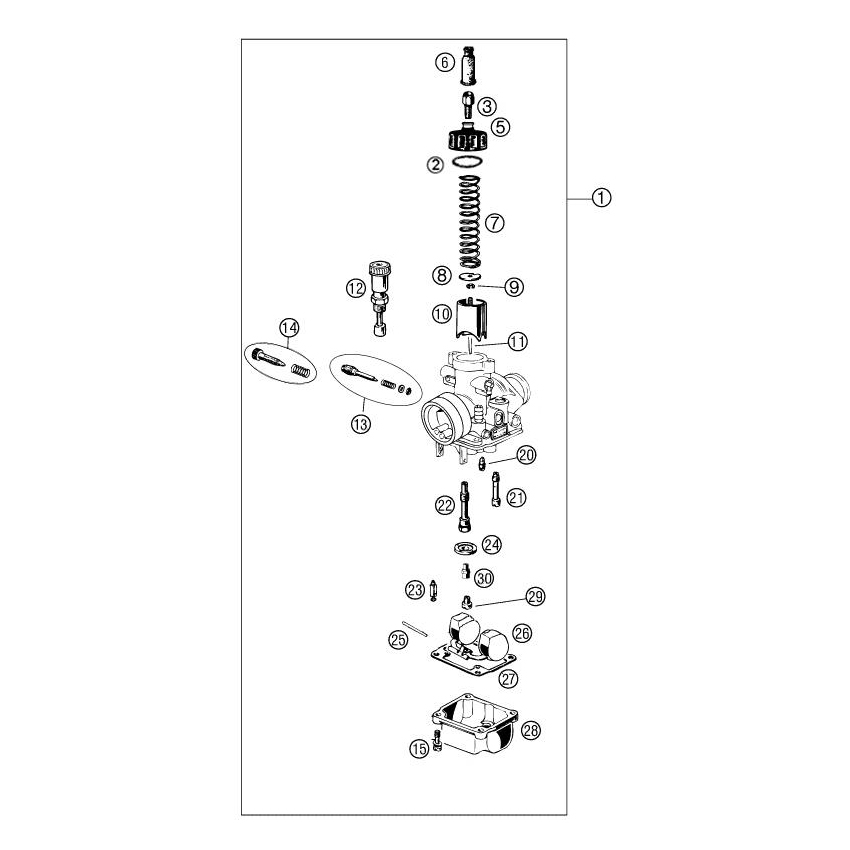

RACS5019 Carburetor quantity
1 Carburetor RACS5019 REF: 1
RACS5019
RCMU0307 Gasket – Carb Top quantity
2 Gasket – Carb Top RCMU0307 REF: 2
RCMU0307
RCMU0003 Cable Adjustor quantity
3 Cable Adjustor RCMU0003 REF: 3
RCMU0003
RCMU0046 Top Carb Thread On quantity
5 Top Carb Thread On RCMU0046 REF: 5
RCMU0046
RCMU0102 Rubber Cable Cap Seal quantity
6 Rubber Cable Cap Seal RCMU0102 REF: 6
RCMU0102
RCMU0004L Slide Spring – Light quantity
7 Slide Spring – Light RCMU0004L REF: 7
RCMU0004L
RCMU0028 Needle Retainer Plate quantity
8 Needle Retainer Plate RCMU0028 REF: 8
RCMU0028
RCMU0007 Needle Clip quantity
9 Needle Clip RCMU0007 REF: 9
RCMU0007
RCMU0340 Slide – #40 Big Air quantity
10 Slide – #40 Big Air RCMU0340 REF: 10
RCMU0340
RCMU0601 Needle – W7 quantity
11 Needle – W7 RCMU0601 REF: 11
RCMU0601
RCMU0204 Choke Assembly quantity
12 Choke Assembly RCMU0204 REF: 12
RCMU0204
RCMU0209 O-Ring – Choke Assembly quantity
12A O-Ring – Choke Assembly RCMU0209 REF: 12A
RCMU0209
RCMU0009 Fuel Mixture Screw #16 quantity
13 Fuel Mixture Screw #16 RCMU0009 REF: 13
RCMU0009
RCMU0011 Idle Adjustment Screw #18 quantity
14 Idle Adjustment Screw #18 RCMU0011 REF: 14
RCMU0011
RCMU0201 Screw – Float Bowl quantity
15 Screw – Float Bowl RCMU0201 REF: 15
RCMU0201
RCMU00xxP Pilot Jet, xx denotes size quantity
20 Pilot Jet, xx denotes size RCMU00xxP REF: 20
RCMU00xxP
RCMU0262 Atomizer 2.62 AU Standard* quantity
22 Atomizer 2.62 AU Standard* RCMU0262 REF: 22
RCMU0262
RCMU0107 Float Needle quantity
23 Float Needle RCMU0107 REF: 23
RCMU0107
RCMU0012 Diffuser #20 quantity
24 Diffuser #20 RCMU0012 REF: 24
RCMU0012
RCMU0016 Float Retainer Pin quantity
25 Float Retainer Pin RCMU0016 REF: 25
RCMU0016
RCMU0301 Float #7 quantity
26 Float #7 RCMU0301 REF: 26
RCMU0301
RCMU0103 Float Bowl Gasket quantity
27 Float Bowl Gasket RCMU0103 REF: 27
RCMU0103
RCMU0306 Float Bowl w/ Deep Well quantity
28 Float Bowl w/ Deep Well RCMU0306 REF: 28
RCMU0306
RCMU00xxM Main Jet, xx denotes size quantity
29 Main Jet, xx denotes size RCMU00xxM REF: 29
RCMU00xxM
RCMU0044 Main Jet Extension quantity
30 Main Jet Extension RCMU0044 REF: 30
RCMU0044
RCCM1301 Velocity Stack quantity
Not shown Velocity Stack RCCM1301 REF: Not shown
RCCM1301
RCCS0006 Fuel Line, 5” quantity
Not shown Fuel Line, 5” RCCS0006 REF: Not shown
RCCS0006
MCMUCL04 Hose Clamps – Fuel Line 8mm quantity
Not shown Hose Clamps – Fuel Line 8mm MCMUCL04 REF: Not shown
MCMUCL04
RCMU0020 Elbow – Carb Vent quantity
Not shown Elbow – Carb Vent RCMU0020 REF: Not shown
RCMU0020
RAMU0001 Cannulus – Y Style Carb Vents quantity
Not shown Cannulus – Y Style Carb Vents RAMU0001 REF: Not shown
RAMU0001
RCMU0330 Slide – #30 Big Air quantity
Accessory Slide – #30 Big Air RCMU0330 REF: Accessory
RCMU0330
RCMU0350 Slide – #50 Big Air quantity
Accessory Slide – #50 Big Air RCMU0350 REF: Accessory
RCMU0350
RCMU0360 Slide – #60 Big Air quantity
Accessory Slide – #60 Big Air RCMU0360 REF: Accessory
RCMU0360
RCMU0026 Needle – W4 quantity
Accessory Needle – W4 RCMU0026 REF: Accessory
RCMU0026
RCMU0602 Needle – W16 quantity
Accessory Needle – W16 RCMU0602 REF: Accessory
RCMU0602
