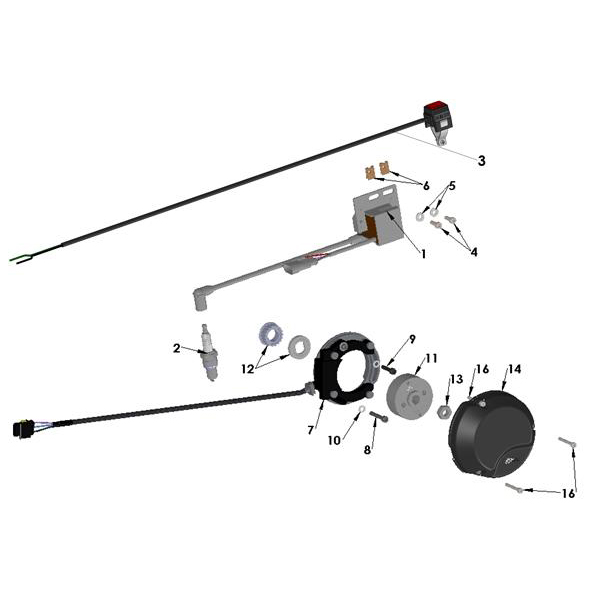

ICCJ0001 Coil/CDI w/ Spark Plug Cap – JR/P3 quantity
1 Coil/CDI w/ Spark Plug Cap – JR/P3 ICCJ0001 REF: 1
ICCJ0001
ECMU0010I Spark Plug, Autolite Iridium quantity
2 Spark Plug, Autolite Iridium ECMU0010I REF: 2
ECMU0010I
FCMU0033 Kill Switch Assembly quantity
3 Kill Switch Assembly FCMU0033 REF: 3
FCMU0033
HCBC0514 M5x14mm Socket Head Cap Screw (5 Req’d) quantity
4 M5x14mm Socket Head Cap Screw (5 Req’d) HCBC0514 REF: 4
HCBC0514
HCWF0501 5mm Flat Washer (2 Req’d) quantity
5 5mm Flat Washer (2 Req’d) HCWF0501 REF: 5
HCWF0501
HCCN0000 5mm Extruded “U” Nut – Coil Mounting (2 Req’d) quantity
6 5mm Extruded “U” Nut – Coil Mounting (2 Req’d) HCCN0000 REF: 6
HCCN0000
ICMU0023 Stator with Grommet quantity
7 Stator with Grommet ICMU0023 REF: 7
ICMU0023
HCBC0535 M5x35mm Socket Head Cap Screw (2 Req’d) quantity
8 M5x35mm Socket Head Cap Screw (2 Req’d) HCBC0535 REF: 8
HCBC0535
HCBC0525 M5x25 SHCS – Throttle Assembly quantity
9 M5x25 SHCS – Throttle Assembly HCBC0525 REF: 9
HCBC0525
HCWF0601 6mm Flat Washer quantity
10 6mm Flat Washer HCWF0601 REF: 10
HCWF0601
ICMU0042 Rotor quantity
11 Rotor ICMU0042 REF: 11
ICMU0042
EKMU0035 Kit – Pulleys, Spacer & Belt Retainer quantity
12 Kit – Pulleys, Spacer & Belt Retainer EKMU0035 REF: 12
EKMU0035
HCNS1001 M10 Nut quantity
13 M10 Nut HCNS1001 REF: 13
HCNS1001
ECC60166 Ignition Cover quantity
14 Ignition Cover ECC60166 REF: 14
ECC60166
HCBC0401 M4x25mm Socket Head Cap Screw (3 Req’d) quantity
16 M4x25mm Socket Head Cap Screw (3 Req’d) HCBC0401 REF: 16
HCBC0401
ICMU0012 Woodruff Key (Not Shown) quantity
Not shown Woodruff Key (Not Shown) ICMU0012 REF: Not shown
ICMU0012
FCMU0030 Cover – Kill Switch Screw quantity
Not shown Cover – Kill Switch Screw FCMU0030 REF: Not shown
FCMU0030
ICMU0017 Spark Plug Cap – 0 Ω quantity
Accessory Spark Plug Cap – 0 Ω ICMU0017 REF: Accessory
ICMU0017
MCMUTL70 Tool – Clutch & 50cc Flywheel Puller quantity
Tool Tool – Clutch & 50cc Flywheel Puller MCMUTL70 REF: Tool
MCMUTL70
ECMU0079 Tool – Dial Indicator – Spark Timing quantity
Tool Tool – Dial Indicator – Spark Timing ECMU0079 REF: Tool
ECMU0079
