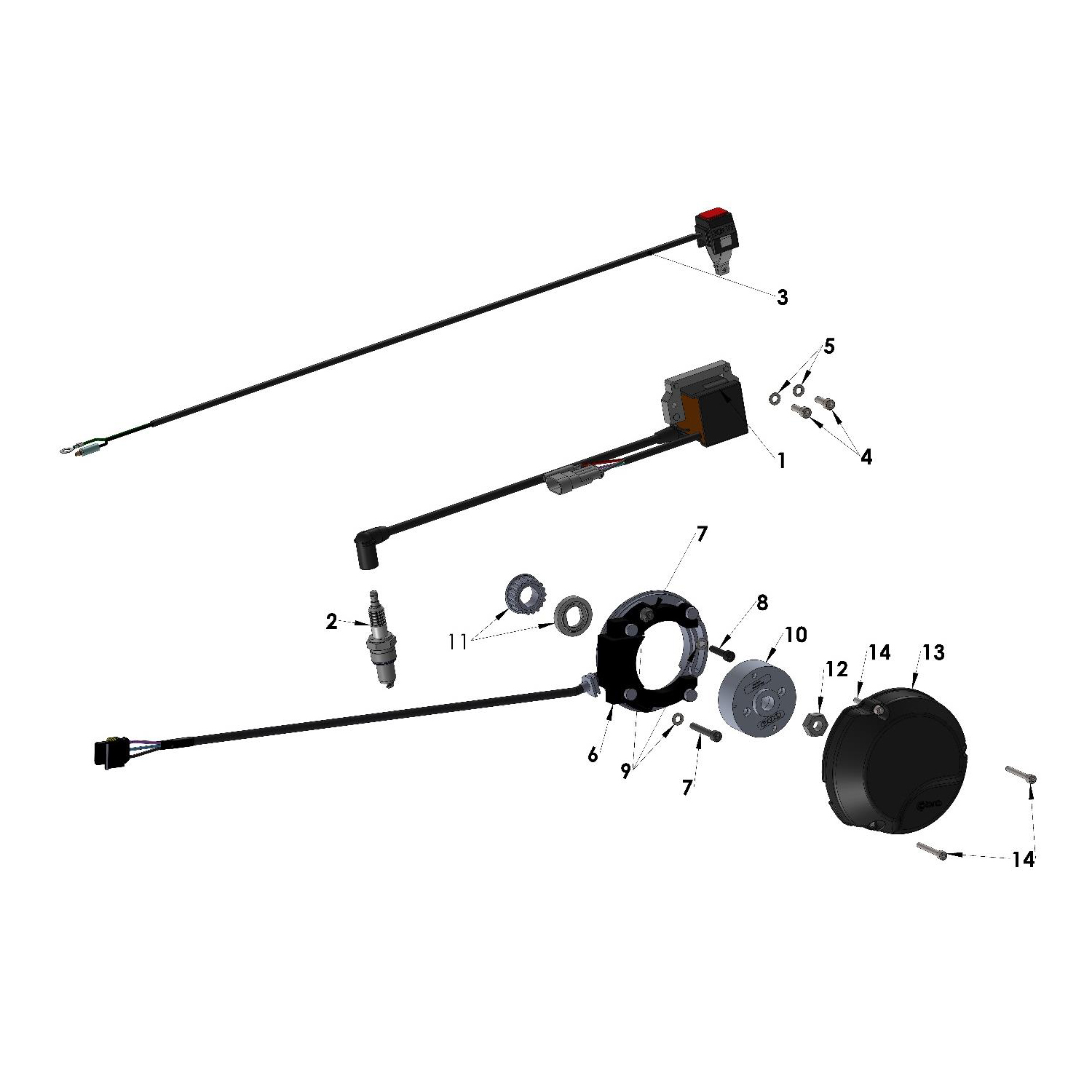

ICMU0044 Coil/CDI w/Spark Plug Cap quantity
+
1 Coil/CDI w/Spark Plug Cap ICMU0044 REF: 1
ICMU0044
-
ECMU0151 Spark Plug, Autolite Iridium quantity
+
2 Spark Plug, Autolite Iridium ECMU0151 REF: 2
ECMU0151
-
FCMU0171 Kill Switch Assembly quantity
+
3 Kill Switch Assembly FCMU0171 REF: 3
FCMU0171
-
HCBC0514 M5x14mm Socket Head Cap Screw (5 Req’d) quantity
+
4 M5x14mm Socket Head Cap Screw (5 Req’d) HCBC0514 REF: 4
HCBC0514
-
HCWF0501 5mm Flat Washer (2 Req’d) quantity
+
5 5mm Flat Washer (2 Req’d) HCWF0501 REF: 5
HCWF0501
-
ICMU0023 Stator with Grommet quantity
+
6 Stator with Grommet ICMU0023 REF: 6
ICMU0023
-
HCBC0535 M5x35mm Socket Head Cap Screw (2 Req’d) quantity
+
7 M5x35mm Socket Head Cap Screw (2 Req’d) HCBC0535 REF: 7
HCBC0535
-
HCBC0525 M5x25 SHCS – Throttle Assembly quantity
+
8 M5x25 SHCS – Throttle Assembly HCBC0525 REF: 8
HCBC0525
-
HCWF0601 6mm Flat Washer quantity
+
9 6mm Flat Washer HCWF0601 REF: 9
HCWF0601
-
ICMU0042 Rotor quantity
+
10 Rotor ICMU0042 REF: 10
ICMU0042
-
EKMU0035 Kit – Pulleys, Spacer & Belt Retainer quantity
+
11 Kit – Pulleys, Spacer & Belt Retainer EKMU0035 REF: 11
EKMU0035
-
HCNS1001 M10 Nut quantity
+
12 M10 Nut HCNS1001 REF: 12
HCNS1001
-
ECC60166 Ignition Cover quantity
+
13 Ignition Cover ECC60166 REF: 13
ECC60166
-
HCBC0401 M4x25mm Socket Head Cap Screw (3 Req’d) quantity
+
14 M4x25mm Socket Head Cap Screw (3 Req’d) HCBC0401 REF: 14
HCBC0401
-
ICMU0012 Woodruff Key (Not Shown) quantity
+
– Woodruff Key (Not Shown) ICMU0012 REF: Not Shown
ICMU0012
-
FCMU0030 Cover – Kill Switch Screw quantity
+
– Cover – Kill Switch Screw FCMU0030 REF: Not Shown
FCMU0030
-
ICMU0016 Spark Plug Cap – 5k Ω quantity
+
Accessory Spark Plug Cap – 5k Ω ICMU0016 REF: Accessory
ICMU0016
-
MCMUTL70 Tool – Clutch & 50cc Flywheel Puller quantity
+
Tool Tool – Clutch & 50cc Flywheel Puller MCMUTL70 REF: Tool
MCMUTL70
-
ECMU0079 Tool – Dial Indicator – Spark Timing quantity
+
Tool Tool – Dial Indicator – Spark Timing ECMU0079 REF: Tool
ECMU0079
