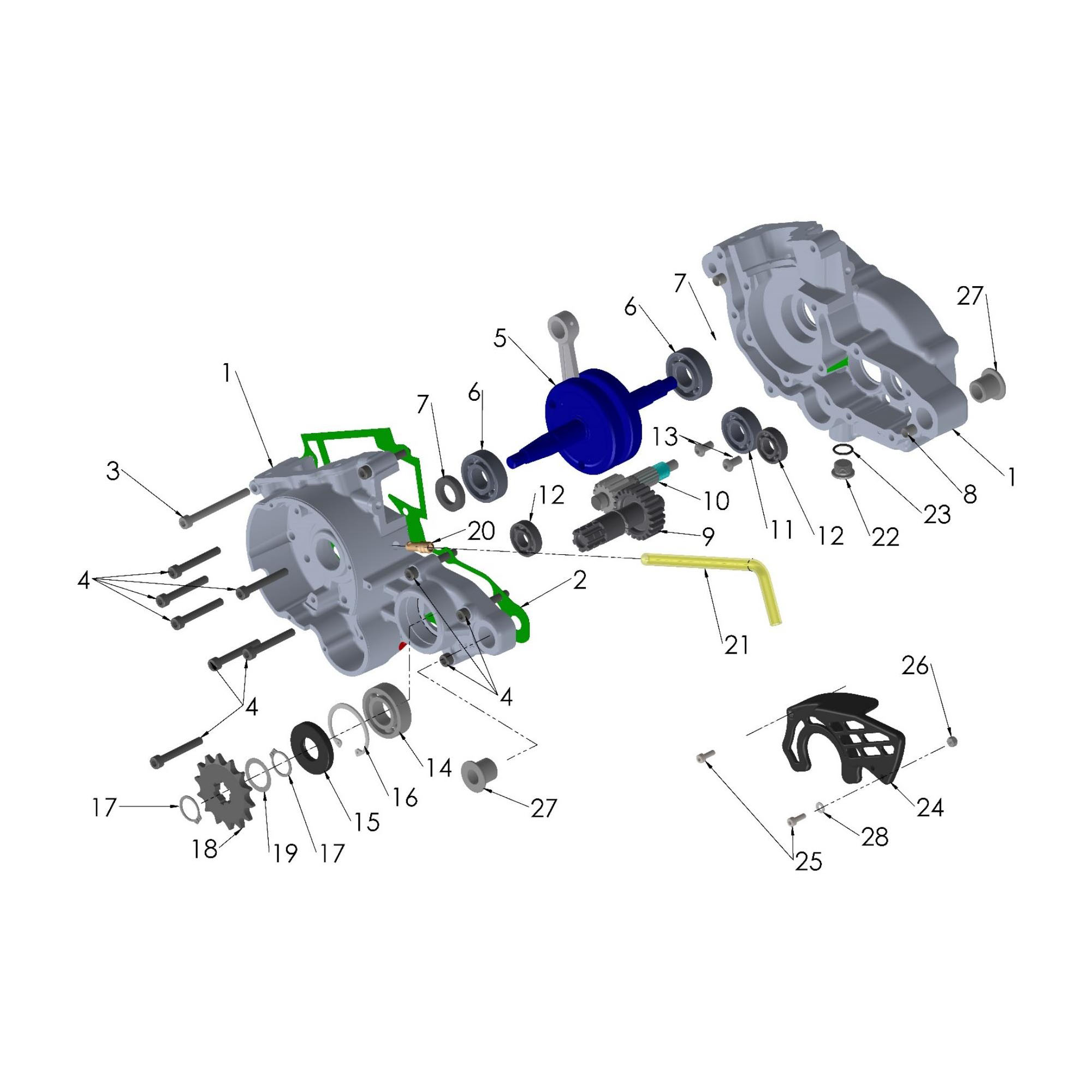

EKMU2024 Crankcase Set with Bearings, Seals & Gasket quantity
1 Crankcase Set with Bearings, Seals & Gasket EKMU2024 REF: 1
EKMU2024
ZCMU0015 Gasket, Crankcase Center quantity
2 Gasket, Crankcase Center ZCMU0015 REF: 2
ZCMU0015
HCBC0665 M6x65mm Socket Head Cap Screw quantity
3 M6x65mm Socket Head Cap Screw HCBC0665 REF: 3
HCBC0665
HCBC0635 M6x35mm Socket Head Cap Screw quantity
4 M6x35mm Socket Head Cap Screw HCBC0635 REF: 4
HCBC0635
ECMU0284 Crankshaft – 3 Side Spline & Internal w/P quantity
5 Crankshaft – 3 Side Spline & Internal w/P ECMU0284 REF: 5
ECMU0284
ECMU0016 Bearing, Crankshaft (2 Req’d) quantity
6 Bearing, Crankshaft (2 Req’d) ECMU0016 REF: 6
ECMU0016
ECMU0118 Seal, Crankshaft (2 Req’d) quantity
7 Seal, Crankshaft (2 Req’d) ECMU0118 REF: 7
ECMU0118
ECMU0122 Dowel (Hollow), Engine Case Alignment (2 Req’d) quantity
8 Dowel (Hollow), Engine Case Alignment (2 Req’d) ECMU0122 REF: 8
ECMU0122
ECMU0999 Output Shaft, Transmission with Gear Supr Wide quantity
9 Output Shaft, Transmission with Gear Supr Wide ECMU0999 REF: 9
ECMU0999
ECMU0268 Secondary Shaft, Transmission with Gear quantity
10 Secondary Shaft, Transmission with Gear ECMU0268 REF: 10
ECMU0268
ECMU0001 Bearing, Transmission Secondary Shaft quantity
11 Bearing, Transmission Secondary Shaft ECMU0001 REF: 11
ECMU0001
ECKG0031 Bearing, Transmission Shaft (1 Each Case Half) quantity
12 Bearing, Transmission Shaft (1 Each Case Half) ECKG0031 REF: 12
ECKG0031
ECKGBR01 Bearing, Transmission Output Shaft quantity
14 Bearing, Transmission Output Shaft ECKGBR01 REF: 14
ECKGBR01
ECMU0236 Seal, Output Shaft quantity
15 Seal, Output Shaft ECMU0236 REF: 15
ECMU0236
ECMU0237 Snap Ring – Output Bearing quantity
16 Snap Ring – Output Bearing ECMU0237 REF: 16
ECMU0237
ECKGSR03 Snap Ring, Sprocket (2 Req’d) quantity
17 Snap Ring, Sprocket (2 Req’d) ECKGSR03 REF: 17
ECKGSR03
PCKG0015 Sprocket 15T quantity
18 Sprocket 15T PCKG0015 REF: 18
PCKG0015
ECMU0176 Shim – Sprocket .2mm Thick quantity
19A Shim – Sprocket .2mm Thick ECMU0176 REF: 19A
ECMU0176
ECMU0177 Shim – Sprocket .3mm Thick quantity
19B Shim – Sprocket .3mm Thick ECMU0177 REF: 19B
ECMU0177
ECMU0178 Shim – Sprocket .5mm Thick quantity
19C Shim – Sprocket .5mm Thick ECMU0178 REF: 19C
ECMU0178
ECMU0233 Fitting, Crankcase Vent – Large quantity
20 Fitting, Crankcase Vent – Large ECMU0233 REF: 20
ECMU0233
ECMU0557 Vent Hose, Crankcase quantity
21 Vent Hose, Crankcase ECMU0557 REF: 21
ECMU0557
ECMU0272 Oil Fill Plug, Venom quantity
22 Oil Fill Plug, Venom ECMU0272 REF: 22
ECMU0272
ZCMUB014 O’Ring – Oil Fill Plug quantity
23 O’Ring – Oil Fill Plug ZCMUB014 REF: 23
ZCMUB014
ECMU0280 Guard – Countershaft Sprocket – CX50 quantity
24 Guard – Countershaft Sprocket – CX50 ECMU0280 REF: 24
ECMU0280
HCBC0412 M4x12mm Socket Head Cap Screw (2 Req’d) quantity
25 M4x12mm Socket Head Cap Screw (2 Req’d) HCBC0412 REF: 25
HCBC0412
HCNL0401 M4 Locknut quantity
26 M4 Locknut HCNL0401 REF: 26
HCNL0401
ECC60028 Bushing – Engine Pivot (1 in Each Side Case) quantity
27 Bushing – Engine Pivot (1 in Each Side Case) ECC60028 REF: 27
ECC60028
HCWF0401 4mm Flat Washer quantity
28 4mm Flat Washer HCWF0401 REF: 28
HCWF0401
ZKMU2024 Gasket Kit – Engine Complete quantity
– Gasket Kit – Engine Complete ZKMU2024 REF: Not Shown
ZKMU2024
EACJ2026 Complete Engine quantity
– Complete Engine EACJ2026 REF: Not Shown
EACJ2026
