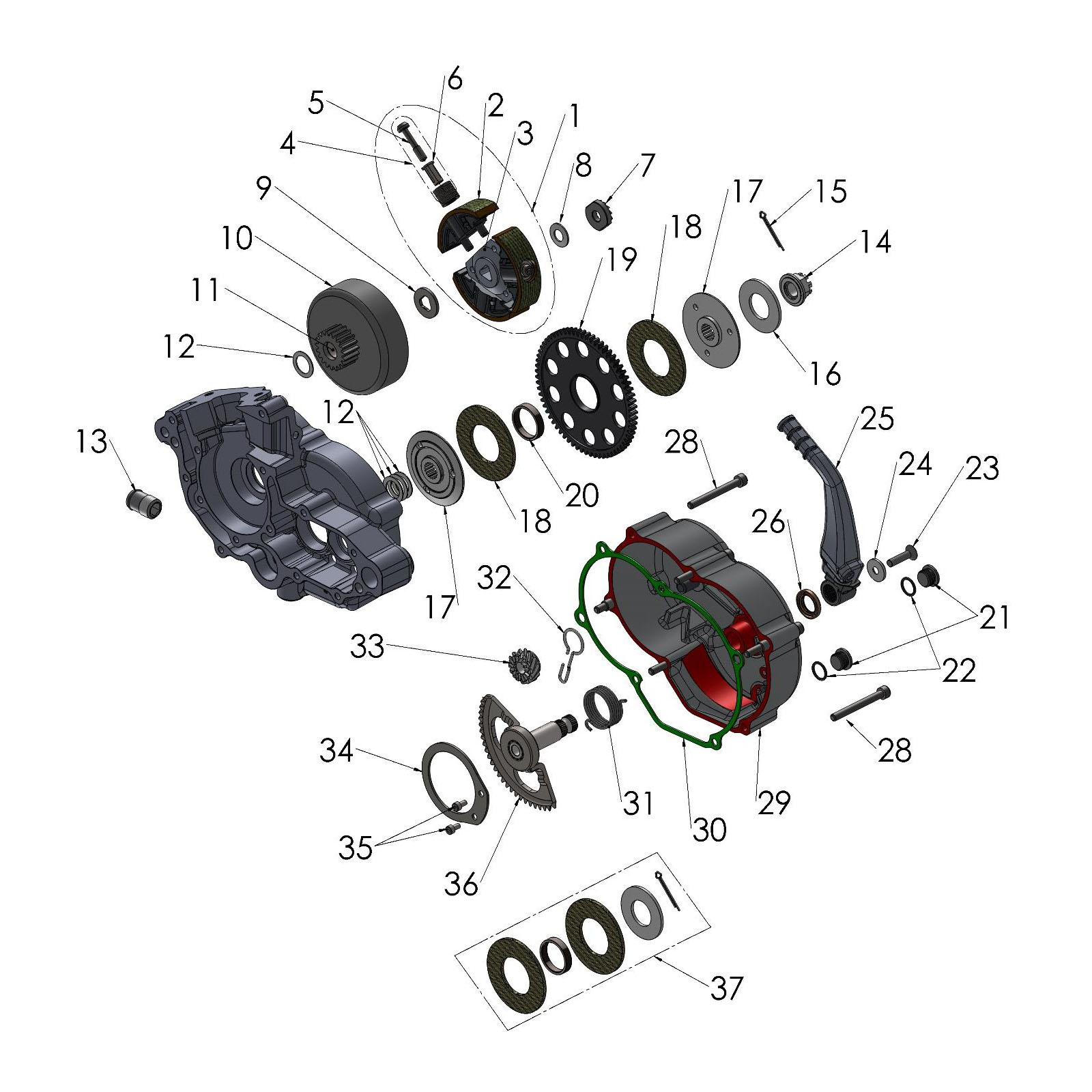

CAFW0500 Clutch Complete Assy - 5GX quantity
1 Clutch Complete Assy - 5GX CAFW0500 REF: 1
CAFW0500
CAFW0050 3 Shoes & Washer Stacks w Bolts - 5GX quantity
2 3 Shoes & Washer Stacks w Bolts - 5GX CAFW0050 REF: 2
CAFW0050
CCMU0005 Clutch Arbor – 3 Sided Spline quantity
3 Clutch Arbor – 3 Sided Spline CCMU0005 REF: 3
CCMU0005
CAFW0005 Washer Stacks - Set of 3 - Clutch - 5GX quantity
4 Washer Stacks - Set of 3 - Clutch - 5GX CAFW0005 REF: 4
CAFW0005
HCBT0001 Bolt - Torx - 5GX Clutch - M6 X 29 quantity
5 Bolt - Torx - 5GX Clutch - M6 X 29 HCBT0001 REF: 5
HCBT0001
CCMU0008 Sleeve - Clutch Stack 5GX quantity
6 Sleeve - Clutch Stack 5GX CCMU0008 REF: 6
CCMU0008
ECMU0018 Clutch Nut, Special quantity
7 Clutch Nut, Special ECMU0018 REF: 7
ECMU0018
ECDC0030 Belleville Lock Washer quantity
8 Belleville Lock Washer ECDC0030 REF: 8
ECDC0030
CCMU0007 Clutch Backing Spacer quantity
9 Clutch Backing Spacer CCMU0007 REF: 9
CCMU0007
ECMU0120 Clutch Basket with Needle Bearing quantity
10 Clutch Basket with Needle Bearing ECMU0120 REF: 10
ECMU0120
ECMU0119 Clutch Bearing quantity
11 Clutch Bearing ECMU0119 REF: 11
ECMU0119
ECMU0040 Clutch to Hub Spacer(s) (0.030”, 0.76mm) quantity
12 Clutch to Hub Spacer(s) (0.030”, 0.76mm) ECMU0040 REF: 12
ECMU0040
ECMU0132 Fitting - Coolant quantity
13 Fitting - Coolant ECMU0132 REF: 13
ECMU0132
ECMU0307 Nut V3 CFD quantity
14 Nut V3 CFD ECMU0307 REF: 14
ECMU0307
HCCP0010 Cotter Pin 3/32 X 1 ½” quantity
15 Cotter Pin 3/32 X 1 ½” HCCP0010 REF: 15
HCCP0010
ECMU0308 Belleville Spring V3 CFD quantity
16 Belleville Spring V3 CFD ECMU0308 REF: 16
ECMU0308
ECMU0306 Slip Hub V3 CFD (2 Req’d) quantity
17 Slip Hub V3 CFD (2 Req’d) ECMU0306 REF: 17
ECMU0306
ECMU0249 Friction Material V3 CFD Thick (2 Req’d) quantity
18 Friction Material V3 CFD Thick (2 Req’d) ECMU0249 REF: 18
ECMU0249
ECMU0301 Gear V3 CFD quantity
19 Gear V3 CFD ECMU0301 REF: 19
ECMU0301
ECMU0305 Bushing V3 CFD 7mm quantity
20 Bushing V3 CFD 7mm ECMU0305 REF: 20
ECMU0305
ECMU0272BLK Oil Fill Plug, Blk quantity
21 Oil Fill Plug, Blk ECMU0272BLK REF: 21
ECMU0272BLK
ZCMUB014 O’Ring – Oil Fill Plug quantity
22 O’Ring – Oil Fill Plug ZCMUB014 REF: 22
ZCMUB014
HCFH0616 M6x16mm Flange Head Bolt quantity
23 M6x16mm Flange Head Bolt HCFH0616 REF: 23
HCFH0616
ECMU0250 Washer – Kick Lever Mounting quantity
24 Washer – Kick Lever Mounting ECMU0250 REF: 24
ECMU0250
EAMU0011 Kick Lever quantity
25 Kick Lever EAMU0011 REF: 25
EAMU0011
ECDC0078 Seal - Kickshaft quantity
26 Seal - Kickshaft ECDC0078 REF: 26
ECDC0078
HCBC0608 M6x55mm Socket Head Cap Screw quantity
28 M6x55mm Socket Head Cap Screw HCBC0608 REF: 28
HCBC0608
ECMU0263 Clutch Cover Assembly with Seal and Pin quantity
29 Clutch Cover Assembly with Seal and Pin ECMU0263 REF: 29
ECMU0263
ZCMU0017 Gasket - Clutch Cover quantity
30 Gasket - Clutch Cover ZCMU0017 REF: 30
ZCMU0017
ECMU0273 Spring, Kickstart quantity
31 Spring, Kickstart ECMU0273 REF: 31
ECMU0273
ECMUSP01 Kick Start Dog Spring (Paper Clip / ‘J’ Spring) quantity
32 Kick Start Dog Spring (Paper Clip / ‘J’ Spring) ECMUSP01 REF: 32
ECMUSP01
ECMU0207 Kickstart Gear Small quantity
33 Kickstart Gear Small ECMU0207 REF: 33
ECMU0207
ECMU0278 Bracket – Kick Shaft Retaining quantity
34 Bracket – Kick Shaft Retaining ECMU0278 REF: 34
ECMU0278
HCBC0508 M5x8mm SHCS (2 Req’d) quantity
35 M5x8mm SHCS (2 Req’d) HCBC0508 REF: 35
HCBC0508
ECMU0269 Kickstart Gear & Shaft quantity
36 Kickstart Gear & Shaft ECMU0269 REF: 36
ECMU0269
HKCP0001 10 Pack of Cotter Pins (HCCP0002) quantity
Kit 10 Pack of Cotter Pins (HCCP0002) HKCP0001 REF: Kit
HKCP0001
EKMU0002 Kickstart Pivot Kit Spring-Ball-Screw quantity
Kit Kickstart Pivot Kit Spring-Ball-Screw EKMU0002 REF: Kit
EKMU0002
HKAM0022 Clutch Shim Hardware Kit quantity
Kit Clutch Shim Hardware Kit HKAM0022 REF: Kit
HKAM0022
EKMU0033 CFD Refresh Kit w Frictions, Spring, Bushing and Cotter Pins quantity
37-Kit CFD Refresh Kit w Frictions, Spring, Bushing and Cotter Pins EKMU0033 REF: 37-Kit
EKMU0033
MCMUTL40 Tool - CFD – Check Stop Pin - Venom quantity
Tool Tool - CFD – Check Stop Pin - Venom MCMUTL40 REF: Tool
MCMUTL40
MCMUTL18 Tool – Sprocket Socket – High Torque quantity
Tool Tool – Sprocket Socket – High Torque MCMUTL18 REF: Tool
MCMUTL18
ECMU0078 Tool – Socket - Clutch Nut – CX50 quantity
Tool Tool – Socket - Clutch Nut – CX50 ECMU0078 REF: Tool
ECMU0078
MCMUTL03 Tool – Piston Stop quantity
Tool Tool – Piston Stop MCMUTL03 REF: Tool
MCMUTL03
MCMUTL70 Tool – Clutch & 50cc Flywheel Puller quantity
Tool Tool – Clutch & 50cc Flywheel Puller MCMUTL70 REF: Tool
MCMUTL70
