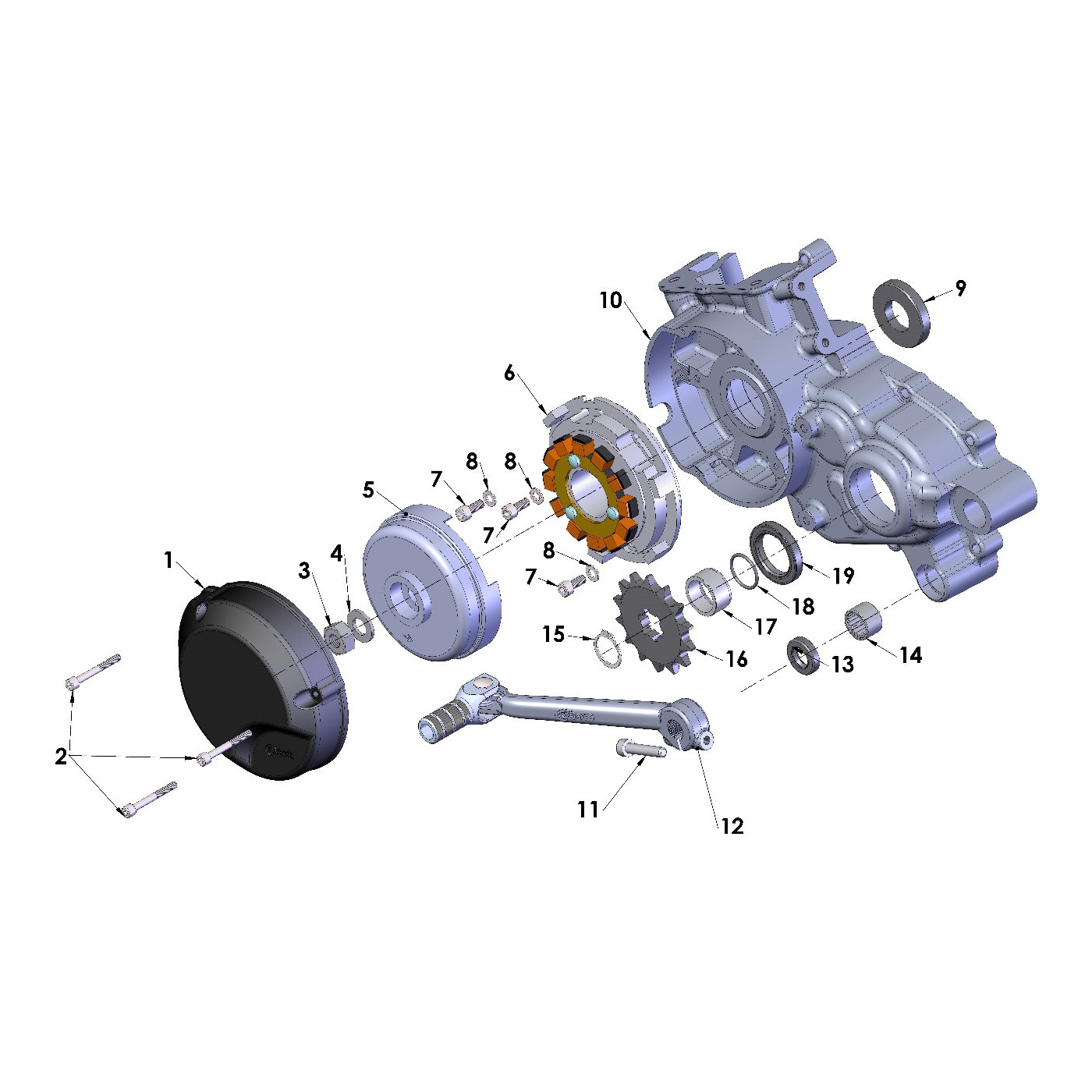

ECC60166 Ignition Cover quantity
1 Ignition Cover ECC60166 REF: 1
ECC60166
HCBC0402 M4x35mm Socket Head Cap Screw – Cover Mounting (3 Req’d) quantity
2 M4x35mm Socket Head Cap Screw – Cover Mounting (3 Req’d) HCBC0402 REF: 2
HCBC0402
HCNS1001 M10 Nut quantity
3 M10 Nut HCNS1001 REF: 3
HCNS1001
HCWF0010 10mm Flat Washer quantity
4 10mm Flat Washer HCWF0010 REF: 4
HCWF0010
ICC60007 Rotor Outer Style CX65 quantity
5 Rotor Outer Style CX65 ICC60007 REF: 5
ICC60007
ICC60014 Stator PVL Digital – Power Valve CX65 quantity
6 Stator PVL Digital – Power Valve CX65 ICC60014 REF: 6
ICC60014
HCBT0516 M5x16mm Button Head Torx (3 Req’d) quantity
7 M5x16mm Button Head Torx (3 Req’d) HCBT0516 REF: 7
HCBT0516
HCWF0501 5mm Flat Washer (2 Req’d) quantity
8 5mm Flat Washer (2 Req’d) HCWF0501 REF: 8
HCWF0501
ECDC0024 Seal – Crankshaft (2 Req’d) quantity
9 Seal – Crankshaft (2 Req’d) ECDC0024 REF: 9
ECDC0024
EKC62024 Engine Case Set w/ B&S CX65 – 2024 and Newer quantity
10 Engine Case Set w/ B&S CX65 – 2024 and Newer EKC62024 REF: 10
EKC62024
HCBC0603 M6X30mm Socket Head Cap Screw quantity
11 M6X30mm Socket Head Cap Screw HCBC0603 REF: 11
HCBC0603
ECC60250 Shifter Lever – Aluminum - Longer quantity
12 Shifter Lever – Aluminum - Longer ECC60250 REF: 12
ECC60250
ECC60254 Seal, Shifter 12.7 quantity
13 Seal, Shifter 12.7 ECC60254 REF: 13
ECC60254
ECC60253 Bearing – Shifter Shaft 12.7 quantity
14 Bearing – Shifter Shaft 12.7 ECC60253 REF: 14
ECC60253
ECKGSR03 Snap Ring, Sprocket (2 Req’d) quantity
15 Snap Ring, Sprocket (2 Req’d) ECKGSR03 REF: 15
ECKGSR03
PCKG00xx xx Denotes Teeth – Range of Teeth (13-16) quantity
16 xx Denotes Teeth – Range of Teeth (13-16) PCKG00xx REF: 16
PCKG00xx
PCKG0013 Sprocket 13T quantity
16 Sprocket 13T PCKG0013 REF: 16
PCKG0013
PCKG0014 Sprocket 14T quantity
16 Sprocket 14T PCKG0014 REF: 16
PCKG0014
PCKG0015 Sprocket 15T quantity
16 Sprocket 15T PCKG0015 REF: 16
PCKG0015
ECDC0009 Spacer, Sprocket quantity
17 Spacer, Sprocket ECDC0009 REF: 17
ECDC0009
ZCMUOR26 O-Ring, Sprocket Spacer – Thicker - 2022 quantity
18 O-Ring, Sprocket Spacer – Thicker - 2022 ZCMUOR26 REF: 18
ZCMUOR26
ECDC0025 Seal, Output quantity
19 Seal, Output ECDC0025 REF: 19
ECDC0025
