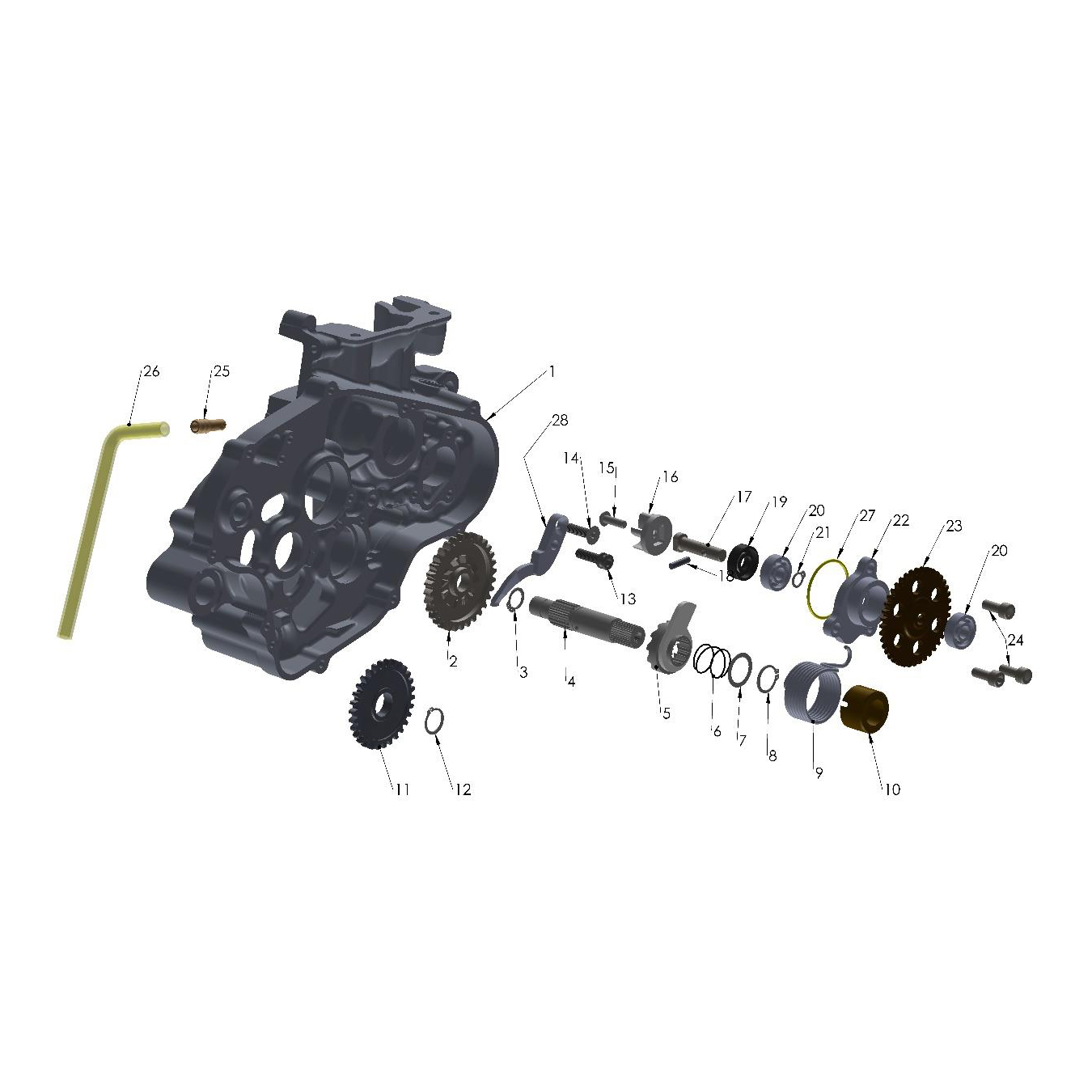

EKC62024 Engine Case Set w/ B&S CX65 – 2024 and Newer quantity
1 Engine Case Set w/ B&S CX65 – 2024 and Newer EKC62024 REF: 1
EKC62024
ECDC0033 Gear, Kickstart quantity
2 Gear, Kickstart ECDC0033 REF: 2
ECDC0033
ECDC0035 Snap Ring, External 12mm quantity
3 Snap Ring, External 12mm ECDC0035 REF: 3
ECDC0035
ECC60203 Shaft, Kick Starter – Threaded quantity
4 Shaft, Kick Starter – Threaded ECC60203 REF: 4
ECC60203
ECC60201 Gear – Kick Ramp - No Arm quantity
5 Gear – Kick Ramp - No Arm ECC60201 REF: 5
ECC60201
ECDC0042 Spring, Kickstart Ramp quantity
6 Spring, Kickstart Ramp ECDC0042 REF: 6
ECDC0042
ECDC0043 Washer, Kickstart Backup quantity
7 Washer, Kickstart Backup ECDC0043 REF: 7
ECDC0043
ECDC0036 Snap Ring, External 16mm - Spring Ret. quantity
8 Snap Ring, External 16mm - Spring Ret. ECDC0036 REF: 8
ECDC0036
ECC60067 Spring – Kick Return CX65 quantity
9 Spring – Kick Return CX65 ECC60067 REF: 9
ECC60067
ECC60202 Spacer – Kick Spring Centering - 2015 quantity
10 Spacer – Kick Spring Centering - 2015 ECC60202 REF: 10
ECC60202
ECDC0032 Gear, Kick Start Idle quantity
11 Gear, Kick Start Idle ECDC0032 REF: 11
ECDC0032
ECDC0037 Snap Ring, External 15mm quantity
12 Snap Ring, External 15mm ECDC0037 REF: 12
ECDC0037
ECMU0174 Holder – Spring 20mm quantity
13 Holder – Spring 20mm ECMU0174 REF: 13
ECMU0174
HCFH0616 M6x16mm Flange Head Bolt quantity
14 M6x16mm Flange Head Bolt HCFH0616 REF: 14
HCFH0616
HCBB0403 M4x8 Button Head quantity
15 M4x8 Button Head HCBB0403 REF: 15
HCBB0403
ECKG0073 Impeller, Water Pump (Aluminum) quantity
16 Impeller, Water Pump (Aluminum) ECKG0073 REF: 16
ECKG0073
ECC60173 Shaft – Waterpump quantity
17 Shaft – Waterpump ECC60173 REF: 17
ECC60173
ECDC0051 Pin – Dowel quantity
18 Pin – Dowel ECDC0051 REF: 18
ECDC0051
ECC60175 Seal – Waterpump quantity
19 Seal – Waterpump ECC60175 REF: 19
ECC60175
ECC60174 Bearing – Waterpump quantity
20 Bearing – Waterpump ECC60174 REF: 20
ECC60174
ECC60176 Snap Ring – 8mm Shaft quantity
21 Snap Ring – 8mm Shaft ECC60176 REF: 21
ECC60176
ECC60177 Housing – Waterpump quantity
22 Housing – Waterpump ECC60177 REF: 22
ECC60177
ECC60172 Gear – Waterpump Drive quantity
23 Gear – Waterpump Drive ECC60172 REF: 23
ECC60172
HCBC0616 M6x16 Socket Head Cap Screw (3 req'd) quantity
24 M6x16 Socket Head Cap Screw (3 req'd) HCBC0616 REF: 24
HCBC0616
ECMU0233 Fitting, Crankcase Vent – Large quantity
25 Fitting, Crankcase Vent – Large ECMU0233 REF: 25
ECMU0233
ECMU0534 Vent Hose quantity
26 Vent Hose ECMU0534 REF: 26
ECMU0534
ZCMUOR07 O-Ring, Exhaust Flange quantity
27 O-Ring, Exhaust Flange ZCMUOR07 REF: 27
ZCMUOR07
ECC60200 Ramp w Stop - Kick Mechanism quantity
28 Ramp w Stop - Kick Mechanism ECC60200 REF: 28
ECC60200
