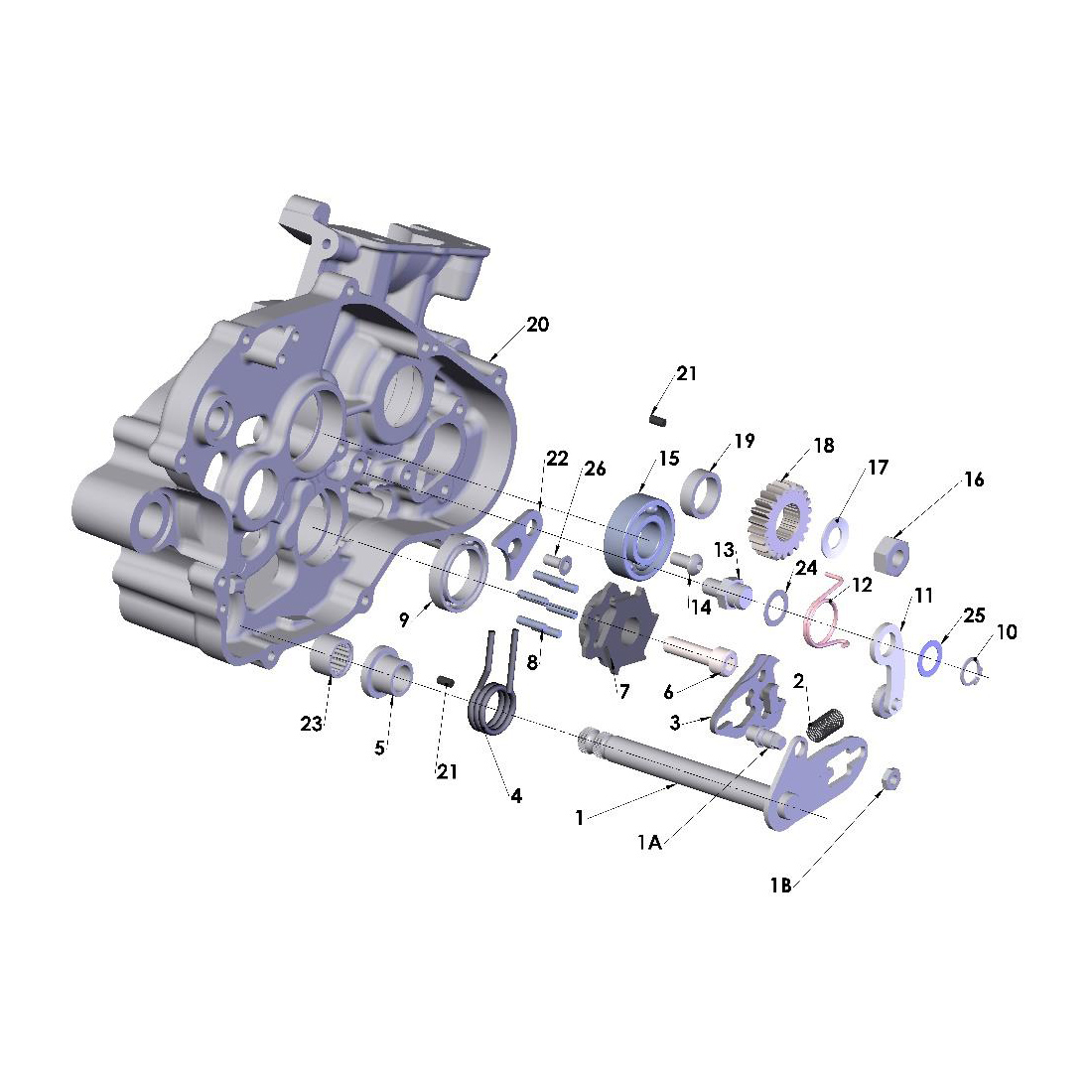

EAC60043 Shaft – Shifter w/ Pivot Plate – Adjustable quantity
1 Shaft – Shifter w/ Pivot Plate – Adjustable EAC60043 REF: 1
EAC60043
ECC60265 Adjuster – Shift Spring Centering quantity
– Adjuster – Shift Spring Centering ECC60265 REF: Not Shown
ECC60265
HCNJ0801 Nut – Jam quantity
– Nut – Jam HCNJ0801 REF: Not Shown
HCNJ0801
ECDC0055 Spring – Shifter Plates quantity
2 Spring – Shifter Plates ECDC0055 REF: 2
ECDC0055
EAC60018 Plate – Shift Sliding quantity
3 Plate – Shift Sliding EAC60018 REF: 3
EAC60018
ECC60124 Spring – Shifter Shaft Centering quantity
4 Spring – Shifter Shaft Centering ECC60124 REF: 4
ECC60124
ECC60258 Bushing – Spring Centering quantity
5 Bushing – Spring Centering ECC60258 REF: 5
ECC60258
HCBC0830 M8x30mm Socket Head Cap Screw (4 Req’d) quantity
6 M8x30mm Socket Head Cap Screw (4 Req’d) HCBC0830 REF: 6
HCBC0830
ECC60189 Cassette – Shift (w/o Pins) quantity
7 Cassette – Shift (w/o Pins) ECC60189 REF: 7
ECC60189
ECDC0051 Pin – Dowel quantity
8 Pin – Dowel ECDC0051 REF: 8
ECDC0051
ECDC0022 Bearing – Shift Drum quantity
9 Bearing – Shift Drum ECDC0022 REF: 9
ECDC0022
ECDC0035 Snap Ring, External 12mm quantity
10 Snap Ring, External 12mm ECDC0035 REF: 10
ECDC0035
ECMU0545 Arm Assy – Shift Follower quantity
11 Arm Assy – Shift Follower ECMU0545 REF: 11
ECMU0545
ECMU0546 Spring – Shift Follower Arm quantity
12 Spring – Shift Follower Arm ECMU0546 REF: 12
ECMU0546
ECC60096 Pivot – Shift Arm quantity
13 Pivot – Shift Arm ECC60096 REF: 13
ECC60096
HCBF2612 M6x12mm Flanged Button Head Black Oxide quantity
14 M6x12mm Flanged Button Head Black Oxide HCBF2612 REF: 14
HCBF2612
ECMU0216 Bearing – Primary Shaft Clutch Side quantity
15 Bearing – Primary Shaft Clutch Side ECMU0216 REF: 15
ECMU0216
HCNS1001 M10 Nut quantity
16 M10 Nut HCNS1001 REF: 16
HCNS1001
ECDC0030 Belleville Lock Washer quantity
17 Belleville Lock Washer ECDC0030 REF: 17
ECDC0030
ECDC0073 Gear – Crank Drive quantity
18 Gear – Crank Drive ECDC0073 REF: 18
ECDC0073
ECC60198 Spacer – Crank Drive Gear quantity
19 Spacer – Crank Drive Gear ECC60198 REF: 19
ECC60198
EKC62024 Engine Case Set w/ B&S CX65 – 2024 and Newer quantity
20 Engine Case Set w/ B&S CX65 – 2024 and Newer EKC62024 REF: 20
EKC62024
ECDC0053 Dowel – Clutch Cover Position (2 Req’d) quantity
21 Dowel – Clutch Cover Position (2 Req’d) ECDC0053 REF: 21
ECDC0053
ECC60199 Plate – Bearing Retainer quantity
22 Plate – Bearing Retainer ECC60199 REF: 22
ECC60199
ECC60253 Bearing – Shifter Shaft 12.7 quantity
23 Bearing – Shifter Shaft 12.7 ECC60253 REF: 23
ECC60253
ECC60119 Shim Washer (Note Measure Shim to Order Correct Size) quantity
24 Shim Washer (Note Measure Shim to Order Correct Size) ECC60119 REF: 24
ECC60119
ECC60152 Shim 0.2mm Thick quantity
25 Shim 0.2mm Thick ECC60152 REF: 25
ECC60152
ECC60153 Shim 0.3mm Thick quantity
25 Shim 0.3mm Thick ECC60153 REF: 25
ECC60153
HCFH0512 M5x12mm Flat Head Screw quantity
26 M5x12mm Flat Head Screw HCFH0512 REF: 26
HCFH0512
ECC60028 Bushing – Engine Pivot (1 in Each Side Case) quantity
Not shown Bushing – Engine Pivot (1 in Each Side Case) ECC60028 REF: Not shown
ECC60028
