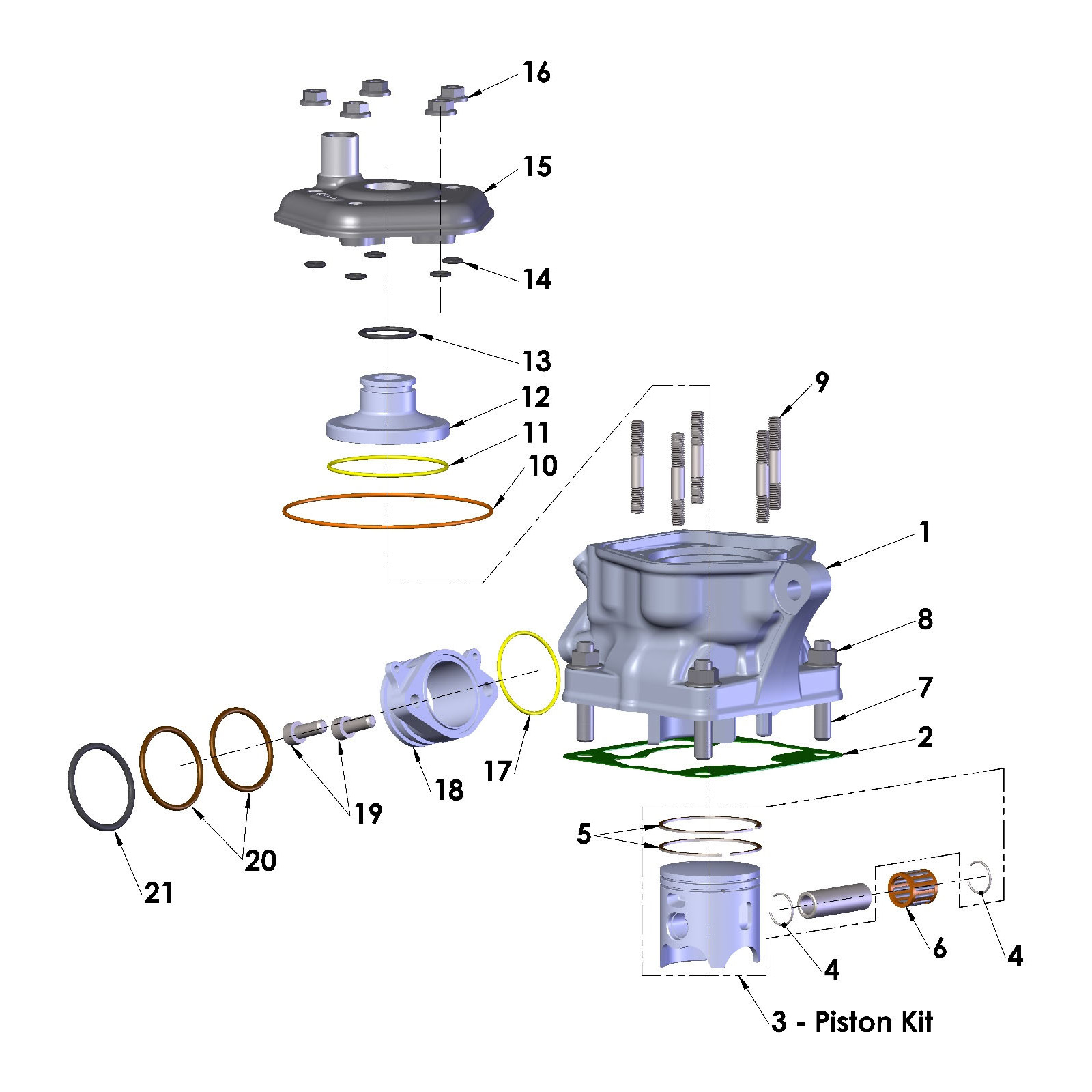

ECC60558 Cylinder Kit PV CX65 (Includes Piston Kit & Cylinder) quantity
1 Cylinder Kit PV CX65 (Includes Piston Kit & Cylinder) ECC60558 REF: 1
ECC60558
ZCC62402 Base Gasket 0.2mm Thick quantity
2 Base Gasket 0.2mm Thick ZCC62402 REF: 2
ZCC62402
ZCC62403 Base Gasket 0.3mm Thick quantity
2 Base Gasket 0.3mm Thick ZCC62403 REF: 2
ZCC62403
ZCC62404 Base Gasket 0.4mm Thick quantity
2 Base Gasket 0.4mm Thick ZCC62404 REF: 2
ZCC62404
ZCC62405 Base Gasket 0.5mm Thick quantity
2 Base Gasket 0.5mm Thick ZCC62405 REF: 2
ZCC62405
ZCC62406 Base Gasket 0.6mm Thick quantity
2 Base Gasket 0.6mm Thick ZCC62406 REF: 2
ZCC62406
ZCC62407 Base Gasket 0.7mm Thick quantity
2 Base Gasket 0.7mm Thick ZCC62407 REF: 2
ZCC62407
ZCC62408 Base Gasket 0.8mm Thick quantity
2 Base Gasket 0.8mm Thick ZCC62408 REF: 2
ZCC62408
ECC60208x Piston Kit (x Denotes Piston Size A, B, or C) quantity
3 Piston Kit (x Denotes Piston Size A, B, or C) ECC60208x REF: 3
ECC60208x
ECC60208WP Wrist Pin – Piston – 44.5mm Cast quantity
3 Wrist Pin – Piston – 44.5mm Cast ECC60208WP REF: 3
ECC60208WP
ECC60222 Snap Ring for Piston (2 Req’d) quantity
4 Snap Ring for Piston (2 Req’d) ECC60222 REF: 4
ECC60222
ECC60221 Piston Rings 44.5mm (2 per Set) quantity
5 Piston Rings 44.5mm (2 per Set) ECC60221 REF: 5
ECC60221
ECDC0061 Bearing, Wrist Pin quantity
6 Bearing, Wrist Pin ECDC0061 REF: 6
ECDC0061
ECC60109 Stud, Cylinder 8mm (4 Req’d) quantity
7 Stud, Cylinder 8mm (4 Req’d) ECC60109 REF: 7
ECC60109
HCNF0801 8mm Flange Nut (4 Req’d) quantity
8 8mm Flange Nut (4 Req’d) HCNF0801 REF: 8
HCNF0801
ECC60107 6mm Stud (5 Req’d) quantity
9 6mm Stud (5 Req’d) ECC60107 REF: 9
ECC60107
ZCC60009 O-Ring, Cylinder Head Large quantity
10 O-Ring, Cylinder Head Large ZCC60009 REF: 10
ZCC60009
ZCMUOR05 O-Ring Cylinder Head Medium - Yellow quantity
11 O-Ring Cylinder Head Medium - Yellow ZCMUOR05 REF: 11
ZCMUOR05
ECC60207 Cylinder Head Insert quantity
12 Cylinder Head Insert ECC60207 REF: 12
ECC60207
ZCMUOR23 O-Ring Cylinder Head Small quantity
13 O-Ring Cylinder Head Small ZCMUOR23 REF: 13
ZCMUOR23
ZCMUOR03 O-Ring Cylinder Stud (5 Req’d) quantity
14 O-Ring Cylinder Stud (5 Req’d) ZCMUOR03 REF: 14
ZCMUOR03
ECC60149 Cylinder Head Outer quantity
15 Cylinder Head Outer ECC60149 REF: 15
ECC60149
HCNF0601 6mm Flange Nut (5 Req’d) quantity
16 6mm Flange Nut (5 Req’d) HCNF0601 REF: 16
HCNF0601
ZCMUOR07 O-Ring, Exhaust Flange quantity
17 O-Ring, Exhaust Flange ZCMUOR07 REF: 17
ZCMUOR07
ECMU0262 Exhaust Flange quantity
18 Exhaust Flange ECMU0262 REF: 18
ECMU0262
HCBC0612 M6x12, Exhaust Flange Screw (2 Req’d) quantity
19 M6x12, Exhaust Flange Screw (2 Req’d) HCBC0612 REF: 19
HCBC0612
ZCMOTE11 O-Rings – Pipe to Flange (2 Req’d) quantity
20 O-Rings – Pipe to Flange (2 Req’d) ZCMOTE11 REF: 20
ZCMOTE11
ZCMUOR11 O-Ring – Pipe to Flange (1 Req’d) quantity
21 O-Ring – Pipe to Flange (1 Req’d) ZCMUOR11 REF: 21
ZCMUOR11
ZKMUOR14 O-Ring Kit – Top End – CX65 PV quantity
Not shown O-Ring Kit – Top End – CX65 PV ZKMUOR14 REF: Not shown
ZKMUOR14
ZKC62024 Gasket Kit – Complete Engine quantity
Not shown Gasket Kit – Complete Engine ZKC62024 REF: Not shown
ZKC62024
EAC62024 Complete Engine - 2024 quantity
Not shown Complete Engine - 2024 EAC62024 REF: Not shown
EAC62024
EKC62401A Rebuild Kit Includes Items 2, 3, 6, 10, 11, 13, & 14 quantity
Not shown Rebuild Kit Includes Items 2, 3, 6, 10, 11, 13, & 14 EKC62401A REF: Not shown
EKC62401A
EKC62401B Rebuild Kit Includes Items 2, 3, 6, 10, 11, 13, & 14 quantity
Not shown Rebuild Kit Includes Items 2, 3, 6, 10, 11, 13, & 14 EKC62401B REF: Not shown
EKC62401B
EKC62401C Rebuild Kit Includes Items 2, 3, 6, 10, 11, 13, & 14 quantity
Not shown Rebuild Kit Includes Items 2, 3, 6, 10, 11, 13, & 14 EKC62401C REF: Not shown
EKC62401C
