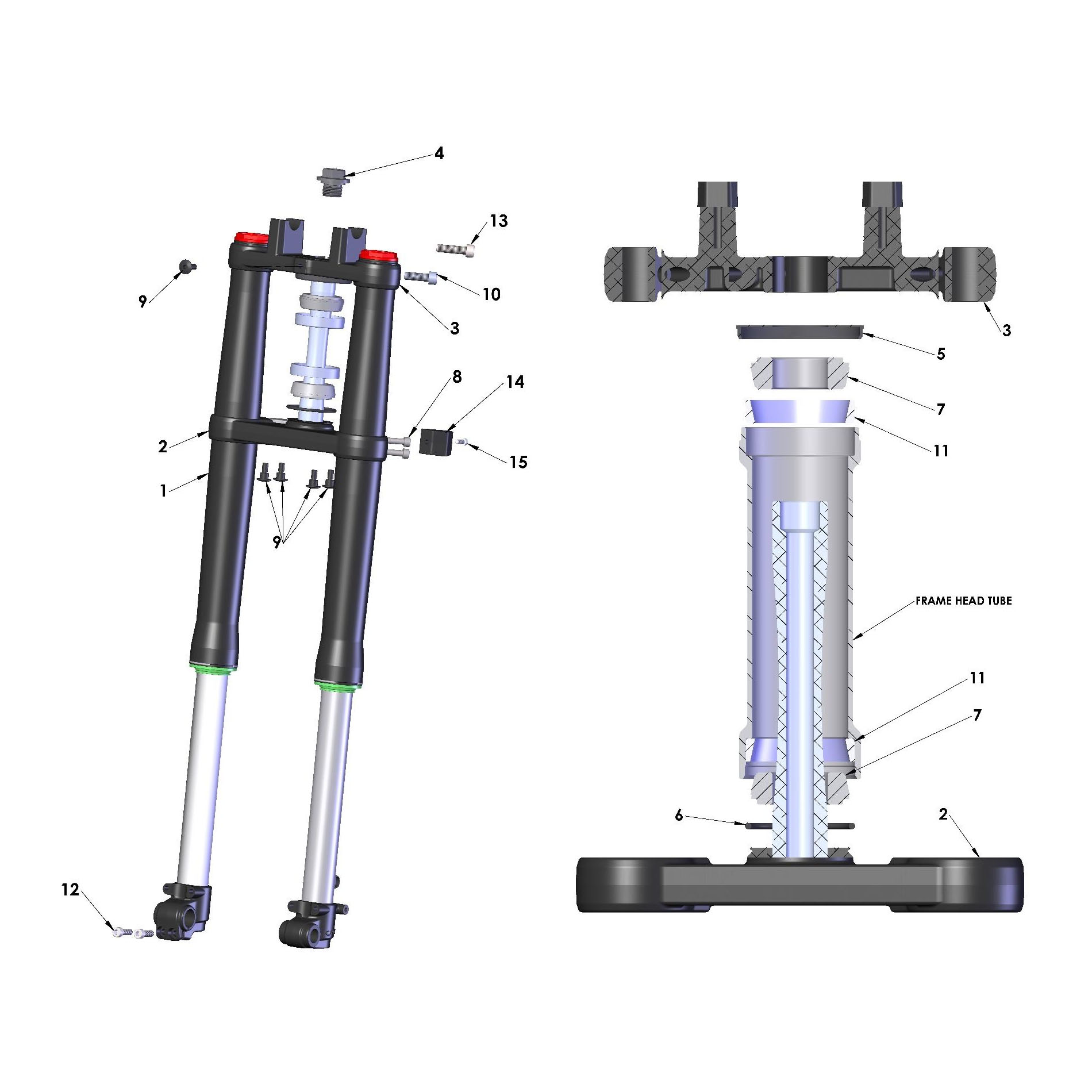

KACS2021FWE Fork Complete, Brake & Non-Brake Side quantity
1 Fork Complete, Brake & Non-Brake Side KACS2021FWE REF: 1
KACS2021FWE
FAMU0020BLK Triple Clamp Bottom Assy (Clamp & Stem) Black quantity
2 Triple Clamp Bottom Assy (Clamp & Stem) Black FAMU0020BLK REF: 2
FAMU0020BLK
FCMU0071BLK Triple Clamp Top - Black quantity
3 Triple Clamp Top - Black FCMU0071BLK REF: 3
FCMU0071BLK
FCMU0074 Bolt – Steering Stem quantity
4 Bolt – Steering Stem FCMU0074 REF: 4
FCMU0074
FCMU0079 Dust Cover (1 Req’d) quantity
5 Dust Cover (1 Req’d) FCMU0079 REF: 5
FCMU0079
FCMU0044 O-Ring (1 Req’d) quantity
6 O-Ring (1 Req’d) FCMU0044 REF: 6
FCMU0044
FCMU0004 Steering Head Bearing (2 Req’d) quantity
7 Steering Head Bearing (2 Req’d) FCMU0004 REF: 7
FCMU0004
HCBC0625 M6x25mm Socket Head Cap Screw (2 Req’d) quantity
8 M6x25mm Socket Head Cap Screw (2 Req’d) HCBC0625 REF: 8
HCBC0625
HCSP0610BLK Bolt - Fork Guard - Black (6 Req’d) quantity
9 Bolt - Fork Guard - Black (6 Req’d) HCSP0610BLK REF: 9
HCSP0610BLK
HCBC0825 M8 x 25mm Socket Head Cap Screw quantity
10 M8 x 25mm Socket Head Cap Screw HCBC0825 REF: 10
HCBC0825
FCMU0011 Race – Steering Stem Bearing (2 Req’d) quantity
11 Race – Steering Stem Bearing (2 Req’d) FCMU0011 REF: 11
FCMU0011
HCBC0620 M6x20mm Socket Head Cap Screw (2 req’d) quantity
12 M6x20mm Socket Head Cap Screw (2 req’d) HCBC0620 REF: 12
HCBC0620
HCBC0830 M8x30mm Socket Head Cap Screw (4 Req’d) quantity
13 M8x30mm Socket Head Cap Screw (4 Req’d) HCBC0830 REF: 13
HCBC0830
FCMU0175MP Steering Stop Bumper (2 Req’d) quantity
14 Steering Stop Bumper (2 Req’d) FCMU0175MP REF: 14
FCMU0175MP
HCBB1416 M4x16mm Button Head (2 Req’d) quantity
15 M4x16mm Button Head (2 Req’d) HCBB1416 REF: 15
HCBB1416
FKMU0008 Kit – Steering Stem Bearings, Races and Seals quantity
Accessory Kit – Steering Stem Bearings, Races and Seals FKMU0008 REF: Accessory
FKMU0008
MCMUTL44 Tool – Bearing and Seal Installer Assy quantity
Tool Tool – Bearing and Seal Installer Assy MCMUTL44 REF: Tool
MCMUTL44
