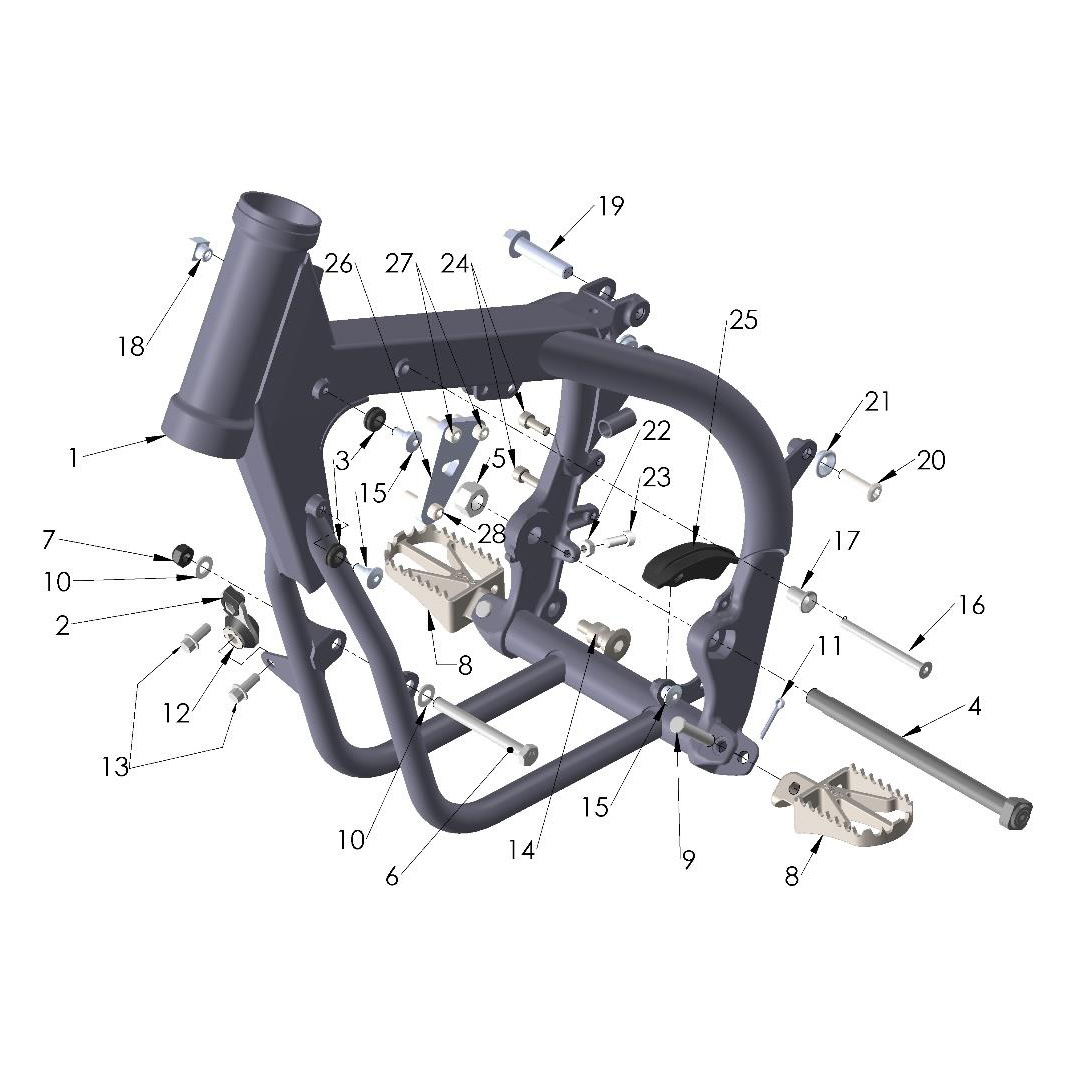

FACS2022 Frame – 2022 FWE quantity
1 Frame – 2022 FWE FACS2022 REF: 1
FACS2022
HCHA0003 Clip Nut – 6mm quantity
2 Clip Nut – 6mm HCHA0003 REF: 2
HCHA0003
MCMUGR12 Grommet – Radiator Mounting (4 Req’d) quantity
3 Grommet – Radiator Mounting (4 Req’d) MCMUGR12 REF: 3
MCMUGR12
GCMU0021 Bolt - Ti - Swingarm Pivot and Axle - CX50 quantity
4 Bolt - Ti - Swingarm Pivot and Axle - CX50 GCMU0021 REF: 4
GCMU0021
HCNL1201 M12 Swingarm Lock Nut quantity
5 M12 Swingarm Lock Nut HCNL1201 REF: 5
HCNL1201
HCBH0880 M8X80mm Hex Head Bolt quantity
6 M8X80mm Hex Head Bolt HCBH0880 REF: 6
HCBH0880
HCNL0801 8mm Locknut – Front Engine Mounts (2 Req’d) quantity
7 8mm Locknut – Front Engine Mounts (2 Req’d) HCNL0801 REF: 7
HCNL0801
TCMU0139 Footpegs (Pair) quantity
8 Footpegs (Pair) TCMU0139 REF: 8
TCMU0139
FCMU0031 Clevis Pin - Footpeg quantity
9 Clevis Pin - Footpeg FCMU0031 REF: 9
FCMU0031
HCWF0801 8mm Flat Washer quantity
10 8mm Flat Washer HCWF0801 REF: 10
HCWF0801
HCCP0008 Cotter Pin 1/8 x 3/4 quantity
11 Cotter Pin 1/8 x 3/4 HCCP0008 REF: 11
HCCP0008
XCMU0033 Isolation Mount quantity
12 Isolation Mount XCMU0033 REF: 12
XCMU0033
HCBF0616 M6x16mm Flange Head Bolt (2 Req’d) quantity
13 M6x16mm Flange Head Bolt (2 Req’d) HCBF0616 REF: 13
HCBF0616
BCMU0027 Brake Pedal Pivot Bolt quantity
14 Brake Pedal Pivot Bolt BCMU0027 REF: 14
BCMU0027
HCBC0601 M6x16mm Socket Head Cap Screw (2 Req’d) quantity
15 M6x16mm Socket Head Cap Screw (2 Req’d) HCBC0601 REF: 15
HCBC0601
TCC60019 Compression Limiting Spacer quantity
– Compression Limiting Spacer TCC60019 REF: Not Shown
TCC60019
HCFH0675 M6x75mm Flat Head quantity
16 M6x75mm Flat Head HCFH0675 REF: 16
HCFH0675
TCMU0047 Bushing - Fuel Tank quantity
17 Bushing - Fuel Tank TCMU0047 REF: 17
TCMU0047
TCMU0017 Front Tank Mount Bushing – Square Threaded quantity
18 Front Tank Mount Bushing – Square Threaded TCMU0017 REF: 18
TCMU0017
HCBF1040 M10x40mm Lower Shock Mount Bolt quantity
19 M10x40mm Lower Shock Mount Bolt HCBF1040 REF: 19
HCBF1040
HCSP0701 Sprocket Bolt – M7 quantity
20 Sprocket Bolt – M7 HCSP0701 REF: 20
HCSP0701
FCMU0109 Compression Limiter – Sub Frame quantity
21 Compression Limiter – Sub Frame FCMU0109 REF: 21
FCMU0109
HCNL0601 M6 Nylock Nut (2 Req’d) quantity
22 M6 Nylock Nut (2 Req’d) HCNL0601 REF: 22
HCNL0601
HCBC0625 M6x25mm Socket Head Cap Screw (2 Req’d) quantity
23 M6x25mm Socket Head Cap Screw (2 Req’d) HCBC0625 REF: 23
HCBC0625
HCBC0601 M6x16mm Socket Head Cap Screw (2 Req’d) quantity
24 M6x16mm Socket Head Cap Screw (2 Req’d) HCBC0601 REF: 24
HCBC0601
TCMU0044 Lower Chain Slide quantity
25 Lower Chain Slide TCMU0044 REF: 25
TCMU0044
FCCS0080 Bracket – Head Stay quantity
26 Bracket – Head Stay FCCS0080 REF: 26
FCCS0080
HCBC0601 M6x16mm Socket Head Cap Screw (2 Req’d) quantity
27 M6x16mm Socket Head Cap Screw (2 Req’d) HCBC0601 REF: 27
HCBC0601
HCBC0625 M6x25mm Socket Head Cap Screw (2 Req’d) quantity
28 M6x25mm Socket Head Cap Screw (2 Req’d) HCBC0625 REF: 28
HCBC0625
HCNL0601 M6 Nylock Nut (2 Req’d) quantity
29 M6 Nylock Nut (2 Req’d) HCNL0601 REF: 29
HCNL0601
TCC60012 Spring – Footpeg - Ultra Wide 07 (2 Req’d) quantity
Accessory Spring – Footpeg - Ultra Wide 07 (2 Req’d) TCC60012 REF: Accessory
