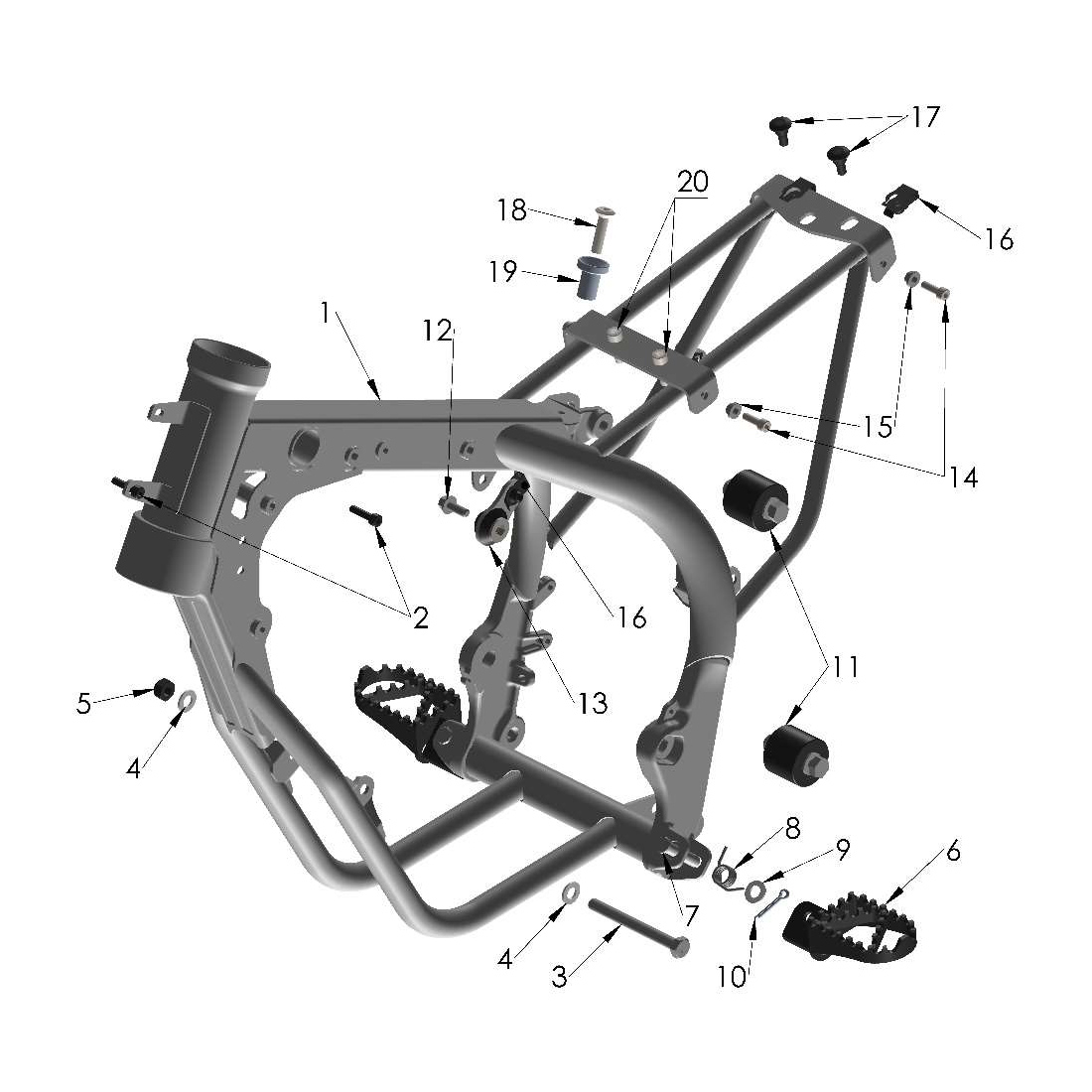

FACJ2025 Frame 2025 CX50JR quantity
1 Frame 2025 CX50JR FACJ2025 REF: 1
FACJ2025
HCBC0502 M5x20mm Socket Head Cap Screw (2 Req’d) quantity
2 M5x20mm Socket Head Cap Screw (2 Req’d) HCBC0502 REF: 2
HCBC0502
HCBH0880 M8X80mm Hex Head Bolt quantity
3 M8X80mm Hex Head Bolt HCBH0880 REF: 3
HCBH0880
HCWF0802 8mm Flat Washer quantity
4 8mm Flat Washer HCWF0802 REF: 4
HCWF0802
HCNL0801 8mm Locknut – Front Engine Mounts (2 Req’d) quantity
5 8mm Locknut – Front Engine Mounts (2 Req’d) HCNL0801 REF: 5
HCNL0801
TAMU0005 Footpegs (Pair) (Standard) quantity
6 Footpegs (Pair) (Standard) TAMU0005 REF: 6
TAMU0005
FCMU0031 Clevis Pin - Footpeg quantity
7 Clevis Pin - Footpeg FCMU0031 REF: 7
FCMU0031
TCMU0106 Footpeg Spring (Single Piece) quantity
8 Footpeg Spring (Single Piece) TCMU0106 REF: 8
TCMU0106
HCWF0802 8mm Flat Washer quantity
9 8mm Flat Washer HCWF0802 REF: 9
HCWF0802
HCCP0008 Cotter Pin 1/8 x 3/4 quantity
10 Cotter Pin 1/8 x 3/4 HCCP0008 REF: 10
HCCP0008
FCC60020 Chain Roller with Bolt, Bearings & Seals quantity
11 Chain Roller with Bolt, Bearings & Seals FCC60020 REF: 11
FCC60020
HCBF0616 M6x16mm Flange Head Bolt (2 Req’d) quantity
12 M6x16mm Flange Head Bolt (2 Req’d) HCBF0616 REF: 12
HCBF0616
XCMU0033 Isolation Mount quantity
13 Isolation Mount XCMU0033 REF: 13
XCMU0033
HCBC0516 M5x16mm Socket Head Cap Screw – Coil Mounting (2 Req’d) quantity
14 M5x16mm Socket Head Cap Screw – Coil Mounting (2 Req’d) HCBC0516 REF: 14
HCBC0516
TCC60017 Body Panel Washer 5mm (2 Req’d per Side) quantity
15 Body Panel Washer 5mm (2 Req’d per Side) TCC60017 REF: 15
TCC60017
HCHA0003 Clip Nut – 6mm quantity
16 Clip Nut – 6mm HCHA0003 REF: 16
HCHA0003
HCSP0610 Fork Guard Bolt – Front Number Plate Mount quantity
17 Fork Guard Bolt – Front Number Plate Mount HCSP0610 REF: 17
HCSP0610
HCSP0701 Sprocket Bolt – M7 quantity
18 Sprocket Bolt – M7 HCSP0701 REF: 18
HCSP0701
TCMU0068 Bushing – Rear Tank Mounting quantity
19 Bushing – Rear Tank Mounting TCMU0068 REF: 19
TCMU0068
HCBC0620 M6x20mm Socket Head Cap Screw (2 req’d) quantity
20 M6x20mm Socket Head Cap Screw (2 req’d) HCBC0620 REF: 20
HCBC0620
