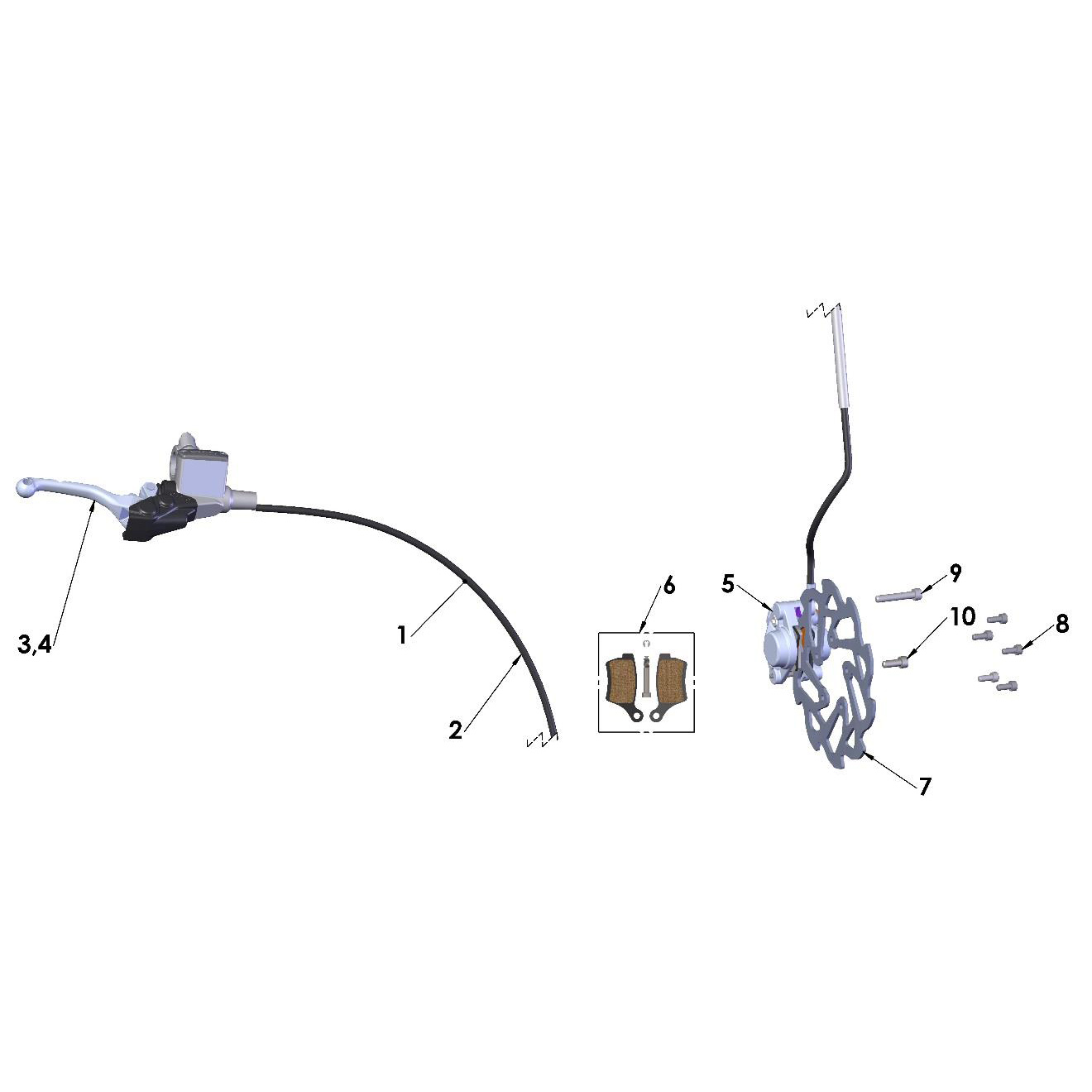

BACS0001 Brake Assy - Front Card - King FW - 2 Piston 11.0 quantity
1 Brake Assy - Front Card - King FW - 2 Piston 11.0 BACS0001 REF: 1
BACS0001
BCCS0003 Hose – Brake Front quantity
2 Hose – Brake Front BCCS0003 REF: 2
BCCS0003
BAMU0009 Lever Assembly quantity
3 Lever Assembly BAMU0009 REF: 3
BAMU0009
BAMU0006 Master Cylinder Assembly Complete w Lever quantity
4 Master Cylinder Assembly Complete w Lever BAMU0006 REF: 4
BAMU0006
BAMU0020 Caliper – Front – Card 2 Piston quantity
5 Caliper – Front – Card 2 Piston BAMU0020 REF: 5
BAMU0020
BKMU0009 Pad Set Organic w Bolt and Clip quantity
6 Pad Set Organic w Bolt and Clip BKMU0009 REF: 6
BKMU0009
BCMU0222 Brake Rotor quantity
7 Brake Rotor BCMU0222 REF: 7
BCMU0222
HCBC0514 M5x14mm Socket Head Cap Screw (5 Req’d) quantity
8 M5x14mm Socket Head Cap Screw (5 Req’d) HCBC0514 REF: 8
HCBC0514
HCBC0604 M6x35mm Socket Head Cap Screw quantity
9 M6x35mm Socket Head Cap Screw HCBC0604 REF: 9
HCBC0604
HCBC0602 M6x20mm Socket Head Cap Screw (2 Req’d) quantity
10 M6x20mm Socket Head Cap Screw (2 Req’d) HCBC0602 REF: 10
HCBC0602
BCMU0116 Cover – Mud Protection quantity
11 Cover – Mud Protection BCMU0116 REF: 11
BCMU0116
BKMU0003 Bleed Kit (Multiple Syringes, Fittings & Hose) quantity
Accessory Bleed Kit (Multiple Syringes, Fittings & Hose) BKMU0003 REF: Accessory
BKMU0003
BCMU0038 Spring - Brake Pad Return quantity
Accessory Spring - Brake Pad Return BCMU0038 REF: Accessory
BCMU0038
BKMU0006A Piston & Seal Kit – Card Caliper - Aluminum quantity
Accessory Piston & Seal Kit – Card Caliper - Aluminum BKMU0006A REF: Accessory
BKMU0006A
BKMU0008 Bleed Screw Kit – Card quantity
Accessory Bleed Screw Kit – Card BKMU0008 REF: Accessory
BKMU0008
BKMU0007 Banjo Bolt and Washer Kit – Card quantity
Accessory Banjo Bolt and Washer Kit – Card BKMU0007 REF: Accessory
BKMU0007
BCMU0014 Caliper Adjustment Shims 6mm ID quantity
Accessory Caliper Adjustment Shims 6mm ID BCMU0014 REF: Accessory
BCMU0014
BKC60008 Cap & Bladder Kit ZL150 (Cap, Bladder & (2) M3-0.5 X 6mm Long Phillips Screw) quantity
Accessory Cap & Bladder Kit ZL150 (Cap, Bladder & (2) M3-0.5 X 6mm Long Phillips Screw) BKC60008 REF: Accessory
BKC60008
BCC60058 Clamp – M/C ZL150 quantity
Accessory Clamp – M/C ZL150 BCC60058 REF: Accessory
BCC60058
HCBC0602 M6x20mm Socket Head Cap Screw (2 Req’d) quantity
Accessory M6x20mm Socket Head Cap Screw (2 Req’d) HCBC0602 REF: Accessory
HCBC0602
BCMU0060 Pivot Bolt quantity
Accessory Pivot Bolt BCMU0060 REF: Accessory
BCMU0060
BCC60017 Boot – Piston End Cover quantity
Accessory Boot – Piston End Cover BCC60017 REF: Accessory
BCC60017
BKC60015 Rebuild Kit – Master Cylinder ZL150 (Piston, Seals, Spring, Clip & Retaining Washer) quantity
Accessory Rebuild Kit – Master Cylinder ZL150 (Piston, Seals, Spring, Clip & Retaining Washer) BKC60015 REF: Accessory
BKC60015
HCSS0520 M5 X 20 Set Screw – Lever Position Adjustment quantity
Accessory M5 X 20 Set Screw – Lever Position Adjustment HCSS0520 REF: Accessory
HCSS0520
HCNJ0501 5mm Locknut quantity
Accessory 5mm Locknut HCNJ0501 REF: Accessory
HCNJ0501
CKC60005 Pivot Bolt Kit – Lever to Pivot Block (Male and Female Bolts) quantity
Accessory Pivot Bolt Kit – Lever to Pivot Block (Male and Female Bolts) CKC60005 REF: Accessory
CKC60005
HCSS0610 Set Screw – Preset quantity
Accessory Set Screw – Preset HCSS0610 REF: Accessory
HCSS0610
BCMU0059 Lever Only – Thin Formly quantity
Accessory Lever Only – Thin Formly BCMU0059 REF: Accessory
BCMU0059
CCC60026 Spring – Lever Return quantity
Accessory Spring – Lever Return CCC60026 REF: Accessory
CCC60026
CCC60025 Spacer – Spring Centering quantity
Accessory Spacer – Spring Centering CCC60025 REF: Accessory
CCC60025
