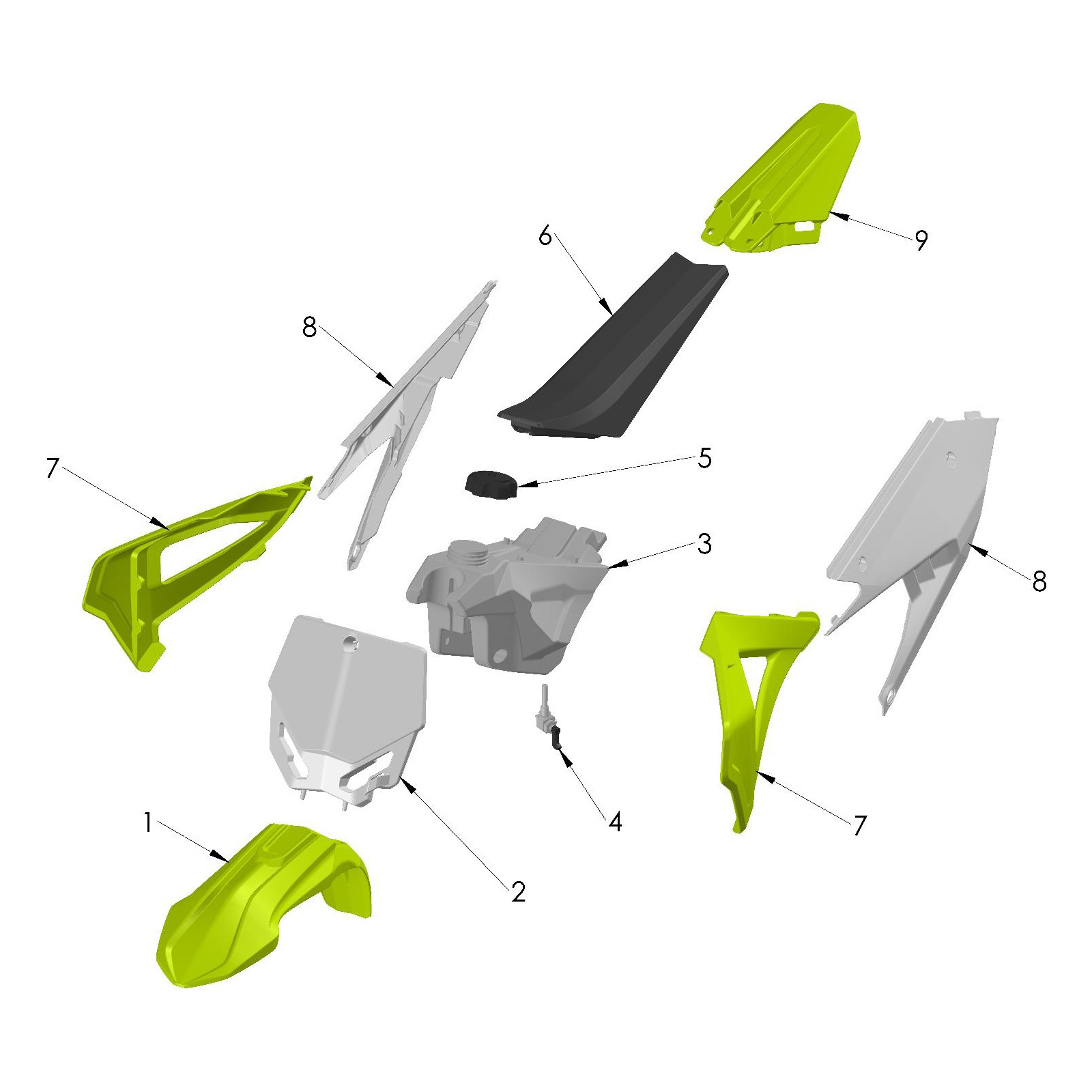

TCCS0009FXX Front Fender – Mega Flo Yellow quantity
+
1 Front Fender – Mega Flo Yellow TCCS0009FXX REF: 1
TCCS0009FXX
-
TCCS0009x Front Fender x – Denotes Color BLK, WHT, YEL, FLO quantity
+
1 Front Fender x – Denotes Color BLK, WHT, YEL, FLO TCCS0009x REF: 1
TCCS0009x
-
HCBF0616 M6x16mm Flange Head Bolt (2 Req’d) quantity
+
1A M6x16mm Flange Head Bolt (2 Req’d) HCBF0616 REF: 1A
HCBF0616
-
TCMU0041FXX Number Plate Front – Mega Flow Yellow quantity
+
2 Number Plate Front – Mega Flow Yellow TCMU0041FXX REF: 2
TCMU0041FXX
-
TCMU0041x Front Number Plate x – Denotes Color BLK, WHT, YEL quantity
+
2 Front Number Plate x – Denotes Color BLK, WHT, YEL TCMU0041x REF: 2
TCMU0041x
-
HCBF0616 M6x16mm Flange Head Bolt (2 Req’d) quantity
+
2A M6x16mm Flange Head Bolt (2 Req’d) HCBF0616 REF: 2A
HCBF0616
-
TCMU0042 Fuel Tank (No Petcock or Cap) quantity
+
3 Fuel Tank (No Petcock or Cap) TCMU0042 REF: 3
TCMU0042
-
TCMU0047 Bushing - Fuel Tank quantity
+
3A Bushing - Fuel Tank TCMU0047 REF: 3A
TCMU0047
-
TCMU0017 Front Tank Mount Bushing – Square Threaded quantity
+
3B Front Tank Mount Bushing – Square Threaded TCMU0017 REF: 3B
TCMU0017
-
TCC60029 Spacer – Seat Mount quantity
+
3C Spacer – Seat Mount TCC60029 REF: 3C
TCC60029
-
HCFH0620 M6x20mm Flat Head – Front Seat Mount quantity
+
3D M6x20mm Flat Head – Front Seat Mount HCFH0620 REF: 3D
HCFH0620
-
HCFH0675 M6x75mm Flat Head quantity
+
3E M6x75mm Flat Head HCFH0675 REF: 3E
HCFH0675
-
TCMU0151 Petcock quantity
+
4 Petcock TCMU0151 REF: 4
TCMU0151
-
TCHA0002 Cap – Fuel Tank quantity
+
5 Cap – Fuel Tank TCHA0002 REF: 5
TCHA0002
-
TCHA0003 Hose – Fuel Cap quantity
+
5A Hose – Fuel Cap TCHA0003 REF: 5A
TCHA0003
-
TAFW2024 Seat – Factory Works Edition – CX50 quantity
+
6 Seat – Factory Works Edition – CX50 TAFW2024 REF: 6
TAFW2024
-
TCFW0006 Cover – Seat – Factory Works Edition CX50 quantity
+
6A Cover – Seat – Factory Works Edition CX50 TCFW0006 REF: 6A
TCFW0006
-
TCMU0046BLK Seat Mount Spacer quantity
+
6B Seat Mount Spacer TCMU0046BLK REF: 6B
TCMU0046BLK
-
HCFH0650 M6x50mm Flat Head Screw quantity
+
6C M6x50mm Flat Head Screw HCFH0650 REF: 6C
HCFH0650
-
TCMU0043FXX Shroud Set – Mega Flo Yellow quantity
+
7 Shroud Set – Mega Flo Yellow TCMU0043FXX REF: 7
TCMU0043FXX
-
TCMU0043x Shroud x – Denotes Color BLK, WHT, YEL, FLO quantity
+
7 Shroud x – Denotes Color BLK, WHT, YEL, FLO TCMU0043x REF: 7
TCMU0043x
-
HCSP0004 Screw – Plascrew - Aluminum quantity
+
7A Screw – Plascrew - Aluminum HCSP0004 REF: 7A
HCSP0004
-
TCCS0011WHT Number Plate Pair – White quantity
+
8 Number Plate Pair – White TCCS0011WHT REF: 8
TCCS0011WHT
-
TCCS0011x Number Plate Pair x – Denotes Color BLK, WHT, YEL quantity
+
8 Number Plate Pair x – Denotes Color BLK, WHT, YEL TCCS0011x REF: 8
TCCS0011x
-
HCBC0502 M5x20mm Socket Head Cap Screw (2 Req’d) quantity
+
8A M5x20mm Socket Head Cap Screw (2 Req’d) HCBC0502 REF: 8A
HCBC0502
-
TCC60017 Body Panel Washer 5mm (2 Req’d per Side) quantity
+
8B Body Panel Washer 5mm (2 Req’d per Side) TCC60017 REF: 8B
TCC60017
-
HCCN0000 5mm Extruded “U” Nut – Coil Mounting (2 Req’d) quantity
+
8C 5mm Extruded “U” Nut – Coil Mounting (2 Req’d) HCCN0000 REF: 8C
HCCN0000
-
TCMU0045FXX Fender – Rear – Mega Flo Yellow quantity
+
9 Fender – Rear – Mega Flo Yellow TCMU0045FXX REF: 9
TCMU0045FXX
-
TCMU0045x Rear Fender x – Denotes Color BLK, WHT, YEL, FLO quantity
+
9 Rear Fender x – Denotes Color BLK, WHT, YEL, FLO TCMU0045x REF: 9
TCMU0045x
-
HCSP0610BLK Bolt - Fork Guard - Black (6 Req’d) quantity
+
9A Bolt - Fork Guard - Black (6 Req’d) HCSP0610BLK REF: 9A
HCSP0610BLK
-
HCHA0003 Clip Nut – 6mm quantity
+
9B Clip Nut – 6mm HCHA0003 REF: 9B
HCHA0003
-
TCFW2024 Graphic Kit – CX50 FWE quantity
+
Accessory Graphic Kit – CX50 FWE TCFW2024 REF: Accessory
TCFW2024
-
TKFW2021 Bodywork Kit – FWE – Mega Flo Plastic quantity
+
Accessory Bodywork Kit – FWE – Mega Flo Plastic TKFW2021 REF: Accessory
TKFW2021
-
TKFW2021FXX Bodywork Kit – FWE – All FXX Plastic quantity
+
Accessory Bodywork Kit – FWE – All FXX Plastic TKFW2021FXX REF: Accessory
TKFW2021FXX
-
TKFW2021BLK Bodywork Kit – FWE – Mega Flo Plastic Black quantity
+
Accessory Bodywork Kit – FWE – Mega Flo Plastic Black TKFW2021BLK REF: Accessory
TKFW2021BLK
-
TKFW2021WHT Bodywork Kit – FWE – Mega Flo Plastic White quantity
+
Accessory Bodywork Kit – FWE – Mega Flo Plastic White TKFW2021WHT REF: Accessory
TKFW2021WHT
