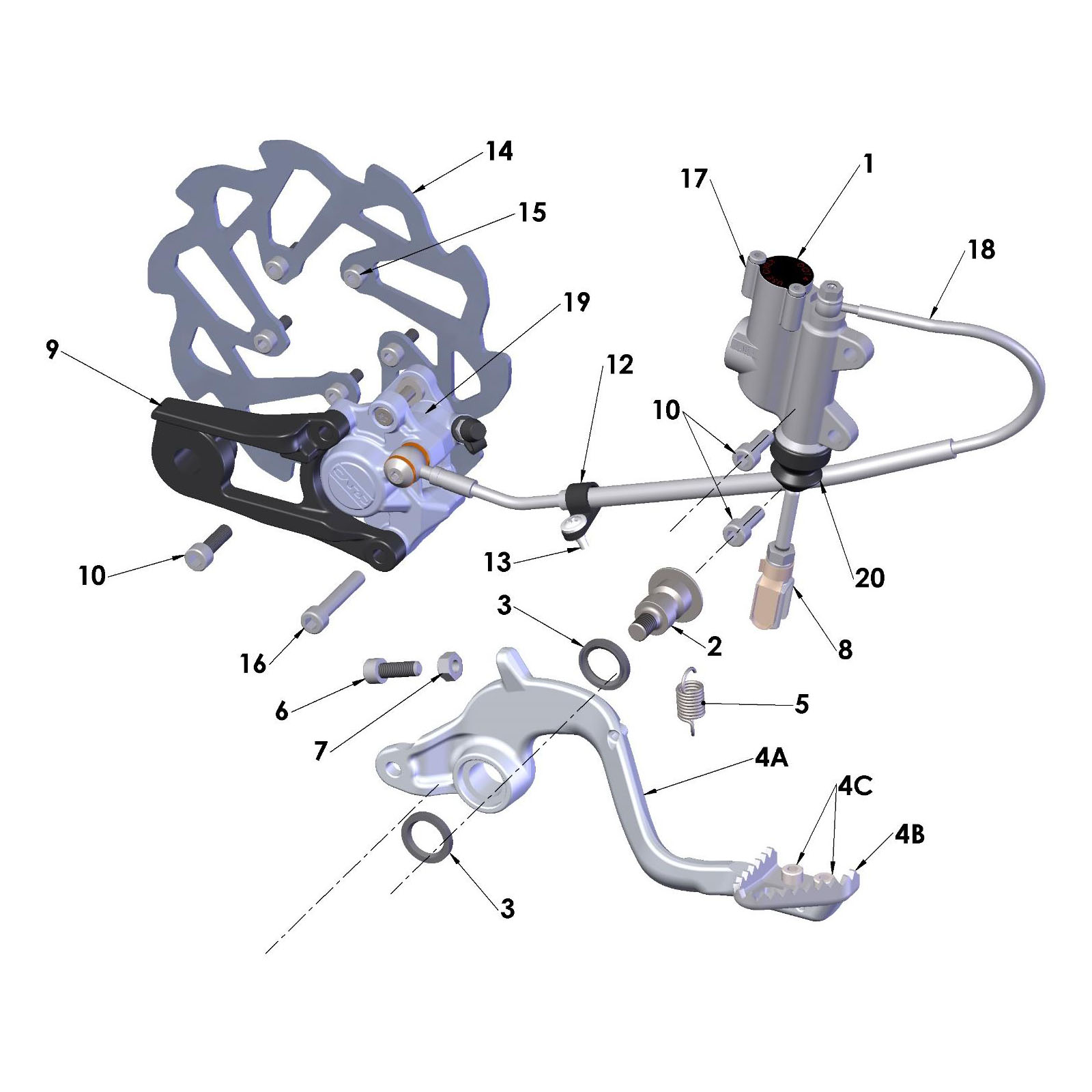

BAMU0003 Brake System – Rear (M/C-Line-Caliper) quantity
1 Brake System – Rear (M/C-Line-Caliper) BAMU0003 REF: 1
BAMU0003
BCMU0027 Brake Pedal Pivot Bolt quantity
2 Brake Pedal Pivot Bolt BCMU0027 REF: 2
BCMU0027
BCMU0501 Seal – Brake Pedal (2 Req’d) quantity
3 Seal – Brake Pedal (2 Req’d) BCMU0501 REF: 3
BCMU0501
BCMU0062 Brake Pedal – Assembly 50cc – with Toe Piece quantity
4A Brake Pedal – Assembly 50cc – with Toe Piece BCMU0062 REF: 4A
BCMU0062
BCMU0023T Toe Piece quantity
4B Toe Piece BCMU0023T REF: 4B
BCMU0023T
HCBC0501 M5x12mm Socket Head Cap Screw quantity
4C M5x12mm Socket Head Cap Screw HCBC0501 REF: 4C
HCBC0501
BCMUSP01 Brake Return Spring quantity
5 Brake Return Spring BCMUSP01 REF: 5
BCMUSP01
HCBC0625 M6x25mm Socket Head Cap Screw (2 Req’d) quantity
6 M6x25mm Socket Head Cap Screw (2 Req’d) HCBC0625 REF: 6
HCBC0625
HCNS0601 M6 Nut quantity
7 M6 Nut HCNS0601 REF: 7
HCNS0601
BAC60004 Push Rod, Rear Brake quantity
8 Push Rod, Rear Brake BAC60004 REF: 8
BAC60004
BCMU0045BLK Brake Carrier – Card 2 Piston – CX50 – Black quantity
9 Brake Carrier – Card 2 Piston – CX50 – Black BCMU0045BLK REF: 9
BCMU0045BLK
HCBC0602 M6x20mm Socket Head Cap Screw (2 Req’d) quantity
10 M6x20mm Socket Head Cap Screw (2 Req’d) HCBC0602 REF: 10
HCBC0602
HCCC0000 Brake Hose Clamp quantity
12 Brake Hose Clamp HCCC0000 REF: 12
HCCC0000
HCPP0832 Brake Hose Clamp Fastener quantity
13 Brake Hose Clamp Fastener HCPP0832 REF: 13
HCPP0832
BCMU0222 Brake Rotor quantity
14 Brake Rotor BCMU0222 REF: 14
BCMU0222
HCBC0514 M5x14mm Socket Head Cap Screw (5 Req’d) quantity
15 M5x14mm Socket Head Cap Screw (5 Req’d) HCBC0514 REF: 15
HCBC0514
HCBF0635 M6x35mm Socket Head Cap Screw quantity
16 M6x35mm Socket Head Cap Screw HCBF0635 REF: 16
HCBF0635
BAC60015 Master Cylinder - Rear quantity
17 Master Cylinder - Rear BAC60015 REF: 17
BAC60015
BCMU0047 Replacement Brake Hose quantity
18 Replacement Brake Hose BCMU0047 REF: 18
BCMU0047
BAMU0010A Caliper Assembly – Rear Brake – Card 2 Piston - Alum quantity
19 Caliper Assembly – Rear Brake – Card 2 Piston - Alum BAMU0010A REF: 19
BAMU0010A
BCMU0022 Brake – Rubber Cap quantity
20 Brake – Rubber Cap BCMU0022 REF: 20
BCMU0022
BKMU0009 Pad Set Organic w Bolt and Clip quantity
Accessory Pad Set Organic w Bolt and Clip BKMU0009 REF: Accessory
BKMU0009
BCMU0038 Spring - Brake Pad Return quantity
Accessory Spring - Brake Pad Return BCMU0038 REF: Accessory
BCMU0038
BKMU0006A Piston & Seal Kit – Card Caliper - Aluminum quantity
Accessory Piston & Seal Kit – Card Caliper - Aluminum BKMU0006A REF: Accessory
BKMU0006A
BKMU0008 Bleed Screw Kit – Card quantity
Accessory Bleed Screw Kit – Card BKMU0008 REF: Accessory
BKMU0008
BCC60034 Rubber Cap Only - Bleed Screw quantity
Accessory Rubber Cap Only - Bleed Screw BCC60034 REF: Accessory
BCC60034
BCKG0016 Cap & Seal Kit – Master Cylinder quantity
Accessory Cap & Seal Kit – Master Cylinder BCKG0016 REF: Accessory
BCKG0016
BCKG0015 Rebuild Kit – Master Cylinder – Formula Ø11 TSB1222 quantity
Accessory Rebuild Kit – Master Cylinder – Formula Ø11 TSB1222 BCKG0015 REF: Accessory
BCKG0015
BKC60009 Rebuild Kit – Master Cylinder – ZL Ø12.7 TSB1222 quantity
– Rebuild Kit – Master Cylinder – ZL Ø12.7 TSB1222 BKC60009 REF: Not Shown
BKC60009
BKMU0011 Rebuild Kit – Master Cylinder – Card Ø11 TSB1222 quantity
– Rebuild Kit – Master Cylinder – Card Ø11 TSB1222 BKMU0011 REF: Not Shown
BKMU0011
BKMU0007 Banjo Bolt and Washer Kit – Card quantity
Accessory Banjo Bolt and Washer Kit – Card BKMU0007 REF: Accessory
BKMU0007
BCMU0014 Caliper Adjustment Shims 6mm ID quantity
Accessory Caliper Adjustment Shims 6mm ID BCMU0014 REF: Accessory
BCMU0014
BKMU0003 Bleed Kit (Multiple Syringes, Fittings & Hose) quantity
Tool Bleed Kit (Multiple Syringes, Fittings & Hose) BKMU0003 REF: Tool
BKMU0003
