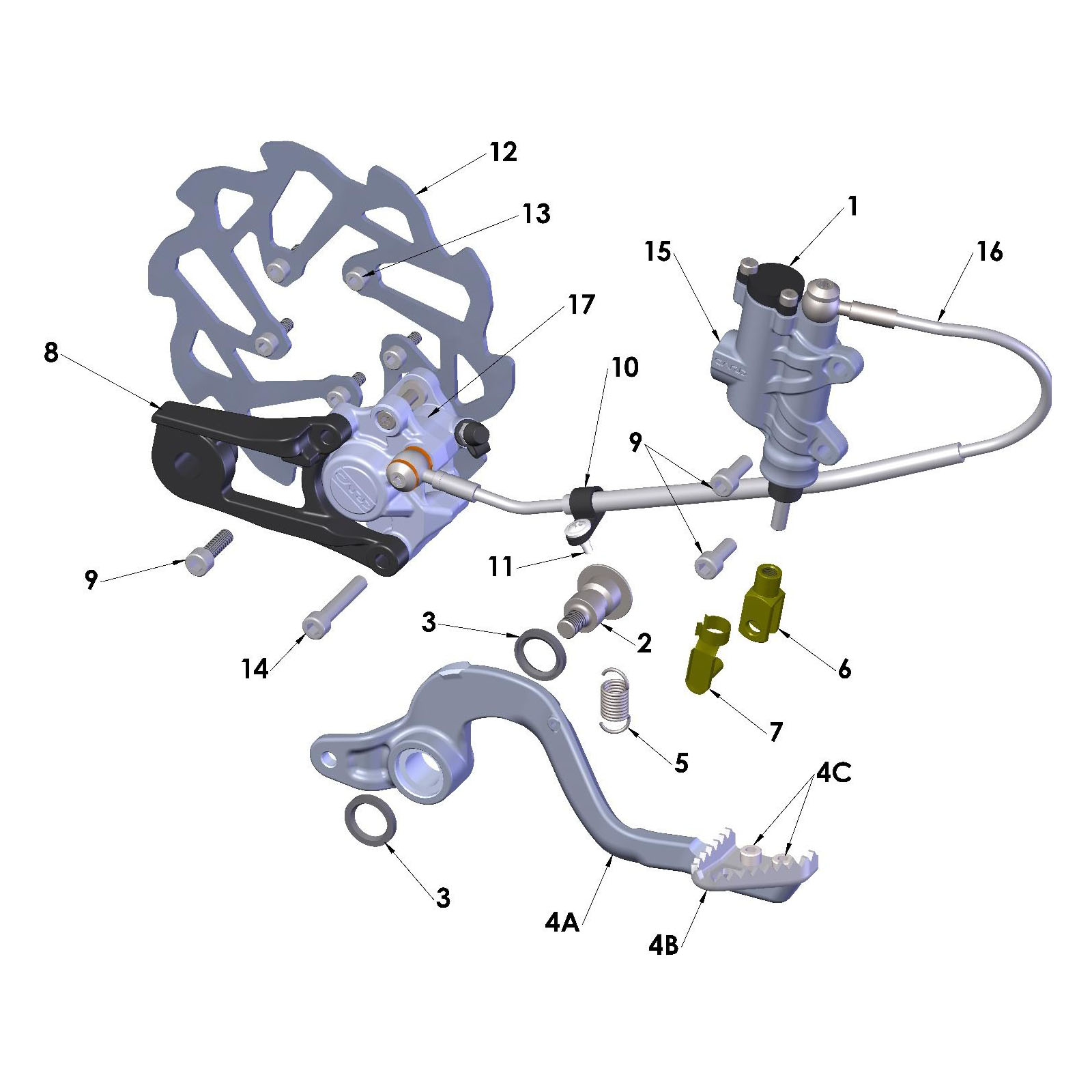

BACS0002 Brake System – Rear (M/C-Line-Caliper) quantity
1 Brake System – Rear (M/C-Line-Caliper) BACS0002 REF: 1
BACS0002
BCMU0027 Brake Pedal Pivot Bolt quantity
2 Brake Pedal Pivot Bolt BCMU0027 REF: 2
BCMU0027
BCMU0501 Seal – Brake Pedal (2 Req’d) quantity
3 Seal – Brake Pedal (2 Req’d) BCMU0501 REF: 3
BCMU0501
BCMU0069 Brake Pedal – Assembly 50cc – With Toe Piece quantity
4A Brake Pedal – Assembly 50cc – With Toe Piece BCMU0069 REF: 4A
BCMU0069
BCMU0023T Toe Piece quantity
4B Toe Piece BCMU0023T REF: 4B
BCMU0023T
HCBC0512 M5x12mm Socket Head Cap Screw quantity
4C M5x12mm Socket Head Cap Screw HCBC0512 REF: 4C
HCBC0512
BCMUSP01 Brake Return Spring quantity
5 Brake Return Spring BCMUSP01 REF: 5
BCMUSP01
BCMU0015A Brake Clevis quantity
6 Brake Clevis BCMU0015A REF: 6
BCMU0015A
BCMU0015B Brake Retaining Spring Pin quantity
7 Brake Retaining Spring Pin BCMU0015B REF: 7
BCMU0015B
BCMU0045BLK Brake Carrier – Card 2 Piston – CX50 – Black quantity
8 Brake Carrier – Card 2 Piston – CX50 – Black BCMU0045BLK REF: 8
BCMU0045BLK
HCBC0620 M6x20mm Socket Head Cap Screw (2 req’d) quantity
9 M6x20mm Socket Head Cap Screw (2 req’d) HCBC0620 REF: 9
HCBC0620
HCCC0000 Brake Hose Clamp quantity
10 Brake Hose Clamp HCCC0000 REF: 10
HCCC0000
HCPP0832 Brake Hose Clamp Fastener quantity
11 Brake Hose Clamp Fastener HCPP0832 REF: 11
HCPP0832
BCMU0222 Brake Rotor quantity
12 Brake Rotor BCMU0222 REF: 12
BCMU0222
HCBC0514 M5x14mm Socket Head Cap Screw (5 Req’d) quantity
13 M5x14mm Socket Head Cap Screw (5 Req’d) HCBC0514 REF: 13
HCBC0514
HCBF0635 M6x35mm Socket Head Cap Screw quantity
14 M6x35mm Socket Head Cap Screw HCBF0635 REF: 14
HCBF0635
BAMU0014 Master Cylinder CX65 11mm Formula quantity
15 Master Cylinder CX65 11mm Formula BAMU0014 REF: 15
BAMU0014
BCMU0047 Replacement Brake Hose quantity
16 Replacement Brake Hose BCMU0047 REF: 16
BCMU0047
BAMU0010A Caliper Assembly – Rear Brake – Card 2 Piston - Alum quantity
17 Caliper Assembly – Rear Brake – Card 2 Piston - Alum BAMU0010A REF: 17
BAMU0010A
BAMU0015 Brake Snake quantity
18 Brake Snake BAMU0015 REF: 18
BAMU0015
BKMU0009 Pad Set Organic w Bolt and Clip quantity
Accessory Pad Set Organic w Bolt and Clip BKMU0009 REF: Accessory
BKMU0009
BCMU0038 Spring - Brake Pad Return quantity
Accessory Spring - Brake Pad Return BCMU0038 REF: Accessory
BCMU0038
BKMU0006 Piston & Seal Kit – Card Caliper quantity
Accessory Piston & Seal Kit – Card Caliper BKMU0006 REF: Accessory
BKMU0006
BKMU0008 Bleed Screw Kit – Card quantity
Accessory Bleed Screw Kit – Card BKMU0008 REF: Accessory
BKMU0008
BCC60034 Rubber Cap Only - Bleed Screw quantity
Accessory Rubber Cap Only - Bleed Screw BCC60034 REF: Accessory
BCC60034
BKMU0013 Cap & Diaphragm Kit – Master Cylinder quantity
Accessory Cap & Diaphragm Kit – Master Cylinder BKMU0013 REF: Accessory
BKMU0013
BKMU0014 Rebuild Kit – Rear Master Cylinder 2024 – Captured quantity
Accessory Rebuild Kit – Rear Master Cylinder 2024 – Captured BKMU0014 REF: Accessory
BKMU0014
BKMU0007 Banjo Bolt and Washer Kit – Card quantity
Accessory Banjo Bolt and Washer Kit – Card BKMU0007 REF: Accessory
BKMU0007
BCMU0014 Caliper Adjustment Shims 6mm ID quantity
Accessory Caliper Adjustment Shims 6mm ID BCMU0014 REF: Accessory
BCMU0014
BKMU0003 Bleed Kit (Multiple Syringes, Fittings & Hose) quantity
Tool Bleed Kit (Multiple Syringes, Fittings & Hose) BKMU0003 REF: Tool
BKMU0003
