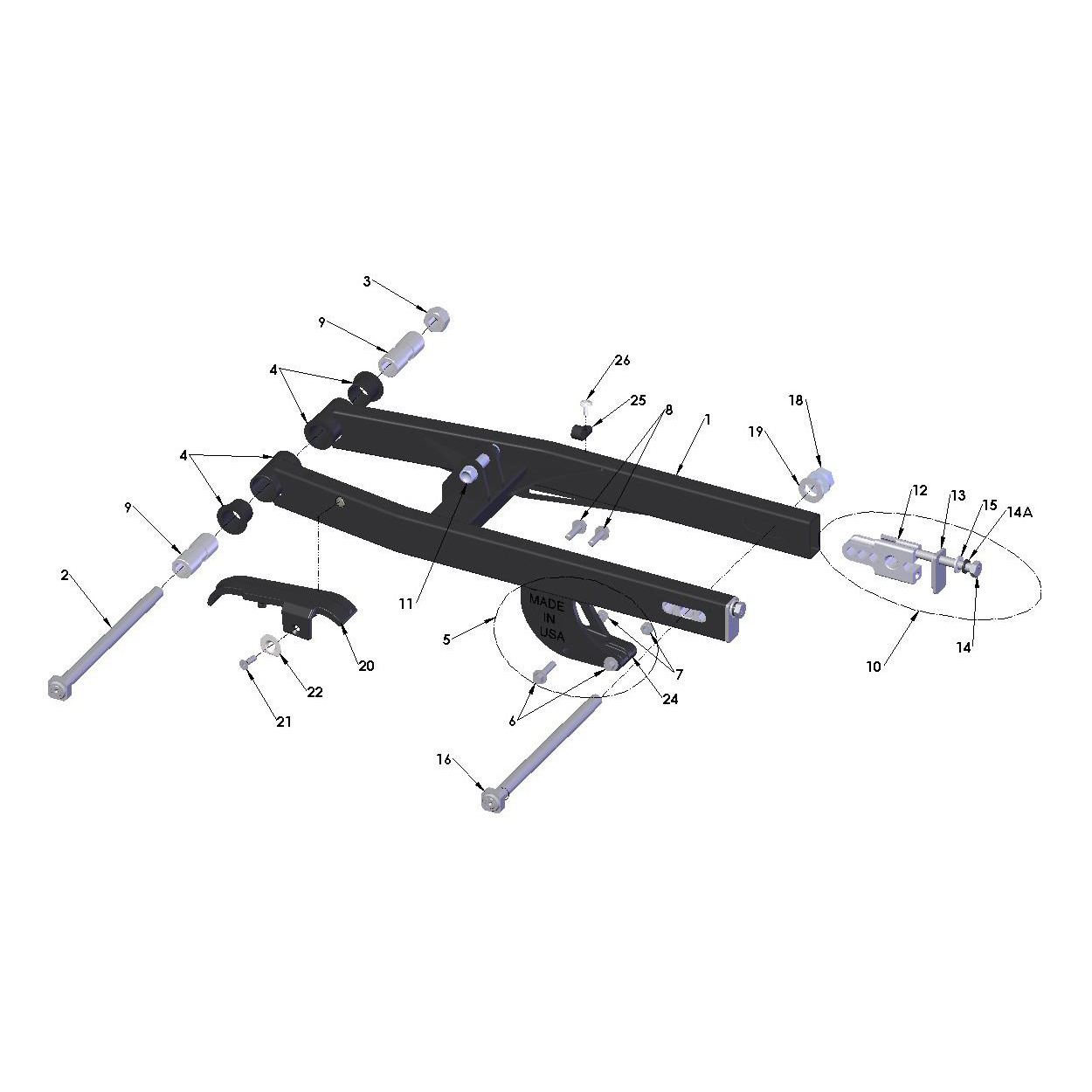

GACS2021 Swingarm quantity
+
1 Swingarm GACS2021 REF: 1
GACS2021
-
GCMU0022 Bolt – Swingarm Pivot – CX50 quantity
+
2 Bolt – Swingarm Pivot – CX50 GCMU0022 REF: 2
GCMU0022
-
HCNL1201 M12 Swingarm Lock Nut quantity
+
3 M12 Swingarm Lock Nut HCNL1201 REF: 3
HCNL1201
-
GCMU0001 Swingarm Bushing (4 Req’d) quantity
+
4 Swingarm Bushing (4 Req’d) GCMU0001 REF: 4
GCMU0001
-
PAKG0001 Chain Guide Assembly Complete quantity
+
5 Chain Guide Assembly Complete PAKG0001 REF: 5
PAKG0001
-
HCBF0630 M6x30mm Flange Head Bolt (2 Req’d) quantity
+
6 M6x30mm Flange Head Bolt (2 Req’d) HCBF0630 REF: 6
HCBF0630
-
HCNL0601 M6 Nylock Nut (2 Req’d) quantity
+
7 M6 Nylock Nut (2 Req’d) HCNL0601 REF: 7
HCNL0601
-
HCBF0620 M6x20 Flange Head Bolt quantity
+
8 M6x20 Flange Head Bolt HCBF0620 REF: 8
HCBF0620
-
GCCS0015 Swingarm Pivot Tube Spacer 2021 (2 Req’d) quantity
+
9 Swingarm Pivot Tube Spacer 2021 (2 Req’d) GCCS0015 REF: 9
GCCS0015
-
FAMU0005 Wheel Pull Assembly (Block, Cap, Bolt and Washer) quantity
+
10 Wheel Pull Assembly (Block, Cap, Bolt and Washer) FAMU0005 REF: 10
FAMU0005
-
HCBF1039 M10x40mm Flange Head Bolt quantity
+
11 M10x40mm Flange Head Bolt HCBF1039 REF: 11
HCBF1039
-
FCMU0203 Wheel Pull quantity
+
12 Wheel Pull FCMU0203 REF: 12
FCMU0203
-
FCMU0202 Wheel Pull Endcap quantity
+
13 Wheel Pull Endcap FCMU0202 REF: 13
FCMU0202
-
HCBH0810 M8X65mm Wheel Pull Bolt quantity
+
14 M8X65mm Wheel Pull Bolt HCBH0810 REF: 14
HCBH0810
-
HCWL0801 8mm Lock Washer quantity
+
14A 8mm Lock Washer HCWL0801 REF: 14A
HCWL0801
-
HCWF0801 8mm Flat Washer quantity
+
15 8mm Flat Washer HCWF0801 REF: 15
HCWF0801
-
WCMU0016 Bolt – Axle – CX50 quantity
+
16 Bolt – Axle – CX50 WCMU0016 REF: 16
WCMU0016
-
WCMU0038 Nut - 12mm Acorn - Alum quantity
+
18 Nut - 12mm Acorn - Alum WCMU0038 REF: 18
WCMU0038
-
GCMU0041 Swingarm Chain Guard - CX50 - with Mohawk and Foot quantity
+
20 Swingarm Chain Guard - CX50 - with Mohawk and Foot GCMU0041 REF: 20
GCMU0041
-
HCFH0516 Flat Head Screw quantity
+
21 Flat Head Screw HCFH0516 REF: 21
HCFH0516
-
GCMU0038 Washer - Special quantity
+
22 Washer - Special GCMU0038 REF: 22
GCMU0038
-
HCNL0501 Lock Nut 5mm quantity
+
23 Lock Nut 5mm HCNL0501 REF: 23
HCNL0501
-
PCMU0060MP Chain Guide - Combined Slider Bottom and Inside quantity
+
24 Chain Guide - Combined Slider Bottom and Inside PCMU0060MP REF: 24
PCMU0060MP
-
HCCC0006 Clamp - Brake Hose quantity
+
25 Clamp - Brake Hose HCCC0006 REF: 25
HCCC0006
-
HCPP0832 Brake Hose Clamp Fastener quantity
+
26 Brake Hose Clamp Fastener HCPP0832 REF: 26
HCPP0832
