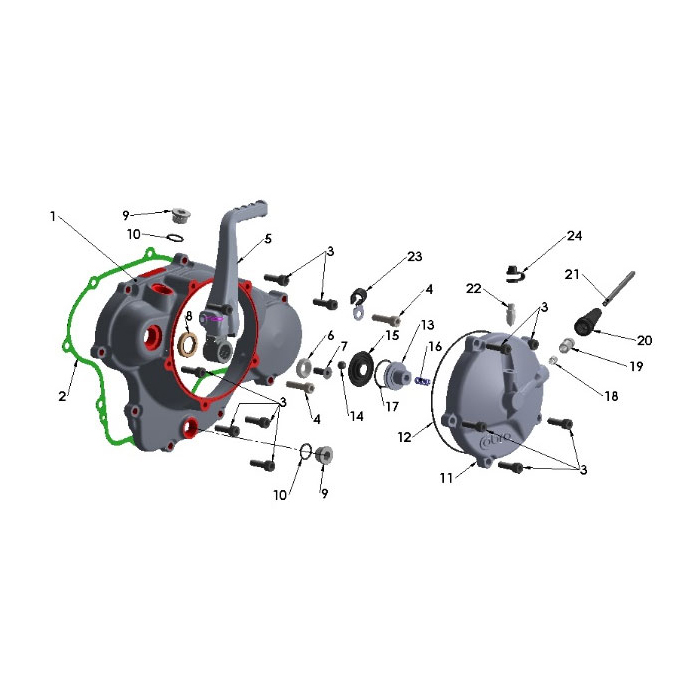

ECC60239 Cover – Clutch quantity
+
1 Cover – Clutch ECC60239 REF: 1
ECC60239
-
ZCC60016 Gasket – Clutch Cover quantity
+
2 Gasket – Clutch Cover ZCC60016 REF: 2
ZCC60016
-
HCBC0620 M6x20mm Socket Head Cap Screw (2 req’d) quantity
+
3 M6x20mm Socket Head Cap Screw (2 req’d) HCBC0620 REF: 3
HCBC0620
-
HCBC0625 M6x25mm Socket Head Cap Screw (2 Req’d) quantity
+
4 M6x25mm Socket Head Cap Screw (2 Req’d) HCBC0625 REF: 4
HCBC0625
-
EAMU0011 Kick Lever quantity
+
5 Kick Lever EAMU0011 REF: 5
EAMU0011
-
ECMU0250 Washer – Kick Lever Mounting quantity
+
6 Washer – Kick Lever Mounting ECMU0250 REF: 6
ECMU0250
-
HCFH0616 M6x16mm Flange Head Bolt quantity
+
7 M6x16mm Flange Head Bolt HCFH0616 REF: 7
HCFH0616
-
ECDC0078 Seal - Kickshaft quantity
+
8 Seal - Kickshaft ECDC0078 REF: 8
ECDC0078
-
ECMU0272 Oil Fill Plug, Venom quantity
+
9 Oil Fill Plug, Venom ECMU0272 REF: 9
ECMU0272
-
ZCMUB014 O’Ring – Oil Fill Plug quantity
+
10 O’Ring – Oil Fill Plug ZCMUB014 REF: 10
ZCMUB014
-
ECC60179 Cap – Clutch w/Slave Cylinder quantity
+
11 Cap – Clutch w/Slave Cylinder ECC60179 REF: 11
ECC60179
-
ZCC60013 O-Ring – Clutch Cap quantity
+
12 O-Ring – Clutch Cap ZCC60013 REF: 12
ZCC60013
-
CCC60005 Piston – Clutch Slave Cylinder quantity
+
13 Piston – Clutch Slave Cylinder CCC60005 REF: 13
CCC60005
-
CCEX0009 Ball 5/16`` Clutch & Fuel Cap quantity
+
14 Ball 5/16`` Clutch & Fuel Cap CCEX0009 REF: 14
CCEX0009
-
CCC60007 Bellows – Clutch Slave quantity
+
15 Bellows – Clutch Slave CCC60007 REF: 15
CCC60007
-
CCC60006 Spring – Slave Return quantity
+
16 Spring – Slave Return CCC60006 REF: 16
CCC60006
-
ZCMUOR35 O-Ring – Slave Piston – Mineral Oil quantity
+
17 O-Ring – Slave Piston – Mineral Oil ZCMUOR35 REF: 17
ZCMUOR35
-
BCMU0017 Ferrule – Compression Fitting quantity
+
18 Ferrule – Compression Fitting BCMU0017 REF: 18
BCMU0017
-
BCMU0020 Fitting – Threaded Clutch Line End quantity
+
19 Fitting – Threaded Clutch Line End BCMU0020 REF: 19
BCMU0020
-
BCMU0021 Cover – For Sleeve Nut quantity
+
20 Cover – For Sleeve Nut BCMU0021 REF: 20
BCMU0021
-
CCC60040 Line – Clutch Replacement quantity
+
21 Line – Clutch Replacement CCC60040 REF: 21
CCC60040
-
BCMU0018 Fitting – Bleed, Clutch Line quantity
+
22 Fitting – Bleed, Clutch Line BCMU0018 REF: 22
BCMU0018
-
CCC60030 Clamp – Clutch Line quantity
+
23 Clamp – Clutch Line CCC60030 REF: 23
CCC60030
-
BCC60034 Rubber Cap Only - Bleed Screw quantity
+
24 Rubber Cap Only - Bleed Screw BCC60034 REF: 24
BCC60034
-
EKMU0002 Kickstart Pivot Kit Spring-Ball-Screw quantity
+
Accessory Kickstart Pivot Kit Spring-Ball-Screw EKMU0002 REF: Accessory
EKMU0002
