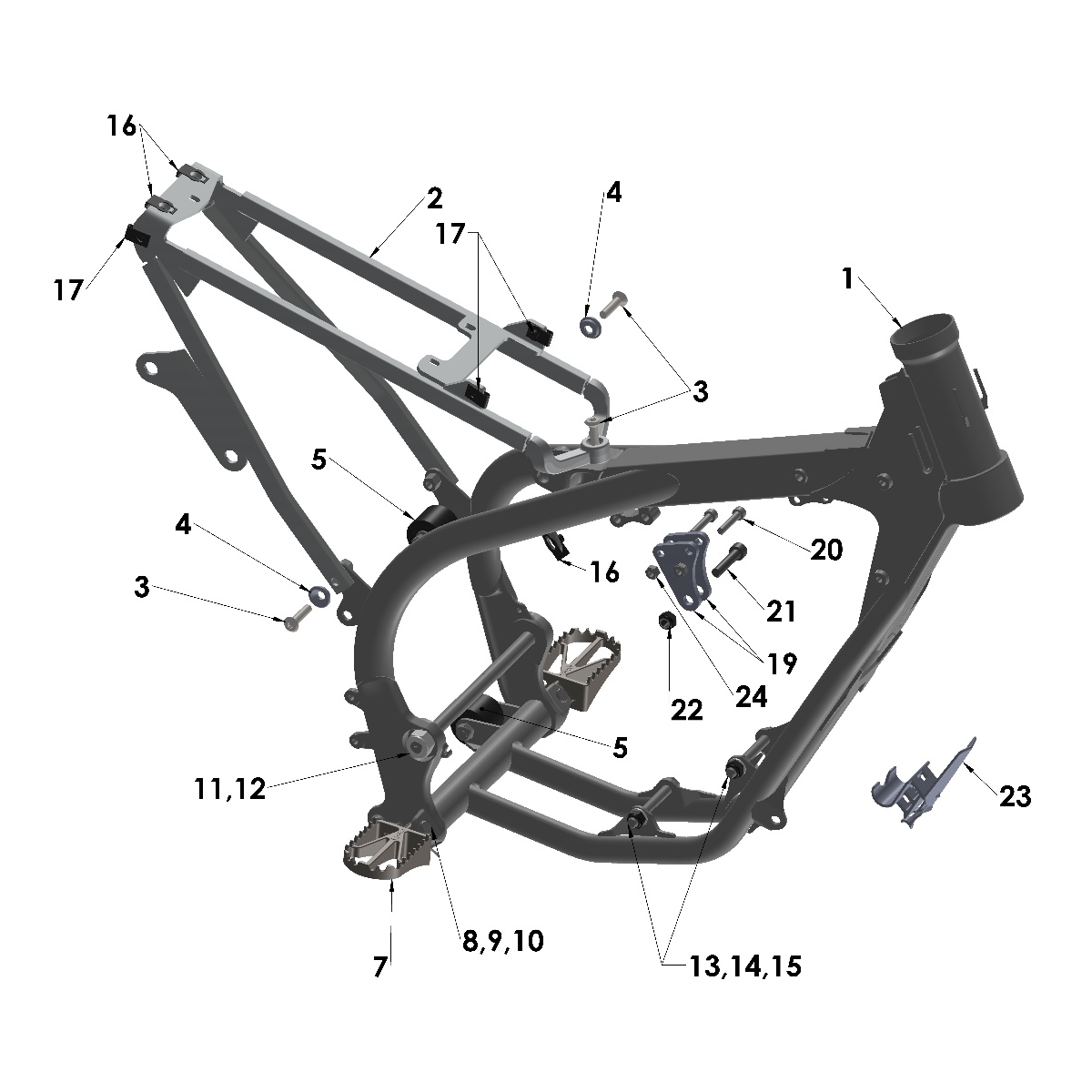

FAC62024 Frame Welded Assembly – 2022 quantity
+
1 Frame Welded Assembly – 2022 FAC62024 REF: 1
FAC62024
-
FAC60027 Subframe CX65 - 2022 quantity
+
2 Subframe CX65 - 2022 FAC60027 REF: 2
FAC60027
-
HCSP0701 Sprocket Bolt – M7 quantity
+
3 Sprocket Bolt – M7 HCSP0701 REF: 3
HCSP0701
-
FCMU0109 Compression Limiter – Sub Frame quantity
+
4 Compression Limiter – Sub Frame FCMU0109 REF: 4
FCMU0109
-
FCC60020 Chain Roller with Bolt, Bearings & Seals quantity
+
5 Chain Roller with Bolt, Bearings & Seals FCC60020 REF: 5
FCC60020
-
HCSP0610 Fork Guard Bolt – Front Number Plate Mount quantity
+
6 Fork Guard Bolt – Front Number Plate Mount HCSP0610 REF: 6
HCSP0610
-
TCMU0139 Footpegs (Pair) quantity
+
7 Footpegs (Pair) TCMU0139 REF: 7
TCMU0139
-
TCC60012 Spring – Footpeg - Ultra Wide 07 (2 Req’d) quantity
+
8 Spring – Footpeg - Ultra Wide 07 (2 Req’d) TCC60012 REF: 8
TCC60012
-
FCMU0031 Clevis Pin - Footpeg quantity
+
9 Clevis Pin - Footpeg FCMU0031 REF: 9
FCMU0031
-
HCCP0008 Cotter Pin 1/8 x 3/4 quantity
+
10 Cotter Pin 1/8 x 3/4 HCCP0008 REF: 10
HCCP0008
-
GCC60020 Bolt – Swingarm Pivot - Ti quantity
+
11 Bolt – Swingarm Pivot - Ti GCC60020 REF: 11
GCC60020
-
HCNL1201 M12 Swingarm Lock Nut quantity
+
12 M12 Swingarm Lock Nut HCNL1201 REF: 12
HCNL1201
-
HCBH0865 8x65mm Hex Head – Front Engine Mounts (2 Req’d) quantity
+
13 8x65mm Hex Head – Front Engine Mounts (2 Req’d) HCBH0865 REF: 13
HCBH0865
-
HCWF0801 8mm Flat Washer quantity
+
14 8mm Flat Washer HCWF0801 REF: 14
HCWF0801
-
HCNL0801 8mm Locknut – Front Engine Mounts (2 Req’d) quantity
+
15 8mm Locknut – Front Engine Mounts (2 Req’d) HCNL0801 REF: 15
HCNL0801
-
HCHA0003 Clip Nut – 6mm quantity
+
16 Clip Nut – 6mm HCHA0003 REF: 16
HCHA0003
-
HCCN0001 5mm Clip Nut (4 Req’d) quantity
+
17 5mm Clip Nut (4 Req’d) HCCN0001 REF: 17
HCCN0001
-
FCC60117 Bracket – Head Stay (2 Req’d) quantity
+
19 Bracket – Head Stay (2 Req’d) FCC60117 REF: 19
FCC60117
-
HCBC0630 M6x30mm Socket Head Cap Screw quantity
+
20 M6x30mm Socket Head Cap Screw HCBC0630 REF: 20
HCBC0630
-
HCBF0835 M8x35mm Flange Head quantity
+
21 M8x35mm Flange Head HCBF0835 REF: 21
HCBF0835
-
HCNL0801 8mm Locknut – Front Engine Mounts (2 Req’d) quantity
+
22 8mm Locknut – Front Engine Mounts (2 Req’d) HCNL0801 REF: 22
HCNL0801
-
TCC60041 Guard – Power Valve quantity
+
23 Guard – Power Valve TCC60041 REF: 23
TCC60041
-
HCNL0601 M6 Nylock Nut (2 Req’d) quantity
+
24 M6 Nylock Nut (2 Req’d) HCNL0601 REF: 24
HCNL0601
-
MCMUZT28 Zip Tie – Reusable quantity
+
Not Shown Zip Tie – Reusable MCMUZT28 REF: Not Shown
MCMUZT28
