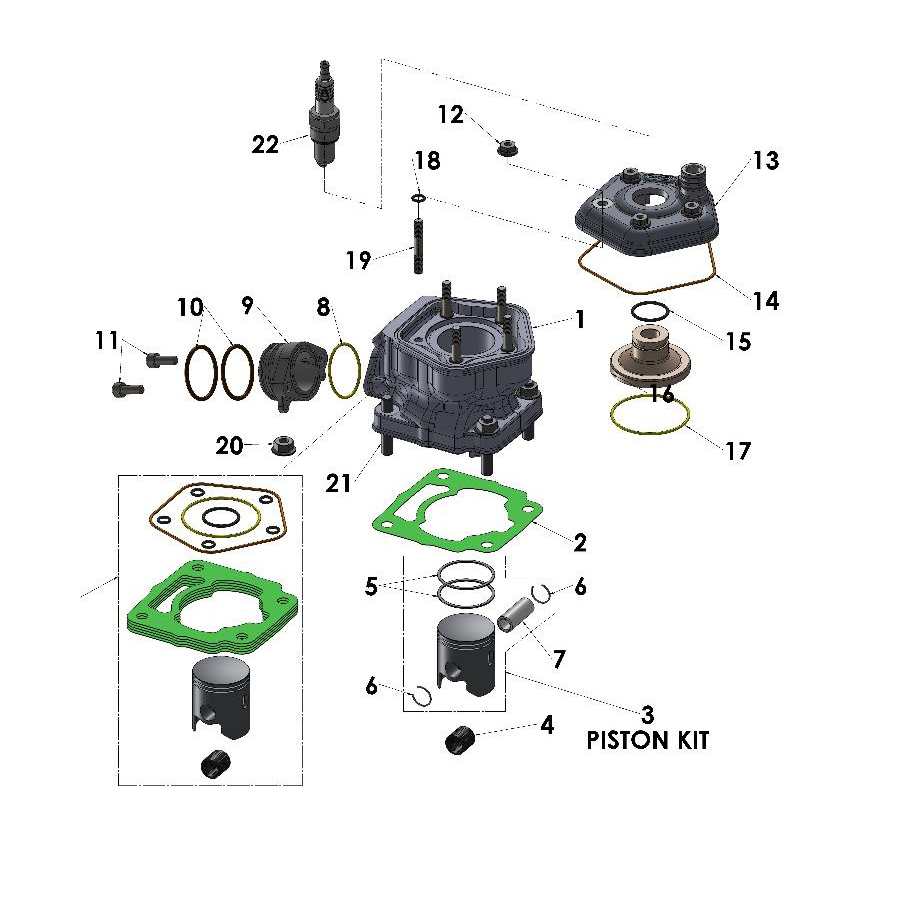

EKMU0361 Cylinder Kit - (Includes Studs, Piston, Rings, Pin & Clips) quantity
1 Cylinder Kit - (Includes Studs, Piston, Rings, Pin & Clips) EKMU0361 REF: 1
EKMU0361
ZCMU0102 Base Gasket (0.20mm) Thick quantity
2 Base Gasket (0.20mm) Thick ZCMU0102 REF: 2
ZCMU0102
ZCMU0103 Base Gasket (0.30mm) Thick quantity
2 Base Gasket (0.30mm) Thick ZCMU0103 REF: 2
ZCMU0103
ZCMU0104 Base Gasket (0.40mm) Thick quantity
2 Base Gasket (0.40mm) Thick ZCMU0104 REF: 2
ZCMU0104
ZCMU0105 Base Gasket (0.50mm) Thick quantity
2 Base Gasket (0.50mm) Thick ZCMU0105 REF: 2
ZCMU0105
ZCMU0106 Base Gasket (0.60mm) Thick quantity
2 Base Gasket (0.60mm) Thick ZCMU0106 REF: 2
ZCMU0106
ECMU0276A Piston Kit – ‘A’ Size (B, C, and D sizes available) quantity
3 Piston Kit – ‘A’ Size (B, C, and D sizes available) ECMU0276A REF: 3
ECMU0276A
ECMU0077 Bearing, Wrist Pin quantity
4 Bearing, Wrist Pin ECMU0077 REF: 4
ECMU0077
ECMU0155 Piston Rings (2 per set) quantity
5 Piston Rings (2 per set) ECMU0155 REF: 5
ECMU0155
ECMUSR00 Snap Ring for Piston (2 Req’d) quantity
6 Snap Ring for Piston (2 Req’d) ECMUSR00 REF: 6
ECMUSR00
ECKG0012 Wrist Pin quantity
7 Wrist Pin ECKG0012 REF: 7
ECKG0012
ZCMUOR07 O-Ring, Exhaust Flange quantity
8 O-Ring, Exhaust Flange ZCMUOR07 REF: 8
ZCMUOR07
ECMU0262 Exhaust Flange quantity
9 Exhaust Flange ECMU0262 REF: 9
ECMU0262
ZCMOTE11 O-Rings – Pipe to Flange (2 Req’d) quantity
10 O-Rings – Pipe to Flange (2 Req’d) ZCMOTE11 REF: 10
ZCMOTE11
HCBC0612 M6x12, Exhaust Flange Screw (2 Req’d) quantity
11 M6x12, Exhaust Flange Screw (2 Req’d) HCBC0612 REF: 11
HCBC0612
HCNF0601 6mm Flange Nut (5 Req’d) quantity
12 6mm Flange Nut (5 Req’d) HCNF0601 REF: 12
HCNF0601
ECC60149 Cylinder Head Outer quantity
13 Cylinder Head Outer ECC60149 REF: 13
ECC60149
ZCC60009 O-Ring, Cylinder Head Large quantity
14 O-Ring, Cylinder Head Large ZCC60009 REF: 14
ZCC60009
ZCMUOR23 O-Ring Cylinder Head Small quantity
15 O-Ring Cylinder Head Small ZCMUOR23 REF: 15
ZCMUOR23
ECMU0208 Cylinder Head, Insert quantity
16 Cylinder Head, Insert ECMU0208 REF: 16
ECMU0208
ZCMUOR05 O-Ring Cylinder Head Medium - Yellow quantity
17 O-Ring Cylinder Head Medium - Yellow ZCMUOR05 REF: 17
ZCMUOR05
ZCMUOR03 O-Ring Cylinder Stud (5 Req’d) quantity
18 O-Ring Cylinder Stud (5 Req’d) ZCMUOR03 REF: 18
ZCMUOR03
ECC60107 6mm Stud (5 Req’d) quantity
19 6mm Stud (5 Req’d) ECC60107 REF: 19
ECC60107
HCNF0801 8mm Flange Nut (4 Req’d) quantity
20 8mm Flange Nut (4 Req’d) HCNF0801 REF: 20
HCNF0801
ECC60109 Stud, Cylinder 8mm (4 Req’d) quantity
21 Stud, Cylinder 8mm (4 Req’d) ECC60109 REF: 21
ECC60109
ECMU0151 Spark Plug, Autolite Iridium quantity
22 Spark Plug, Autolite Iridium ECMU0151 REF: 22
ECMU0151
EKMU0036 Rebuild Kit - Top End - Venom Engine - A Piston quantity
23 Rebuild Kit - Top End - Venom Engine - A Piston EKMU0036 REF: 23
EKMU0036
EKMU0037 Rebuild Kit - Top End - Venom Engine - B Piston quantity
23 Rebuild Kit - Top End - Venom Engine - B Piston EKMU0037 REF: 23
EKMU0037
EKMU0038 Rebuild Kit - Top End - Venom Engine - C Piston quantity
23 Rebuild Kit - Top End - Venom Engine - C Piston EKMU0038 REF: 23
EKMU0038
EKMU0039 Rebuild Kit - Top End - Venom Engine - D Piston quantity
23 Rebuild Kit - Top End - Venom Engine - D Piston EKMU0039 REF: 23
EKMU0039
ZKMUOR13 Top End O-Ring Kit quantity
Accessory Top End O-Ring Kit ZKMUOR13 REF: Accessory
ZKMUOR13
EACS2021SR Complete Venom Engine quantity
Not shown Complete Venom Engine EACS2021SR REF: Not shown
EACS2021SR
