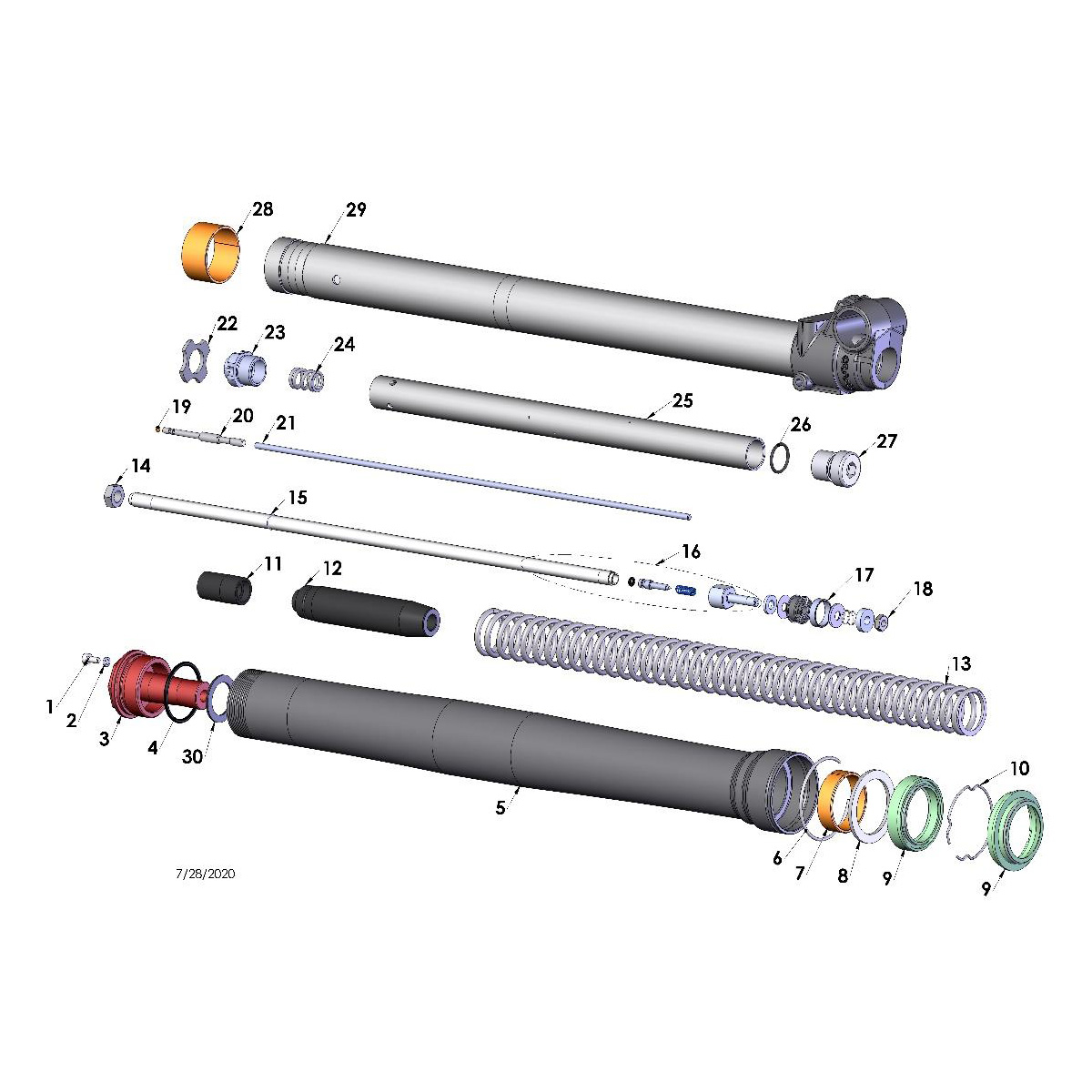

HCBC0408 M4x8mm Socket Head Cap Screw (2 Places) quantity
+
1 M4x8mm Socket Head Cap Screw (2 Places) HCBC0408 REF: 1
HCBC0408
-
ZCKG0001 Gasket, Bleed Screw Fork quantity
+
2 Gasket, Bleed Screw Fork ZCKG0001 REF: 2
ZCKG0001
-
KCC60044R Fork Cap quantity
+
3 Fork Cap KCC60044R REF: 3
KCC60044R
-
ZCC60011 O-Ring Fork Cap quantity
+
4 O-Ring Fork Cap ZCC60011 REF: 4
ZCC60011
-
KCC60037 Fork Outer Tube quantity
+
5 Fork Outer Tube KCC60037 REF: 5
KCC60037
-
KCC60043 Fork Outer Wear Ring Clip quantity
+
6 Fork Outer Wear Ring Clip KCC60043 REF: 6
KCC60043
-
KCC60041 Fork Guide Ring Bottom quantity
+
7 Fork Guide Ring Bottom KCC60041 REF: 7
KCC60041
-
KCC60047 Fork Seal Spacer quantity
+
8 Fork Seal Spacer KCC60047 REF: 8
KCC60047
-
KKC60039 Fork Seal & Swiper Kit – 37mm - CX65 quantity
+
9 Fork Seal & Swiper Kit – 37mm - CX65 KKC60039 REF: 9
KKC60039
-
KCC60066 Fork Seal Retainer Ring Clip quantity
+
10 Fork Seal Retainer Ring Clip KCC60066 REF: 10
KCC60066
-
KCC60067 Fork Jounce Bumper quantity
+
11 Fork Jounce Bumper KCC60067 REF: 11
KCC60067
-
KCC60064 Fork Spring Guide quantity
+
12 Fork Spring Guide KCC60064 REF: 12
KCC60064
-
KCC63726 Fork Spring .26 kg/mm (Single) quantity
+
13 Fork Spring .26 kg/mm (Single) KCC63726 REF: 13
KCC63726
-
KCC63724 Fork Spring .24 kg/mm (Single) quantity
+
13 Fork Spring .24 kg/mm (Single) KCC63724 REF: 13
KCC63724
-
KCC63728 Fork Spring .28 kg/mm (Single) quantity
+
13 Fork Spring .28 kg/mm (Single) KCC63728 REF: 13
KCC63728
-
HCNL3824 3/8-24 Jam Nut Class 8 quantity
+
14 3/8-24 Jam Nut Class 8 HCNL3824 REF: 14
HCNL3824
-
KCC60068 Ring Clip - Fork Spring Guide Retainer quantity
+
15 Ring Clip - Fork Spring Guide Retainer KCC60068 REF: 15
KCC60068
-
KAC60003 Damper Rod Assembly quantity
+
16 Damper Rod Assembly KAC60003 REF: 16
KAC60003
-
KCCS0018 Seal - Fork Piston - Mid Valve quantity
+
17 Seal - Fork Piston - Mid Valve KCCS0018 REF: 17
KCCS0018
-
HCNJ0006 M6 Jam Nut quantity
+
18 M6 Jam Nut HCNJ0006 REF: 18
HCNJ0006
-
BCKG0033 O-Ring – 2mm ID quantity
+
19 O-Ring – 2mm ID BCKG0033 REF: 19
BCKG0033
-
KCC60052 Fork Adjustment Screw Top quantity
+
20 Fork Adjustment Screw Top KCC60052 REF: 20
KCC60052
-
KCC60049 Adjuster Pin quantity
+
21 Adjuster Pin KCC60049 REF: 21
KCC60049
-
KCC60042 Fork Spring Perch quantity
+
22 Fork Spring Perch KCC60042 REF: 22
KCC60042
-
KCMU0013 Cartridge Cap quantity
+
23 Cartridge Cap KCMU0013 REF: 23
KCMU0013
-
KCKG0050 Top Out Spring quantity
+
24 Top Out Spring KCKG0050 REF: 24
KCKG0050
-
KCC60056 Cartridge Tube quantity
+
25 Cartridge Tube KCC60056 REF: 25
KCC60056
-
ZCKGB017 O-Ring - Fork Bottom Plug quantity
+
26 O-Ring - Fork Bottom Plug ZCKGB017 REF: 26
ZCKGB017
-
KCC60057 Plug – Fork Bottom – Smart Leg quantity
+
27 Plug – Fork Bottom – Smart Leg KCC60057 REF: 27
KCC60057
-
KCC60036 Fork Guide Ring Top quantity
+
28 Fork Guide Ring Top KCC60036 REF: 28
KCC60036
-
KAC60002 Fork Lower Non-Brake Side (Not Sold Separately) quantity
+
29 Fork Lower Non-Brake Side (Not Sold Separately) KAC60002 REF: 29
KAC60002
-
KCC60053 Fork Spring Pad 37mm quantity
+
30 Fork Spring Pad 37mm KCC60053 REF: 30
KCC60053
