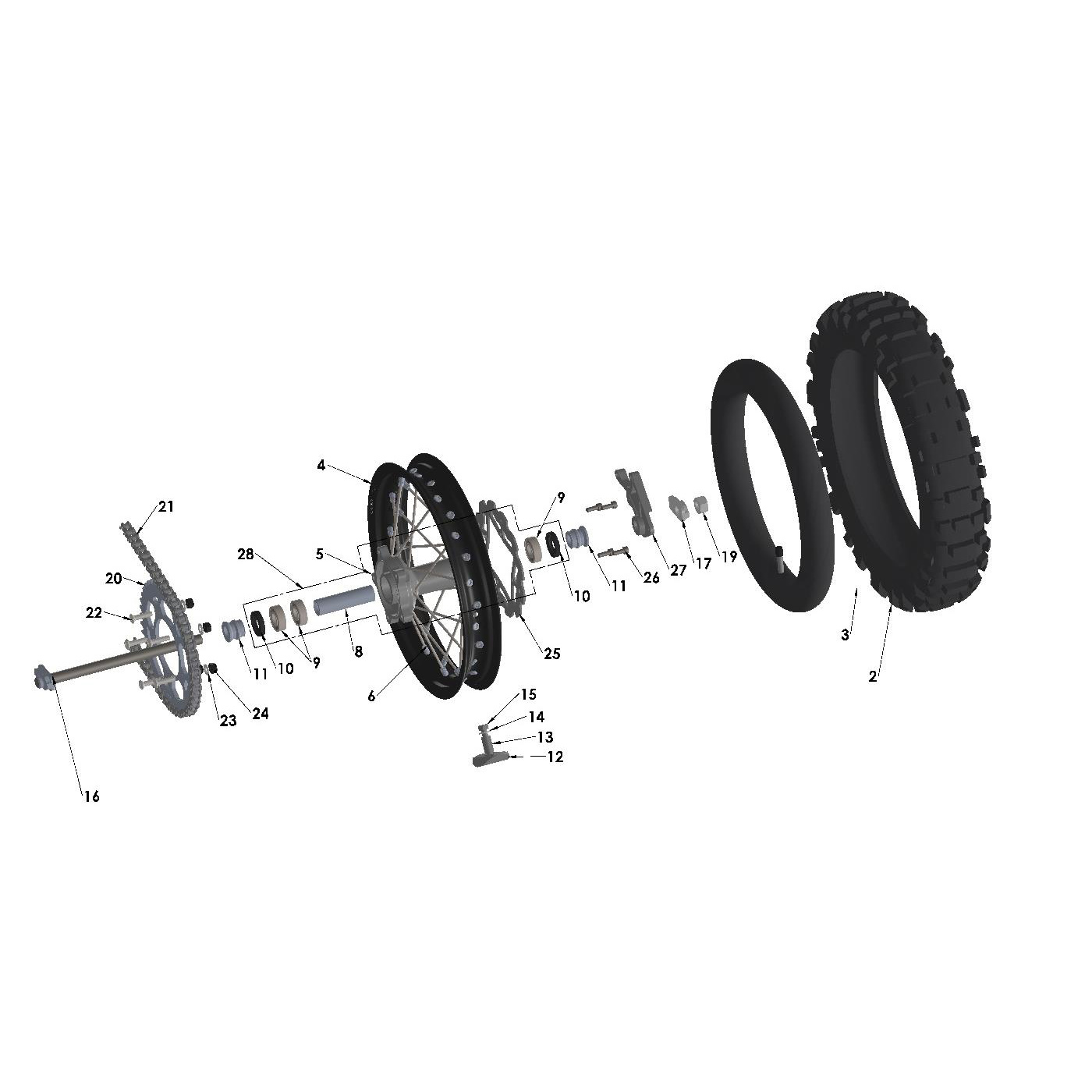

WAC6R018 Wheel 12" Rear with Bearings, Black (No Tire, Tube, Rotor or Sprocket) quantity
+
1 Wheel 12" Rear with Bearings, Black (No Tire, Tube, Rotor or Sprocket) WAC6R018 REF: 1
WAC6R018
-
WCC6R012D32 Tire - Rear - 80/100-12 - Dunlop MX3S quantity
+
2 Tire - Rear - 80/100-12 - Dunlop MX3S WCC6R012D32 REF: 2
WCC6R012D32
-
WCDCTU12 Tube – 275-80/100-12 Rear quantity
+
3 Tube – 275-80/100-12 Rear WCDCTU12 REF: 3
WCDCTU12
-
WCMU1218BLK 12" Rim, Black quantity
+
4 12" Rim, Black WCMU1218BLK REF: 4
WCMU1218BLK
-
WCC60134 Hub Rear Sealed - Black quantity
+
5 Hub Rear Sealed - Black WCC60134 REF: 5
WCC60134
-
WKC6R018 Spoke & Aluminum Nipple Kit – Rear Wheel-65 (28 Req’d) quantity
+
6 Spoke & Aluminum Nipple Kit – Rear Wheel-65 (28 Req’d) WKC6R018 REF: 6
WKC6R018
-
WCC60037 Spacer – Rear Wheel Bearing quantity
+
8 Spacer – Rear Wheel Bearing WCC60037 REF: 8
WCC60037
-
WCMU0120 Wheel Bearing (2 Req’d) quantity
+
9 Wheel Bearing (2 Req’d) WCMU0120 REF: 9
WCMU0120
-
WCC60035 Seal – Rear Hub quantity
+
10 Seal – Rear Hub WCC60035 REF: 10
WCC60035
-
WCC60036 Spacer – L&R Rear Wheel quantity
+
11 Spacer – L&R Rear Wheel WCC60036 REF: 11
WCC60036
-
WCMU0110 Rim Lock – 1.4/1.6 quantity
+
12 Rim Lock – 1.4/1.6 WCMU0110 REF: 12
WCMU0110
-
WCDC0008 Rim Lock Spacer quantity
+
13 Rim Lock Spacer WCDC0008 REF: 13
WCDC0008
-
HCWF0801 8mm Flat Washer quantity
+
14 8mm Flat Washer HCWF0801 REF: 14
HCWF0801
-
HCNS0801 8mm Nut quantity
+
15 8mm Nut HCNS0801 REF: 15
HCNS0801
-
WCC60010 Axle Rear CX65 - Ti quantity
+
16 Axle Rear CX65 - Ti WCC60010 REF: 16
WCC60010
-
GCC60010 Chain Adjust Block Offset quantity
+
17 Chain Adjust Block Offset GCC60010 REF: 17
GCC60010
-
WCC60011 Nut – Aluminum Acorn quantity
+
19 Nut – Aluminum Acorn WCC60011 REF: 19
WCC60011
-
PCC618xx Sprocket – xx denotes number of teeth (37-53) quantity
+
20 Sprocket – xx denotes number of teeth (37-53) PCC618xx REF: 20
PCC618xx
-
PCMU0116 Chain 420H 116 Link CX65 14/48 quantity
+
21 Chain 420H 116 Link CX65 14/48 PCMU0116 REF: 21
PCMU0116
-
HCSP0701 Sprocket Bolt – M7 quantity
+
22 Sprocket Bolt – M7 HCSP0701 REF: 22
HCSP0701
-
HCWF0701 7mm Flat Washer (4 Req’d) quantity
+
23 7mm Flat Washer (4 Req’d) HCWF0701 REF: 23
HCWF0701
-
HCNL0701 M7 Locknut (4 Req’d) quantity
+
24 M7 Locknut (4 Req’d) HCNL0701 REF: 24
HCNL0701
-
BCC60004 Brake Rotor Rear quantity
+
25 Brake Rotor Rear BCC60004 REF: 25
BCC60004
-
HCBC0601 M6x16mm Socket Head Cap Screw (2 Req’d) quantity
+
26 M6x16mm Socket Head Cap Screw (2 Req’d) HCBC0601 REF: 26
HCBC0601
-
BCC60093 Bracket – Caliper Mounting quantity
+
27 Bracket – Caliper Mounting BCC60093 REF: 27
BCC60093
-
WAC6R118 Rear Hub Assembly with Bearings, Seals, and Spacer quantity
+
28 Rear Hub Assembly with Bearings, Seals, and Spacer WAC6R118 REF: 28
WAC6R118
-
MCMUTL17 Wrench – Spoke quantity
+
Tool Wrench – Spoke MCMUTL17 REF: Tool
MCMUTL17
