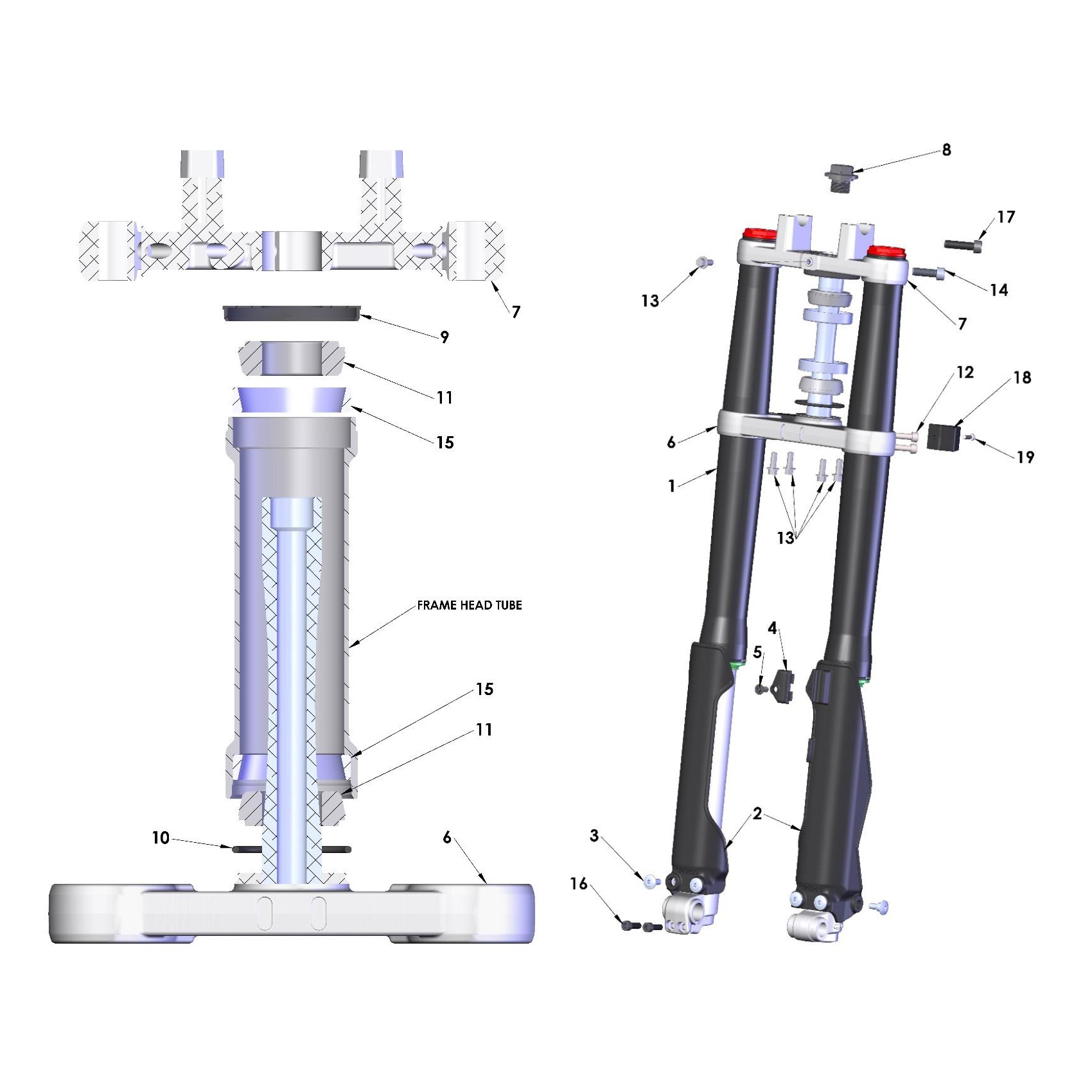

KACS2021 Fork Complete, Brake & Non-Brake Side quantity
+
1 Fork Complete, Brake & Non-Brake Side KACS2021 REF: 1
KACS2021
-
KCMU0035 Fork Guard Set quantity
+
2 Fork Guard Set KCMU0035 REF: 2
KCMU0035
-
HCSP0610BLK Bolt - Fork Guard - Black (6 Req’d) quantity
+
3 Bolt - Fork Guard - Black (6 Req’d) HCSP0610BLK REF: 3
HCSP0610BLK
-
KCMU0036 Clamp – Brake Line quantity
+
4 Clamp – Brake Line KCMU0036 REF: 4
KCMU0036
-
HCSP0004 Screw – Plascrew - Aluminum quantity
+
5 Screw – Plascrew - Aluminum HCSP0004 REF: 5
HCSP0004
-
FAMU0020 Triple Clamp Bottom Assy, (Clamp & Stem) quantity
+
6 Triple Clamp Bottom Assy, (Clamp & Stem) FAMU0020 REF: 6
FAMU0020
-
FCMU0071 Triple Clamp Top quantity
+
7 Triple Clamp Top FCMU0071 REF: 7
FCMU0071
-
FCMU0074 Bolt – Steering Stem quantity
+
8 Bolt – Steering Stem FCMU0074 REF: 8
FCMU0074
-
FCMU0079 Dust Cover (1 Req’d) quantity
+
9 Dust Cover (1 Req’d) FCMU0079 REF: 9
FCMU0079
-
FCMU0044 O-Ring (1 Req’d) quantity
+
10 O-Ring (1 Req’d) FCMU0044 REF: 10
FCMU0044
-
FCMU0004 Steering Head Bearing (2 Req’d) quantity
+
11 Steering Head Bearing (2 Req’d) FCMU0004 REF: 11
FCMU0004
-
HCBC0625 M6x25mm Socket Head Cap Screw (2 Req’d) quantity
+
12 M6x25mm Socket Head Cap Screw (2 Req’d) HCBC0625 REF: 12
HCBC0625
-
HCBF0616 M6x16mm Flange Head Bolt (2 Req’d) quantity
+
13 M6x16mm Flange Head Bolt (2 Req’d) HCBF0616 REF: 13
HCBF0616
-
HCBC0825 M8 x 25mm Socket Head Cap Screw quantity
+
14 M8 x 25mm Socket Head Cap Screw HCBC0825 REF: 14
HCBC0825
-
FCMU0011 Race – Steering Stem Bearing (2 Req’d) quantity
+
15 Race – Steering Stem Bearing (2 Req’d) FCMU0011 REF: 15
FCMU0011
-
HCBC0602 M6x20mm Socket Head Cap Screw (2 Req’d) quantity
+
16 M6x20mm Socket Head Cap Screw (2 Req’d) HCBC0602 REF: 16
HCBC0602
-
HCBC0806 M8x30mm Socket Head Cap Screw (4 Req’d) quantity
+
17 M8x30mm Socket Head Cap Screw (4 Req’d) HCBC0806 REF: 17
HCBC0806
-
FCMU0170 Steering Stop Bumper (2 Req’d) quantity
+
18 Steering Stop Bumper (2 Req’d) FCMU0170 REF: 18
FCMU0170
-
FKMU0008 Kit – Steering Stem Bearings, Races and Seals quantity
+
Accessory Kit – Steering Stem Bearings, Races and Seals FKMU0008 REF: Accessory
FKMU0008
-
MCMUTL44 Tool – Bearing and Seal Installer Assy quantity
+
Tool Tool – Bearing and Seal Installer Assy MCMUTL44 REF: Tool
MCMUTL44
