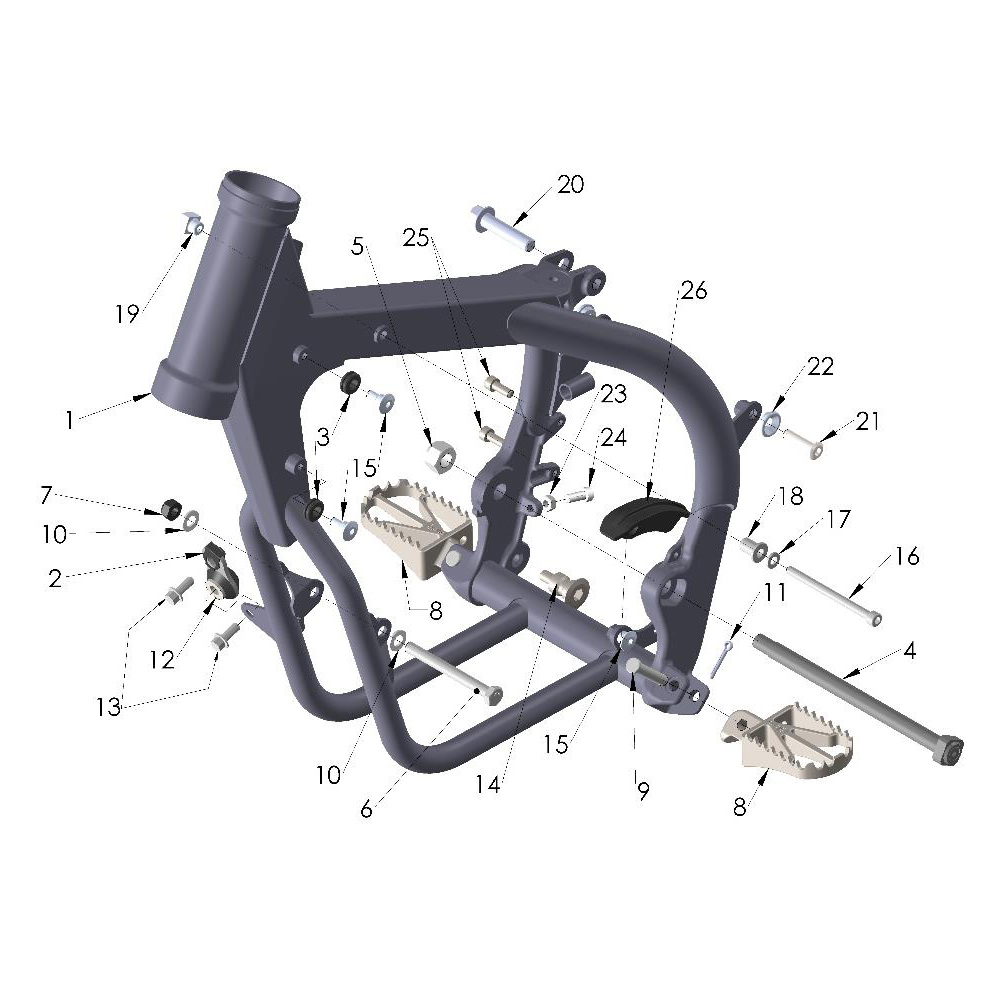

FACS2021 Frame – 2021 King & Few quantity
+
1 Frame – 2021 King & Few FACS2021 REF: 1
FACS2021
-
HCHA0003 Clip Nut – 6mm quantity
+
2 Clip Nut – 6mm HCHA0003 REF: 2
HCHA0003
-
MCMUGR12 Grommet – Radiator Mounting (4 Req’d) quantity
+
3 Grommet – Radiator Mounting (4 Req’d) MCMUGR12 REF: 3
MCMUGR12
-
HCBH1203 Bolt – Swingarm Pivot – CX50 quantity
+
4 Bolt – Swingarm Pivot – CX50 HCBH1203 REF: 4
HCBH1203
-
HCNL1201 M12 Swingarm Lock Nut quantity
+
5 M12 Swingarm Lock Nut HCNL1201 REF: 5
HCNL1201
-
HCBH0880 M8X80mm Hex Head Bolt quantity
+
6 M8X80mm Hex Head Bolt HCBH0880 REF: 6
HCBH0880
-
HCNL0801 8mm Locknut – Front Engine Mounts (2 Req’d) quantity
+
7 8mm Locknut – Front Engine Mounts (2 Req’d) HCNL0801 REF: 7
HCNL0801
-
TCMU0139 Footpegs (Pair) quantity
+
8 Footpegs (Pair) TCMU0139 REF: 8
TCMU0139
-
FCMU0031 Clevis Pin - Footpeg quantity
+
9 Clevis Pin - Footpeg FCMU0031 REF: 9
FCMU0031
-
HCWF0801 8mm Flat Washer quantity
+
10 8mm Flat Washer HCWF0801 REF: 10
HCWF0801
-
HCCP0008 Cotter Pin 1/8 x 3/4 quantity
+
11 Cotter Pin 1/8 x 3/4 HCCP0008 REF: 11
HCCP0008
-
XCMU0033 Isolation Mount quantity
+
12 Isolation Mount XCMU0033 REF: 12
XCMU0033
-
HCBF0616 M6x16mm Flange Head Bolt (2 Req’d) quantity
+
13 M6x16mm Flange Head Bolt (2 Req’d) HCBF0616 REF: 13
HCBF0616
-
BCMU0027 Brake Pedal Pivot Bolt quantity
+
14 Brake Pedal Pivot Bolt BCMU0027 REF: 14
BCMU0027
-
HCSP0610 Fork Guard Bolt – Front Number Plate Mount quantity
+
15 Fork Guard Bolt – Front Number Plate Mount HCSP0610 REF: 15
HCSP0610
-
HCFH0675 M6x75mm Flat Head quantity
+
16 M6x75mm Flat Head HCFH0675 REF: 16
HCFH0675
-
TCMU0047 Bushing - Fuel Tank quantity
+
18 Bushing - Fuel Tank TCMU0047 REF: 18
TCMU0047
-
TCMU0017 Front Tank Mount Bushing – Square Threaded quantity
+
19 Front Tank Mount Bushing – Square Threaded TCMU0017 REF: 19
TCMU0017
-
HCBF1040 M10x40mm Lower Shock Mount Bolt quantity
+
20 M10x40mm Lower Shock Mount Bolt HCBF1040 REF: 20
HCBF1040
-
HCSP0701 Sprocket Bolt – M7 quantity
+
21 Sprocket Bolt – M7 HCSP0701 REF: 21
HCSP0701
-
FCMU0109 Compression Limiter – Sub Frame quantity
+
22 Compression Limiter – Sub Frame FCMU0109 REF: 22
FCMU0109
-
HCNK0601 M6 Locknut quantity
+
23 M6 Locknut HCNK0601 REF: 23
HCNK0601
-
HCBC0602 M6x20mm Socket Head Cap Screw (2 Req’d) quantity
+
24 M6x20mm Socket Head Cap Screw (2 Req’d) HCBC0602 REF: 24
HCBC0602
-
HCBC0601 M6x16mm Socket Head Cap Screw (2 Req’d) quantity
+
25 M6x16mm Socket Head Cap Screw (2 Req’d) HCBC0601 REF: 25
HCBC0601
-
TCMU0044 Lower Chain Slide quantity
+
26 Lower Chain Slide TCMU0044 REF: 26
TCMU0044
-
TCMU0106 Footpeg Spring (Single Piece) quantity
+
Accessory Footpeg Spring (Single Piece) TCMU0106 REF: Accessory
TCMU0106
