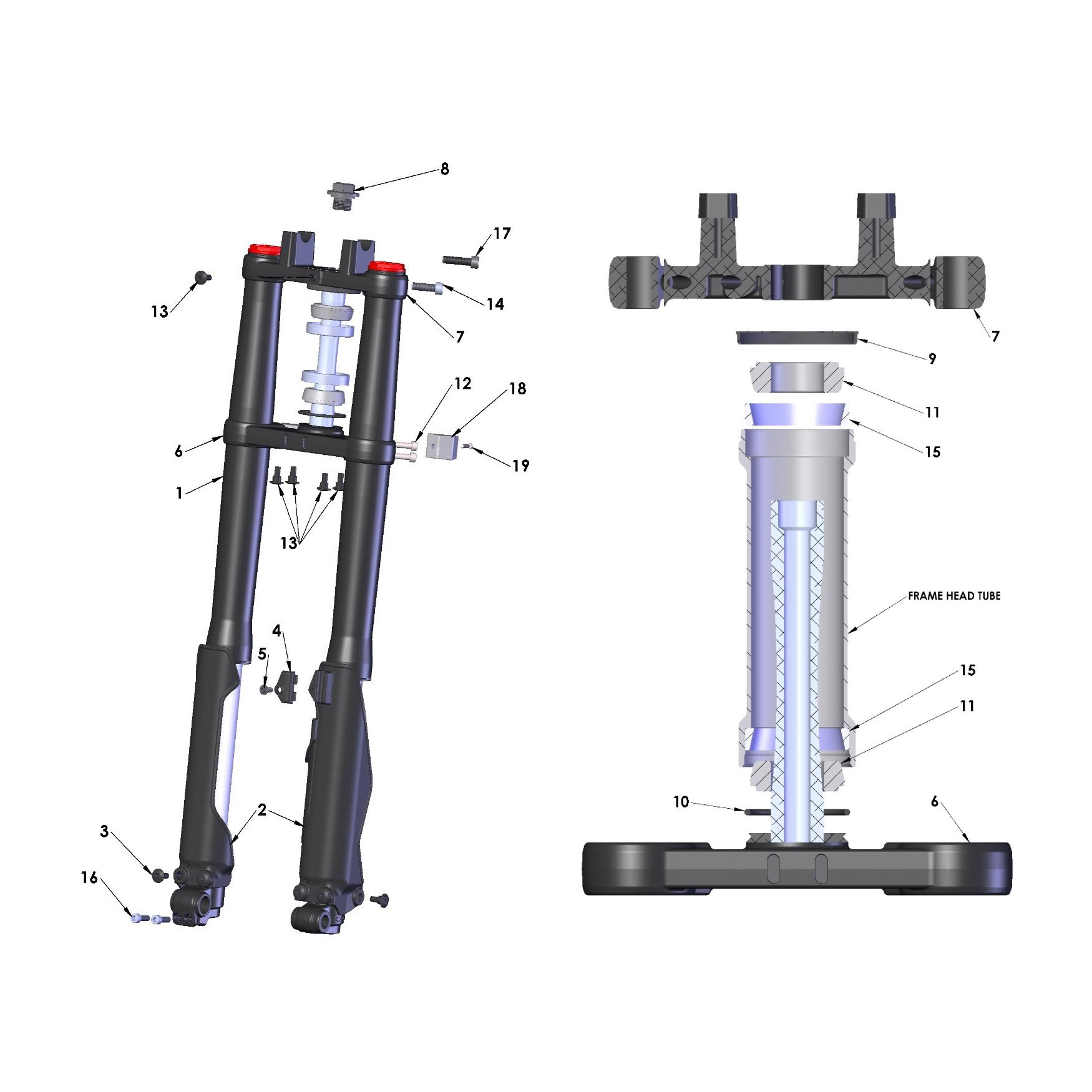

KACS2021FWE Fork Complete, Brake & Non-Brake Side quantity
1 Fork Complete, Brake & Non-Brake Side KACS2021FWE REF: 1
KACS2021FWE
KCMU0035 Fork Guard Set quantity
2 Fork Guard Set KCMU0035 REF: 2
KCMU0035
HCSP0610BLK Bolt - Fork Guard - Black (6 Req’d) quantity
3 Bolt - Fork Guard - Black (6 Req’d) HCSP0610BLK REF: 3
HCSP0610BLK
KCMU0036 Clamp – Brake Line quantity
4 Clamp – Brake Line KCMU0036 REF: 4
KCMU0036
HCSP0004 Screw – Plascrew - Aluminum quantity
5 Screw – Plascrew - Aluminum HCSP0004 REF: 5
HCSP0004
FAMU0020BLK Triple Clamp Bottom Assy (Clamp & Stem) Black quantity
6 Triple Clamp Bottom Assy (Clamp & Stem) Black FAMU0020BLK REF: 6
FAMU0020BLK
FCMU0071BLK Triple Clamp Top - Black quantity
7 Triple Clamp Top - Black FCMU0071BLK REF: 7
FCMU0071BLK
FCMU0074 Bolt – Steering Stem quantity
8 Bolt – Steering Stem FCMU0074 REF: 8
FCMU0074
FCMU0079 Dust Cover (1 Req’d) quantity
9 Dust Cover (1 Req’d) FCMU0079 REF: 9
FCMU0079
FCMU0044 O-Ring (1 Req’d) quantity
10 O-Ring (1 Req’d) FCMU0044 REF: 10
FCMU0044
FCMU0004 Steering Head Bearing (2 Req’d) quantity
11 Steering Head Bearing (2 Req’d) FCMU0004 REF: 11
FCMU0004
HCBC0625 M6x25mm Socket Head Cap Screw (2 Req’d) quantity
12 M6x25mm Socket Head Cap Screw (2 Req’d) HCBC0625 REF: 12
HCBC0625
HCSP0610BLK Bolt - Fork Guard - Black (6 Req’d) quantity
13 Bolt - Fork Guard - Black (6 Req’d) HCSP0610BLK REF: 13
HCSP0610BLK
HCBC0825 M8 x 25mm Socket Head Cap Screw quantity
14 M8 x 25mm Socket Head Cap Screw HCBC0825 REF: 14
HCBC0825
FCMU0011 Race – Steering Stem Bearing (2 Req’d) quantity
15 Race – Steering Stem Bearing (2 Req’d) FCMU0011 REF: 15
FCMU0011
HCBC0602 M6x20mm Socket Head Cap Screw (2 Req’d) quantity
16 M6x20mm Socket Head Cap Screw (2 Req’d) HCBC0602 REF: 16
HCBC0602
HCBC0806 M8x30mm Socket Head Cap Screw (4 Req’d) quantity
17 M8x30mm Socket Head Cap Screw (4 Req’d) HCBC0806 REF: 17
HCBC0806
FCMU0175MP Steering Stop Bumper (2 Req’d) quantity
18 Steering Stop Bumper (2 Req’d) FCMU0175MP REF: 18
FCMU0175MP
HCBB1416 M4x16mm Button Head (2 Req’d) quantity
19 M4x16mm Button Head (2 Req’d) HCBB1416 REF: 19
HCBB1416
FKMU0008 Kit – Steering Stem Bearings, Races and Seals quantity
Accessory Kit – Steering Stem Bearings, Races and Seals FKMU0008 REF: Accessory
FKMU0008
MCMUTL44 Tool – Bearing and Seal Installer Assy quantity
Tool Tool – Bearing and Seal Installer Assy MCMUTL44 REF: Tool
MCMUTL44
