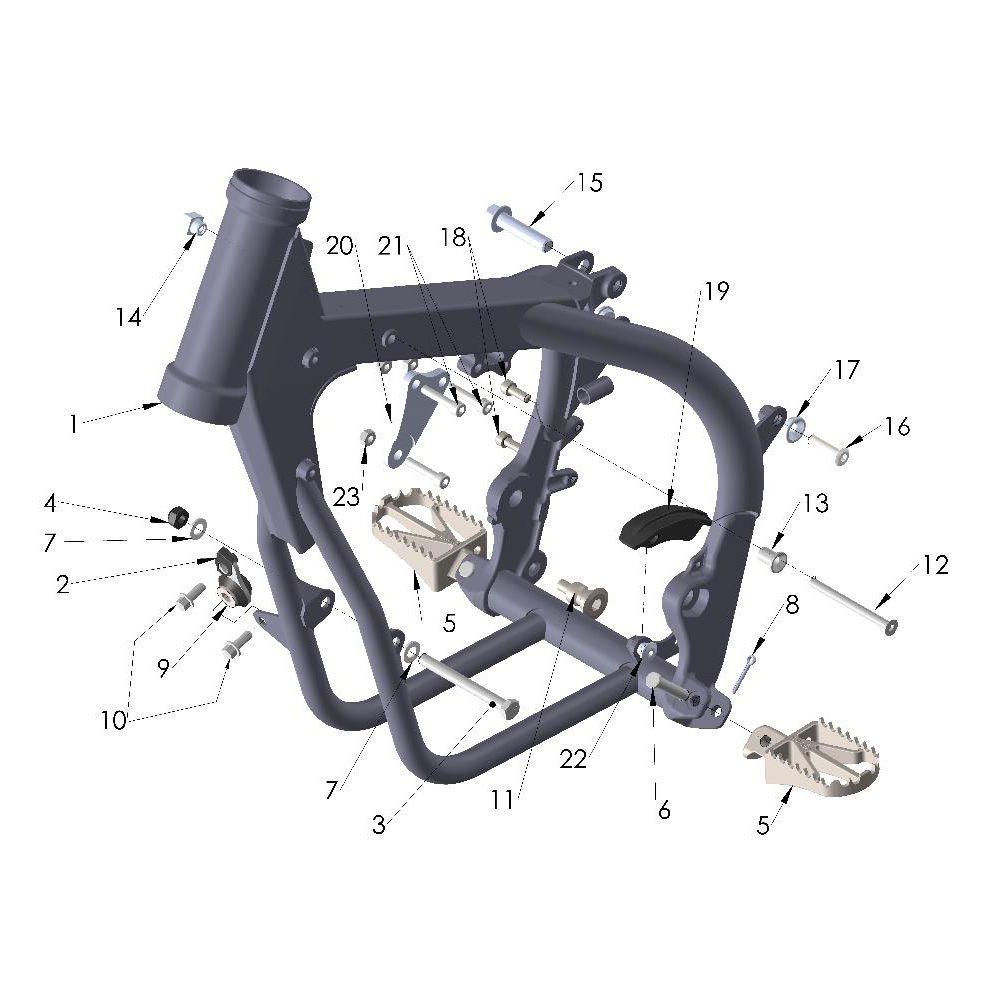

FACS2026 Frame – FWE quantity
1 Frame – FWE FACS2026 REF: 1
FACS2026
HCHA0003 Clip Nut – 6mm quantity
2 Clip Nut – 6mm HCHA0003 REF: 2
HCHA0003
HCBH0880 M8X80mm Hex Head Bolt quantity
3 M8X80mm Hex Head Bolt HCBH0880 REF: 3
HCBH0880
HCNL0803 M8 Lock Nut quantity
4 M8 Lock Nut HCNL0803 REF: 4
HCNL0803
TCMU0139 Footpegs (Pair) quantity
5 Footpegs (Pair) TCMU0139 REF: 5
TCMU0139
FCMU0031 Clevis Pin - Footpeg quantity
6 Clevis Pin - Footpeg FCMU0031 REF: 6
FCMU0031
HCWF0802 8mm Flat Washer quantity
7 8mm Flat Washer HCWF0802 REF: 7
HCWF0802
HCCP0008 Cotter Pin 1/8 x 3/4 quantity
8 Cotter Pin 1/8 x 3/4 HCCP0008 REF: 8
HCCP0008
XCMU0033 Isolation Mount quantity
9 Isolation Mount XCMU0033 REF: 9
XCMU0033
HCBF0616 M6x16mm Flange Head Bolt (2 Req’d) quantity
10 M6x16mm Flange Head Bolt (2 Req’d) HCBF0616 REF: 10
HCBF0616
BCMU0027 Brake Pedal Pivot Bolt quantity
11 Brake Pedal Pivot Bolt BCMU0027 REF: 11
BCMU0027
HCFH0675 M6x75mm Flat Head quantity
12 M6x75mm Flat Head HCFH0675 REF: 12
HCFH0675
TCMU0047 Bushing - Fuel Tank quantity
13 Bushing - Fuel Tank TCMU0047 REF: 13
TCMU0047
TCMU0017 Front Tank Mount Bushing – Square Threaded quantity
14 Front Tank Mount Bushing – Square Threaded TCMU0017 REF: 14
TCMU0017
HCBF1039 M10x40mm Flange Head Bolt quantity
15 M10x40mm Flange Head Bolt HCBF1039 REF: 15
HCBF1039
HCSP0701 Sprocket Bolt – M7 quantity
16 Sprocket Bolt – M7 HCSP0701 REF: 16
HCSP0701
FCMU0109 Compression Limiter – Sub Frame quantity
17 Compression Limiter – Sub Frame FCMU0109 REF: 17
FCMU0109
HCBC0616 M6x16 Socket Head Cap Screw (3 req'd) quantity
18 M6x16 Socket Head Cap Screw (3 req'd) HCBC0616 REF: 18
HCBC0616
TCMU0044 Lower Chain Slide quantity
19 Lower Chain Slide TCMU0044 REF: 19
TCMU0044
FCCS0075 Bracket – Head Stay (2 req’d) quantity
20 Bracket – Head Stay (2 req’d) FCCS0075 REF: 20
FCCS0075
HCBF0630 M6x30mm Flange Head Bolt (2 Req’d) quantity
21 M6x30mm Flange Head Bolt (2 Req’d) HCBF0630 REF: 21
HCBF0630
HCBC0620 M6x20mm Socket Head Cap Screw (2 req’d) quantity
22A M6x20mm Socket Head Cap Screw (2 req’d) HCBC0620 REF: 22A
HCBC0620
TCC60019 Compression Limiting Spacer quantity
22B Compression Limiting Spacer TCC60019 REF: 22B
TCC60019
HCNL0601 M6 Nylock Nut (2 Req’d) quantity
23 M6 Nylock Nut (2 Req’d) HCNL0601 REF: 23
HCNL0601
TCC60012 Spring – Footpeg - Ultra Wide 07 (2 Req’d) quantity
Accessory Spring – Footpeg - Ultra Wide 07 (2 Req’d) TCC60012 REF: Accessory
TCC60012
