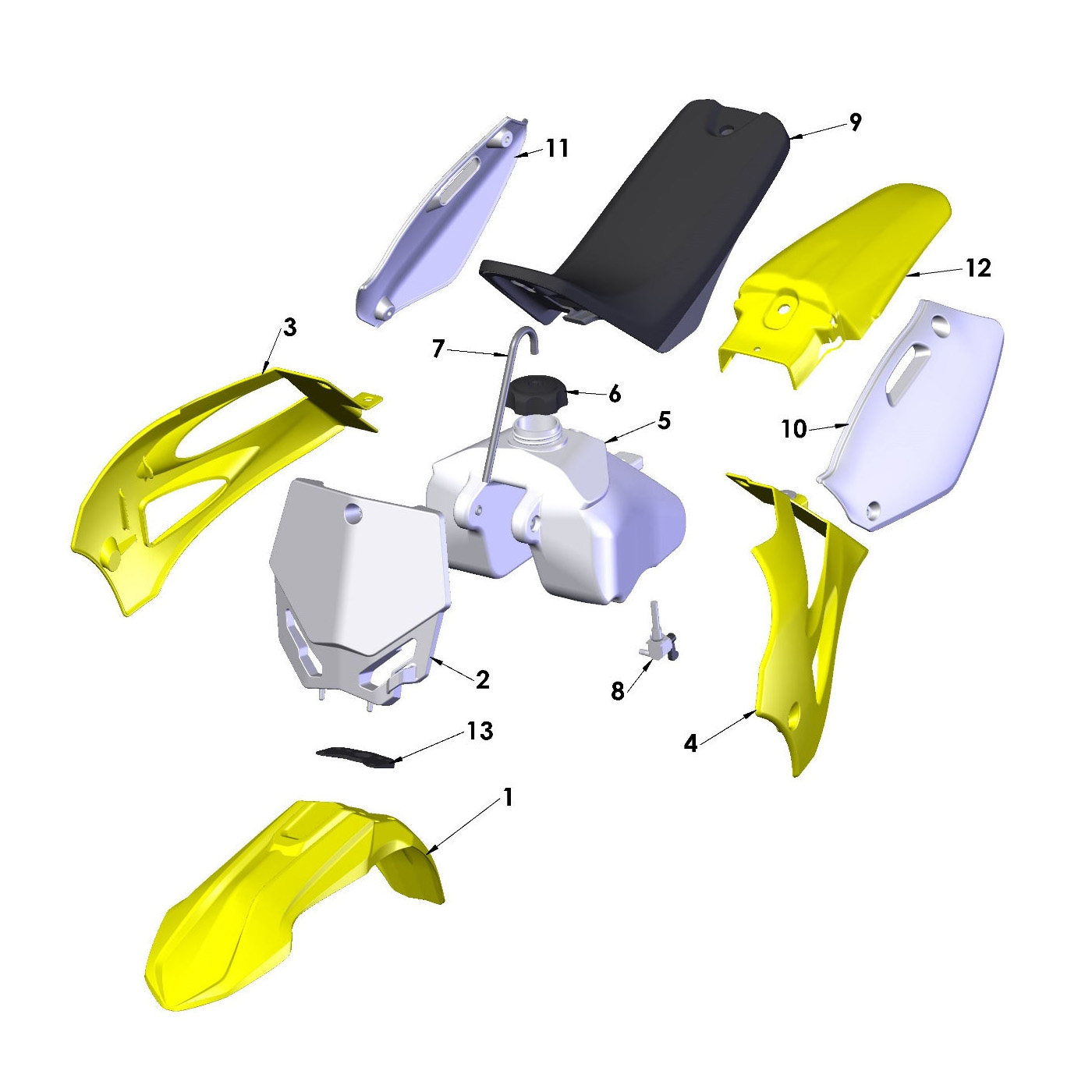

TCCS0009FXX Front Fender – Mega Flo Yellow quantity
+
1 Front Fender – Mega Flo Yellow TCCS0009FXX REF: 1
TCCS0009FXX
-
TCMU0009x Front Fender x – Denotes Color BLK, WHT, YEL, FLO quantity
+
1 Front Fender x – Denotes Color BLK, WHT, YEL, FLO TCMU0009x REF: 1
TCMU0009x
-
HCBF0620 M6x20 Flange Head Bolt quantity
+
1A M6x20 Flange Head Bolt HCBF0620 REF: 1A
HCBF0620
-
TCC60019 Compression Limiting Spacer quantity
+
1B Compression Limiting Spacer TCC60019 REF: 1B
TCC60019
-
TCMU0041WHT Number Plate – Front quantity
+
2 Number Plate – Front TCMU0041WHT REF: 2
TCMU0041WHT
-
TCMU0041x Front Number Plate x – Denotes Color BLK, WHT, YEL quantity
+
2 Front Number Plate x – Denotes Color BLK, WHT, YEL TCMU0041x REF: 2
TCMU0041x
-
HCSP0610 Fork Guard Bolt – Front Number Plate Mount quantity
+
2A Fork Guard Bolt – Front Number Plate Mount HCSP0610 REF: 2A
HCSP0610
-
TCCJ0005FXX Radiator Shroud Set (Left & Right) – Mega Flo Yellow quantity
+
3 & 4 Radiator Shroud Set (Left & Right) – Mega Flo Yellow TCCJ0005FXX REF: 3 & 4
TCCJ0005FXX
-
TCCJ0005x Radiator Shroud Set x – Color Blk, Wht, Yel, Flo quantity
+
3 & 4 Radiator Shroud Set x – Color Blk, Wht, Yel, Flo TCCJ0005x REF: 3 & 4
TCCJ0005x
-
TCCJ0010C Fuel Tank – Clear - No Cap or Petcock – 2017 & Newer quantity
+
5 Fuel Tank – Clear - No Cap or Petcock – 2017 & Newer TCCJ0010C REF: 5
TCCJ0010C
-
HCFH0625 M6x25mm Philips Head Screw – Seat & Shroud Hold quantity
+
5A M6x25mm Philips Head Screw – Seat & Shroud Hold HCFH0625 REF: 5A
HCFH0625
-
TCHA0005 Spacer – Seat & Shroud Hold quantity
+
5B Spacer – Seat & Shroud Hold TCHA0005 REF: 5B
TCHA0005
-
TCHA0006 Spacer – Front Tank Mount (2 Req’d) quantity
+
5C Spacer – Front Tank Mount (2 Req’d) TCHA0006 REF: 5C
TCHA0006
-
HCBC0685 M6x85mm SHCS – Front Tank Mount quantity
+
5D M6x85mm SHCS – Front Tank Mount HCBC0685 REF: 5D
HCBC0685
-
HCNL0601 M6 Nylock Nut (2 Req’d) quantity
+
5E M6 Nylock Nut (2 Req’d) HCNL0601 REF: 5E
HCNL0601
-
HCBF0635 M6x35mm Socket Head Cap Screw quantity
+
5F M6x35mm Socket Head Cap Screw HCBF0635 REF: 5F
HCBF0635
-
TCHA0004 Bushing – Rear Tank Mounting quantity
+
5G Bushing – Rear Tank Mounting TCHA0004 REF: 5G
TCHA0004
-
TCHA0002 Cap – Fuel Tank quantity
+
6 Cap – Fuel Tank TCHA0002 REF: 6
TCHA0002
-
TCHA0003 Hose – Fuel Cap quantity
+
7 Hose – Fuel Cap TCHA0003 REF: 7
TCHA0003
-
TCMU0151 Petcock quantity
+
8 Petcock TCMU0151 REF: 8
TCMU0151
-
TCCM0007 Seat quantity
+
9 Seat TCCM0007 REF: 9
TCCM0007
-
TCCM0007COVER Seat Cover Replacement quantity
+
9A Seat Cover Replacement TCCM0007COVER REF: 9A
TCCM0007COVER
-
HCBC0604 M6x35mm Socket Head Cap Screw quantity
+
9B M6x35mm Socket Head Cap Screw HCBC0604 REF: 9B
HCBC0604
-
MCMU0013 Strap Handle quantity
+
9C Strap Handle MCMU0013 REF: 9C
MCMU0013
-
TCCJ0003W Number Plate Set (Left and Right) – White quantity
+
10 & 11 Number Plate Set (Left and Right) – White TCCJ0003W REF: 10 & 11
TCCJ0003W
-
TCCJ0003x Number Plate Set x – Denotes Color Blk, Wht, Yel quantity
+
10 & 11 Number Plate Set x – Denotes Color Blk, Wht, Yel TCCJ0003x REF: 10 & 11
TCCJ0003x
-
HCBF0616 M6x16mm Flange Head Bolt (2 Req’d) quantity
+
10A M6x16mm Flange Head Bolt (2 Req’d) HCBF0616 REF: 10A
HCBF0616
-
HCBF0620 M6x20 Flange Head Bolt quantity
+
10B M6x20 Flange Head Bolt HCBF0620 REF: 10B
HCBF0620
-
HCNF0602 M6 Flange Nylock Nut (2 Req’d) quantity
+
10C M6 Flange Nylock Nut (2 Req’d) HCNF0602 REF: 10C
HCNF0602
-
HCBF0616 M6x16mm Flange Head Bolt (2 Req’d) quantity
+
10D M6x16mm Flange Head Bolt (2 Req’d) HCBF0616 REF: 10D
HCBF0616
-
HCBF0620 M6x20 Flange Head Bolt quantity
+
10E M6x20 Flange Head Bolt HCBF0620 REF: 10E
HCBF0620
-
HCNF0602 M6 Flange Nylock Nut (2 Req’d) quantity
+
10F M6 Flange Nylock Nut (2 Req’d) HCNF0602 REF: 10F
HCNF0602
-
TCHA0112FXX Fender – Rear – Mega Flo Yellow quantity
+
12 Fender – Rear – Mega Flo Yellow TCHA0112FXX REF: 12
TCHA0112FXX
-
TCHA0112x Fender – Rear x – Denotes Color Blk, Wht, Yel, Flo quantity
+
12 Fender – Rear x – Denotes Color Blk, Wht, Yel, Flo TCHA0112x REF: 12
TCHA0112x
-
HCBF0616 M6x16mm Flange Head Bolt (2 Req’d) quantity
+
12A M6x16mm Flange Head Bolt (2 Req’d) HCBF0616 REF: 12A
HCBF0616
-
FCMU0034 Wedge Spacer – Front Fender quantity
+
13 Wedge Spacer – Front Fender FCMU0034 REF: 13
FCMU0034
-
TCCJ2023 Graphic Kit quantity
+
Accessory Graphic Kit TCCJ2023 REF: Accessory
TCCJ2023
-
TKCJ2022FXX Bodywork Kit – JR – Stock quantity
+
Accessory Bodywork Kit – JR – Stock TKCJ2022FXX REF: Accessory
TKCJ2022FXX
-
TKCJ2022BLK Bodywork Kit - JR - Black quantity
+
Accessory Bodywork Kit - JR - Black TKCJ2022BLK REF: Accessory
TKCJ2022BLK
-
TKCJ2022WHT Bodywork Kit - JR - White quantity
+
Accessory Bodywork Kit - JR - White TKCJ2022WHT REF: Accessory
TKCJ2022WHT
