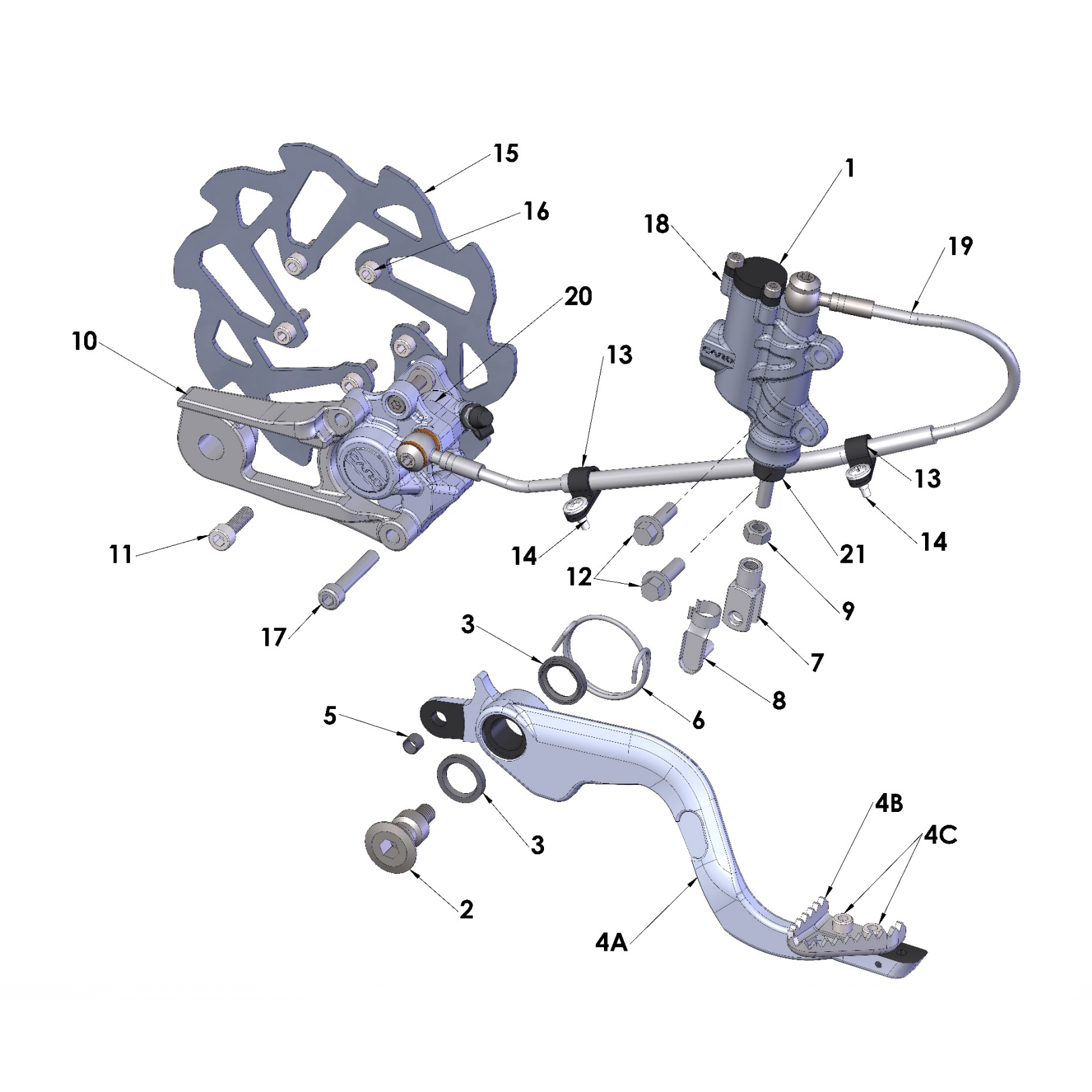

BACJ0004 Brake System – Rear (M/C-Line-Caliper) quantity
+
1 Brake System – Rear (M/C-Line-Caliper) BACJ0004 REF: 1
BACJ0004
-
BCMU0027 Brake Pedal Pivot Bolt quantity
+
2 Brake Pedal Pivot Bolt BCMU0027 REF: 2
BCMU0027
-
BCMU0501 Seal – Brake Pedal (2 Req’d) quantity
+
3 Seal – Brake Pedal (2 Req’d) BCMU0501 REF: 3
BCMU0501
-
BCMU0029 Brake Pedal – Assembly 50cc – With Toe Piece quantity
+
4A Brake Pedal – Assembly 50cc – With Toe Piece BCMU0029 REF: 4A
BCMU0029
-
BCMU0023T Toe Piece quantity
+
4B Toe Piece BCMU0023T REF: 4B
BCMU0023T
-
HCBC0501 M5x12mm Socket Head Cap Screw quantity
+
4C M5x12mm Socket Head Cap Screw HCBC0501 REF: 4C
HCBC0501
-
BCDCBU01 Bushing Rear Brake Pedal quantity
+
5 Bushing Rear Brake Pedal BCDCBU01 REF: 5
BCDCBU01
-
BCMUSP02 Brake Return Spring quantity
+
6 Brake Return Spring BCMUSP02 REF: 6
BCMUSP02
-
BCMU0015A Brake Clevis quantity
+
7 Brake Clevis BCMU0015A REF: 7
BCMU0015A
-
BCMU0015B Brake Retaining Spring Pin quantity
+
8 Brake Retaining Spring Pin BCMU0015B REF: 8
BCMU0015B
-
HCNS0601 M6 Nut quantity
+
9 M6 Nut HCNS0601 REF: 9
HCNS0601
-
BCMU0045 Carrier – Brake quantity
+
10 Carrier – Brake BCMU0045 REF: 10
BCMU0045
-
HCBC0602 M6x20mm Socket Head Cap Screw (2 Req’d) quantity
+
11 M6x20mm Socket Head Cap Screw (2 Req’d) HCBC0602 REF: 11
HCBC0602
-
HCBF0620 M6x20 Flange Head Bolt quantity
+
12 M6x20 Flange Head Bolt HCBF0620 REF: 12
HCBF0620
-
HCCC0000 Brake Hose Clamp quantity
+
13 Brake Hose Clamp HCCC0000 REF: 13
HCCC0000
-
HCPP0832 Brake Hose Clamp Fastener quantity
+
14 Brake Hose Clamp Fastener HCPP0832 REF: 14
HCPP0832
-
BCMU0222 Brake Rotor quantity
+
15 Brake Rotor BCMU0222 REF: 15
BCMU0222
-
HCBC0514 M5x14mm Socket Head Cap Screw (5 Req’d) quantity
+
16 M5x14mm Socket Head Cap Screw (5 Req’d) HCBC0514 REF: 16
HCBC0514
-
HCBC0604 M6x35mm Socket Head Cap Screw quantity
+
17 M6x35mm Socket Head Cap Screw HCBC0604 REF: 17
HCBC0604
-
BACJ0006 Master Cylinder – Rear quantity
+
18 Master Cylinder – Rear BACJ0006 REF: 18
BACJ0006
-
BCMU0061B Replacement Brake Hose – JR & P3 quantity
+
19 Replacement Brake Hose – JR & P3 BCMU0061B REF: 19
BCMU0061B
-
BAMU0010A Caliper Assembly – Rear Brake – Card 2 Piston - Alum quantity
+
20 Caliper Assembly – Rear Brake – Card 2 Piston - Alum BAMU0010A REF: 20
BAMU0010A
-
BCC60071B Brake – Rubber Cap quantity
+
21 Brake – Rubber Cap BCC60071B REF: 21
BCC60071B
-
BKMU0009 Pad Set Organic w Bolt and Clip quantity
+
Accessory Pad Set Organic w Bolt and Clip BKMU0009 REF: Accessory
BKMU0009
-
BCMU0038 Spring - Brake Pad Return quantity
+
Accessory Spring - Brake Pad Return BCMU0038 REF: Accessory
BCMU0038
-
BKMU0006A Piston & Seal Kit – Card Caliper - Aluminum quantity
+
Accessory Piston & Seal Kit – Card Caliper - Aluminum BKMU0006A REF: Accessory
BKMU0006A
-
BKMU0008 Bleed Screw Kit – Card quantity
+
Accessory Bleed Screw Kit – Card BKMU0008 REF: Accessory
BKMU0008
-
BCC60034 Rubber Cap Only - Bleed Screw quantity
+
Accessory Rubber Cap Only - Bleed Screw BCC60034 REF: Accessory
BCC60034
-
HCBB0640 Brake Plunger Bolt – JR Only quantity
+
Accessory Brake Plunger Bolt – JR Only HCBB0640 REF: Accessory
HCBB0640
-
BKMU0013 Cap & Diaphragm Kit – Master Cylinder quantity
+
Accessory Cap & Diaphragm Kit – Master Cylinder BKMU0013 REF: Accessory
BKMU0013
-
BKMU0014 Rebuild Kit – Rear Master Cylinder 2024 – Captured quantity
+
Accessory Rebuild Kit – Rear Master Cylinder 2024 – Captured BKMU0014 REF: Accessory
BKMU0014
-
BKMU0007 Banjo Bolt and Washer Kit – Card quantity
+
Accessory Banjo Bolt and Washer Kit – Card BKMU0007 REF: Accessory
BKMU0007
-
BCMU0014 Caliper Adjustment Shims 6mm ID quantity
+
Accessory Caliper Adjustment Shims 6mm ID BCMU0014 REF: Accessory
BCMU0014
-
BKMU0003 Bleed Kit (Multiple Syringes, Fittings & Hose) quantity
+
Tool Bleed Kit (Multiple Syringes, Fittings & Hose) BKMU0003 REF: Tool
BKMU0003
