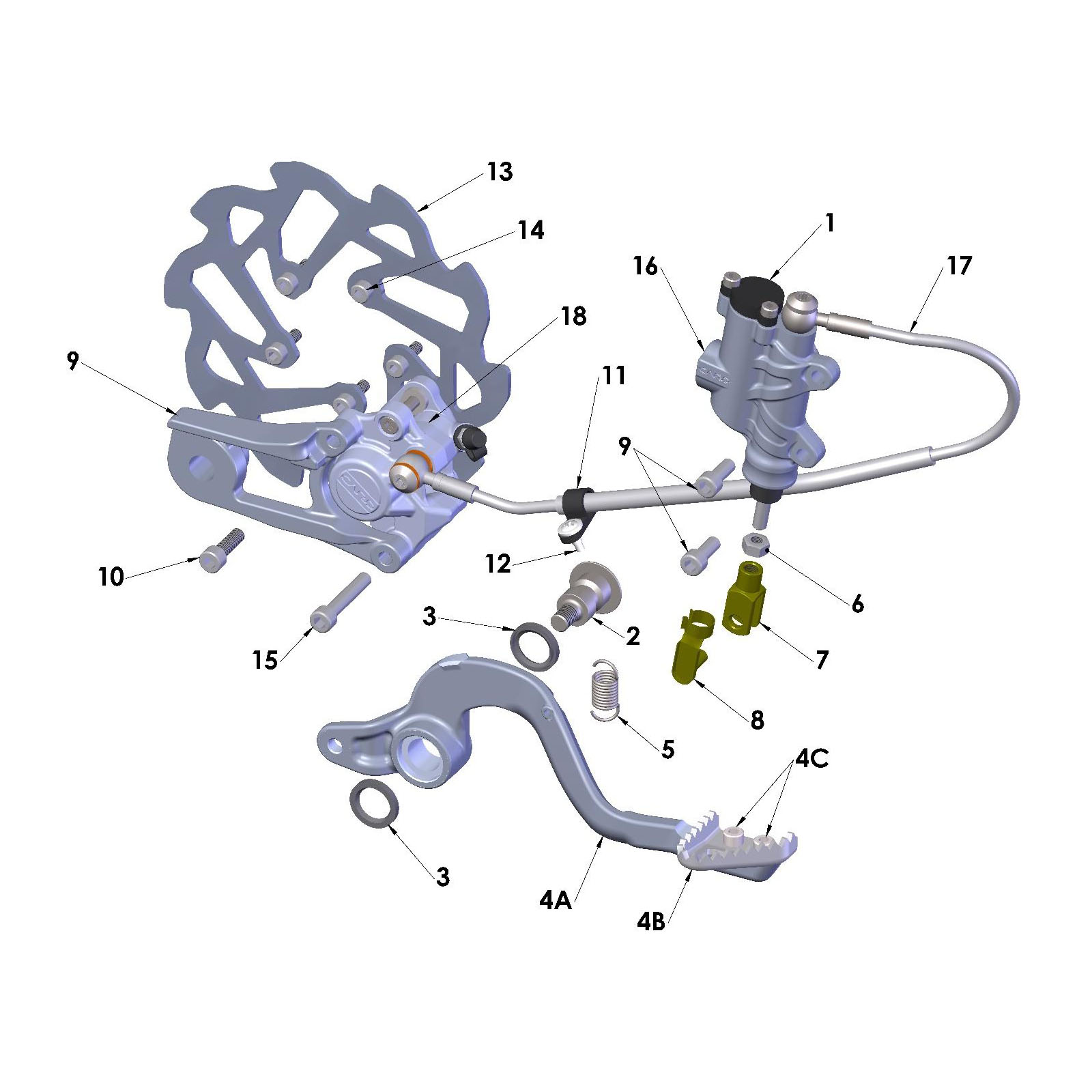

BACS0002 Brake System – Rear (M/C-Line-Caliper) quantity
1 Brake System – Rear (M/C-Line-Caliper) BACS0002 REF: 1
BACS0002
BCMU0027 Brake Pedal Pivot Bolt quantity
2 Brake Pedal Pivot Bolt BCMU0027 REF: 2
BCMU0027
BCMU0501 Seal – Brake Pedal (2 Req’d) quantity
3 Seal – Brake Pedal (2 Req’d) BCMU0501 REF: 3
BCMU0501
BCMU0069 Brake Pedal – Assembly 50cc – With Toe Piece quantity
4A Brake Pedal – Assembly 50cc – With Toe Piece BCMU0069 REF: 4A
BCMU0069
BCMU0023T Toe Piece quantity
4B Toe Piece BCMU0023T REF: 4B
BCMU0023T
HCBC0501 M5x12mm Socket Head Cap Screw quantity
4C M5x12mm Socket Head Cap Screw HCBC0501 REF: 4C
HCBC0501
BCMUSP01 Brake Return Spring quantity
5 Brake Return Spring BCMUSP01 REF: 5
BCMUSP01
HCNS0601 M6 Nut quantity
6 M6 Nut HCNS0601 REF: 6
HCNS0601
BCMU0015A Brake Clevis quantity
7 Brake Clevis BCMU0015A REF: 7
BCMU0015A
BCMU0015B Brake Retaining Spring Pin quantity
8 Brake Retaining Spring Pin BCMU0015B REF: 8
BCMU0015B
BCMU0045 Carrier – Brake quantity
9 Carrier – Brake BCMU0045 REF: 9
BCMU0045
HCBC0602 M6x20mm Socket Head Cap Screw (2 Req’d) quantity
10 M6x20mm Socket Head Cap Screw (2 Req’d) HCBC0602 REF: 10
HCBC0602
HCCC0000 Brake Hose Clamp quantity
11 Brake Hose Clamp HCCC0000 REF: 11
HCCC0000
HCPP0832 Brake Hose Clamp Fastener quantity
12 Brake Hose Clamp Fastener HCPP0832 REF: 12
HCPP0832
BCMU0222 Brake Rotor quantity
13 Brake Rotor BCMU0222 REF: 13
BCMU0222
HCBC0514 M5x14mm Socket Head Cap Screw (5 Req’d) quantity
14 M5x14mm Socket Head Cap Screw (5 Req’d) HCBC0514 REF: 14
HCBC0514
HCBF0635 M6x35mm Socket Head Cap Screw quantity
15 M6x35mm Socket Head Cap Screw HCBF0635 REF: 15
HCBF0635
BAC60015 Master Cylinder - Rear quantity
16 Master Cylinder - Rear BAC60015 REF: 16
BAC60015
BCMU0047 Replacement Brake Hose quantity
17 Replacement Brake Hose BCMU0047 REF: 17
BCMU0047
BAMU0010A Caliper Assembly – Rear Brake – Card 2 Piston - Alum quantity
18 Caliper Assembly – Rear Brake – Card 2 Piston - Alum BAMU0010A REF: 18
BAMU0010A
BKMU0009 Pad Set Organic w Bolt and Clip quantity
Accessory Pad Set Organic w Bolt and Clip BKMU0009 REF: Accessory
BKMU0009
BCMU0038 Spring - Brake Pad Return quantity
Accessory Spring - Brake Pad Return BCMU0038 REF: Accessory
BCMU0038
BKMU0006A Piston & Seal Kit – Card Caliper - Aluminum quantity
Accessory Piston & Seal Kit – Card Caliper - Aluminum BKMU0006A REF: Accessory
BKMU0006A
BKMU0008 Bleed Screw Kit – Card quantity
Accessory Bleed Screw Kit – Card BKMU0008 REF: Accessory
BKMU0008
BCC60034 Rubber Cap Only - Bleed Screw quantity
Accessory Rubber Cap Only - Bleed Screw BCC60034 REF: Accessory
BCC60034
HCBB0635 Brake Plunger Bolt quantity
Accessory Brake Plunger Bolt HCBB0635 REF: Accessory
HCBB0635
BKMU0013 Cap & Diaphragm Kit – Master Cylinder quantity
Accessory Cap & Diaphragm Kit – Master Cylinder BKMU0013 REF: Accessory
BKMU0013
BKMU0014 Rebuild Kit – Rear Master Cylinder 2024 – Captured quantity
Accessory Rebuild Kit – Rear Master Cylinder 2024 – Captured BKMU0014 REF: Accessory
BKMU0014
BKMU0007 Banjo Bolt and Washer Kit – Card quantity
Accessory Banjo Bolt and Washer Kit – Card BKMU0007 REF: Accessory
BKMU0007
BCMU0014 Caliper Adjustment Shims 6mm ID quantity
Accessory Caliper Adjustment Shims 6mm ID BCMU0014 REF: Accessory
BCMU0014
BKMU0003 Bleed Kit (Multiple Syringes, Fittings & Hose) quantity
Tool Bleed Kit (Multiple Syringes, Fittings & Hose) BKMU0003 REF: Tool
BKMU0003
