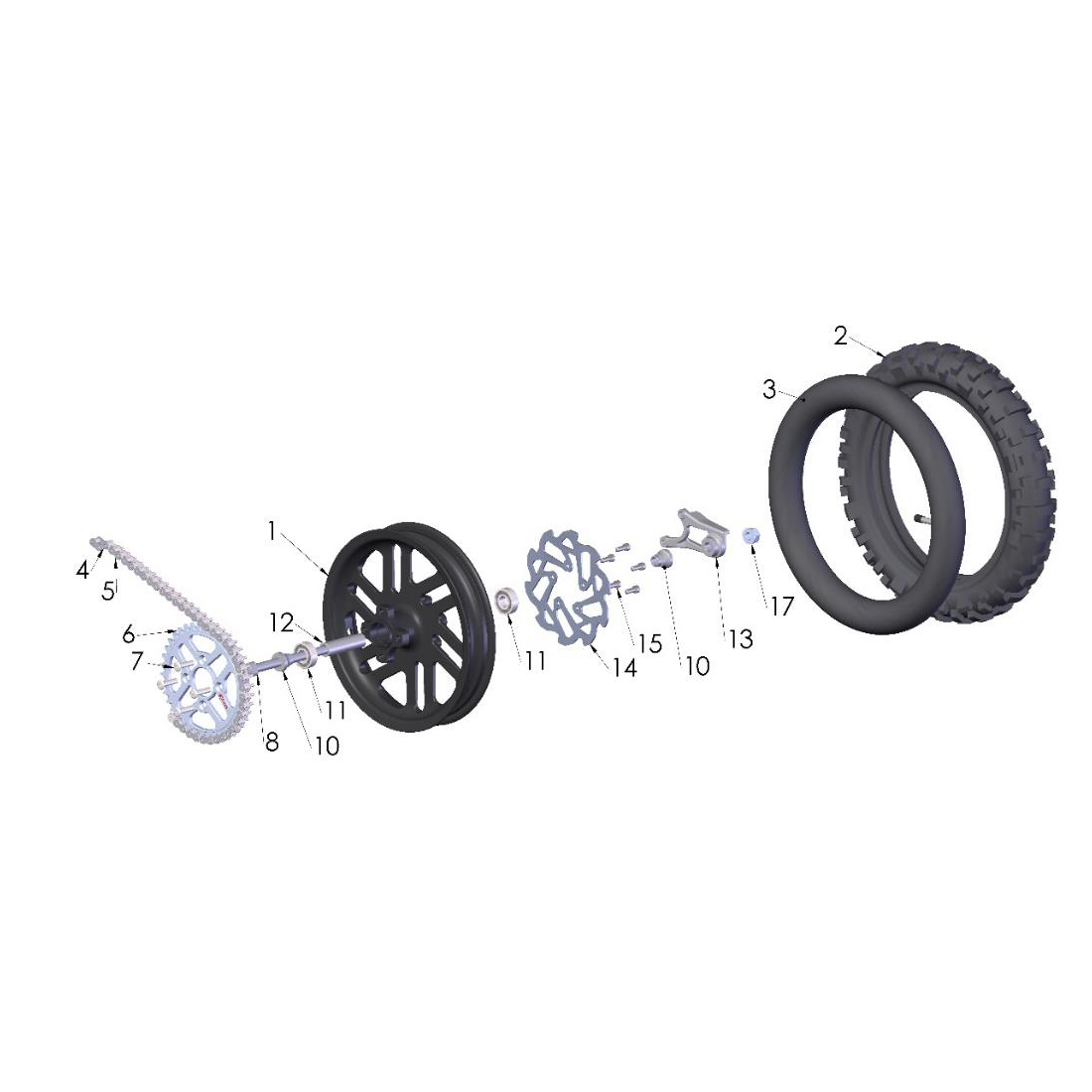

WAMUR021BLK Rear Wheel w/Bearings – Black quantity
+
1 Rear Wheel w/Bearings – Black WAMUR021BLK REF: 1
WAMUR021BLK
-
WCMU1075D32 Tire - Rear - 70/100-10 - Dunlop MX3S quantity
+
2 Tire - Rear - 70/100-10 - Dunlop MX3S WCMU1075D32 REF: 2
WCMU1075D32
-
WCMUTU10 Tube 10” quantity
+
3 Tube 10” WCMUTU10 REF: 3
WCMUTU10
-
PCMU0001 Master Link 420 quantity
+
4 Master Link 420 PCMU0001 REF: 4
PCMU0001
-
PCMU0088 Chain 420 x 88 quantity
+
5 Chain 420 x 88 PCMU0088 REF: 5
PCMU0088
-
PCC50138 38T Sprocket (Standard) 420 quantity
+
6 38T Sprocket (Standard) 420 PCC50138 REF: 6
PCC50138
-
PCC501xx Sprocket xx – Denotes Teeth – Range of Teeth (34-45) quantity
+
6A Sprocket xx – Denotes Teeth – Range of Teeth (34-45) PCC501xx REF: 6A
PCC501xx
-
HCSP0701 Sprocket Bolt – M7 quantity
+
7 Sprocket Bolt – M7 HCSP0701 REF: 7
HCSP0701
-
HCWF0701 7mm Flat Washer (4 Req’d) quantity
+
7A 7mm Flat Washer (4 Req’d) HCWF0701 REF: 7A
HCWF0701
-
HCNL0701 M7 Locknut (4 Req’d) quantity
+
7B M7 Locknut (4 Req’d) HCNL0701 REF: 7B
HCNL0701
-
WCMU0016 Bolt – Axle – CX50 quantity
+
8 Bolt – Axle – CX50 WCMU0016 REF: 8
WCMU0016
-
WCMU0101 Wheel Spacer (2 Req’d) quantity
+
10 Wheel Spacer (2 Req’d) WCMU0101 REF: 10
WCMU0101
-
WCMU0120 Wheel Bearing (2 Req’d) quantity
+
11 Wheel Bearing (2 Req’d) WCMU0120 REF: 11
WCMU0120
-
WCMU0041 Wheel Bearing Spacer quantity
+
12 Wheel Bearing Spacer WCMU0041 REF: 12
WCMU0041
-
BCMU0045 Carrier – Brake quantity
+
13 Carrier – Brake BCMU0045 REF: 13
BCMU0045
-
BCMU0222 Brake Rotor quantity
+
14 Brake Rotor BCMU0222 REF: 14
BCMU0222
-
HCBC0514 M5x14mm Socket Head Cap Screw (5 Req’d) quantity
+
15 M5x14mm Socket Head Cap Screw (5 Req’d) HCBC0514 REF: 15
HCBC0514
-
HCWF1202 Axle Washer quantity
+
16 Axle Washer HCWF1202 REF: 16
HCWF1202
-
HCNL1201 M12 Swingarm Lock Nut quantity
+
17 M12 Swingarm Lock Nut HCNL1201 REF: 17
HCNL1201
-
HKMU0002 Bolt Kit – Rear Sprocket quantity
+
Accessory Bolt Kit – Rear Sprocket HKMU0002 REF: Accessory
HKMU0002
