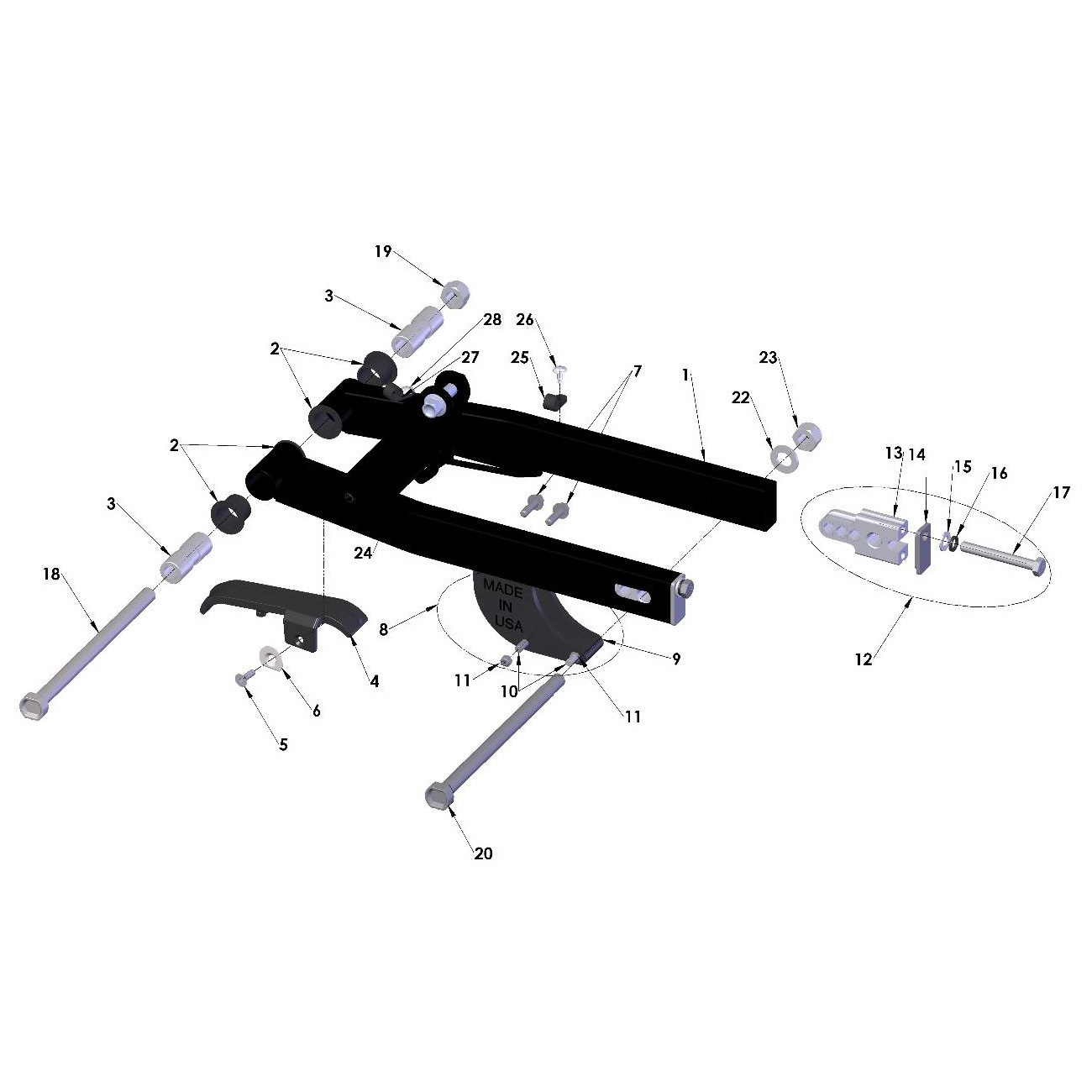

GAMU2017B Swingarm - Black quantity
+
1 Swingarm - Black GAMU2017B REF: 1
GAMU2017B
-
GCMU0001 Swingarm Bushing (4 Req’d) quantity
+
2 Swingarm Bushing (4 Req’d) GCMU0001 REF: 2
GCMU0001
-
GCCS0001 Spacer - Pivot Tube (2 Req’d) quantity
+
3 Spacer - Pivot Tube (2 Req’d) GCCS0001 REF: 3
GCCS0001
-
GCMU0041 Swingarm Chain Guard - CX50 - with Mohawk and Foot quantity
+
4 Swingarm Chain Guard - CX50 - with Mohawk and Foot GCMU0041 REF: 4
GCMU0041
-
HCFH0512 M5x12mm Flat Head Screw quantity
+
5 M5x12mm Flat Head Screw HCFH0512 REF: 5
HCFH0512
-
HCWF0501 5mm Flat Washer (2 Req’d) quantity
+
6 5mm Flat Washer (2 Req’d) HCWF0501 REF: 6
HCWF0501
-
HCBF0620 M6x20 Flange Head Bolt quantity
+
7 M6x20 Flange Head Bolt HCBF0620 REF: 7
HCBF0620
-
PAKG0001 Chain Guide Assembly Complete quantity
+
8 Chain Guide Assembly Complete PAKG0001 REF: 8
PAKG0001
-
PCKG0004 Bottom Chain Slider quantity
+
9 Bottom Chain Slider PCKG0004 REF: 9
PCKG0004
-
HCBF0635 M6x35mm Socket Head Cap Screw quantity
+
10 M6x35mm Socket Head Cap Screw HCBF0635 REF: 10
HCBF0635
-
HCNL0601 M6 Nylock Nut (2 Req’d) quantity
+
11 M6 Nylock Nut (2 Req’d) HCNL0601 REF: 11
HCNL0601
-
FAMU0005 Wheel Pull Assembly (Block, Cap, Bolt and Washer) quantity
+
12 Wheel Pull Assembly (Block, Cap, Bolt and Washer) FAMU0005 REF: 12
FAMU0005
-
FCMU0203 Wheel Pull quantity
+
13 Wheel Pull FCMU0203 REF: 13
FCMU0203
-
FCMU0202 Wheel Pull Endcap quantity
+
14 Wheel Pull Endcap FCMU0202 REF: 14
FCMU0202
-
HCWF0802 8mm Flat Washer quantity
+
15 8mm Flat Washer HCWF0802 REF: 15
HCWF0802
-
HCWL0802 8mm Lock Washer quantity
+
16 8mm Lock Washer HCWL0802 REF: 16
HCWL0802
-
HCBH0810 M8X65mm Wheel Pull Bolt quantity
+
17 M8X65mm Wheel Pull Bolt HCBH0810 REF: 17
HCBH0810
-
HCBH1203 Bolt – Swingarm Pivot – CX50 quantity
+
18 Bolt – Swingarm Pivot – CX50 HCBH1203 REF: 18
HCBH1203
-
HCNL1201 M12 Swingarm Lock Nut quantity
+
19 M12 Swingarm Lock Nut HCNL1201 REF: 19
HCNL1201
-
WCMU0016 Bolt – Axle – CX50 quantity
+
20 Bolt – Axle – CX50 WCMU0016 REF: 20
WCMU0016
-
HCNL1201 M12 Swingarm Lock Nut quantity
+
22 M12 Swingarm Lock Nut HCNL1201 REF: 22
HCNL1201
-
HCNL1201 M12 Swingarm Lock Nut quantity
+
23 M12 Swingarm Lock Nut HCNL1201 REF: 23
HCNL1201
-
HCBF1039 M10x40mm Flange Head Bolt quantity
+
24 M10x40mm Flange Head Bolt HCBF1039 REF: 24
HCBF1039
-
HCCC0006 Clamp - Brake Hose quantity
+
25 Clamp - Brake Hose HCCC0006 REF: 25
HCCC0006
-
HCPP0832 Brake Hose Clamp Fastener quantity
+
26 Brake Hose Clamp Fastener HCPP0832 REF: 26
HCPP0832
-
HCCC0005 Guide – Brake Hose (2 Req’d) quantity
+
27 Guide – Brake Hose (2 Req’d) HCCC0005 REF: 27
HCCC0005
-
HCPP0834 #8X3/4 Self Taping Screw (2 Req’d) quantity
+
28 #8X3/4 Self Taping Screw (2 Req’d) HCPP0834 REF: 28
HCPP0834
