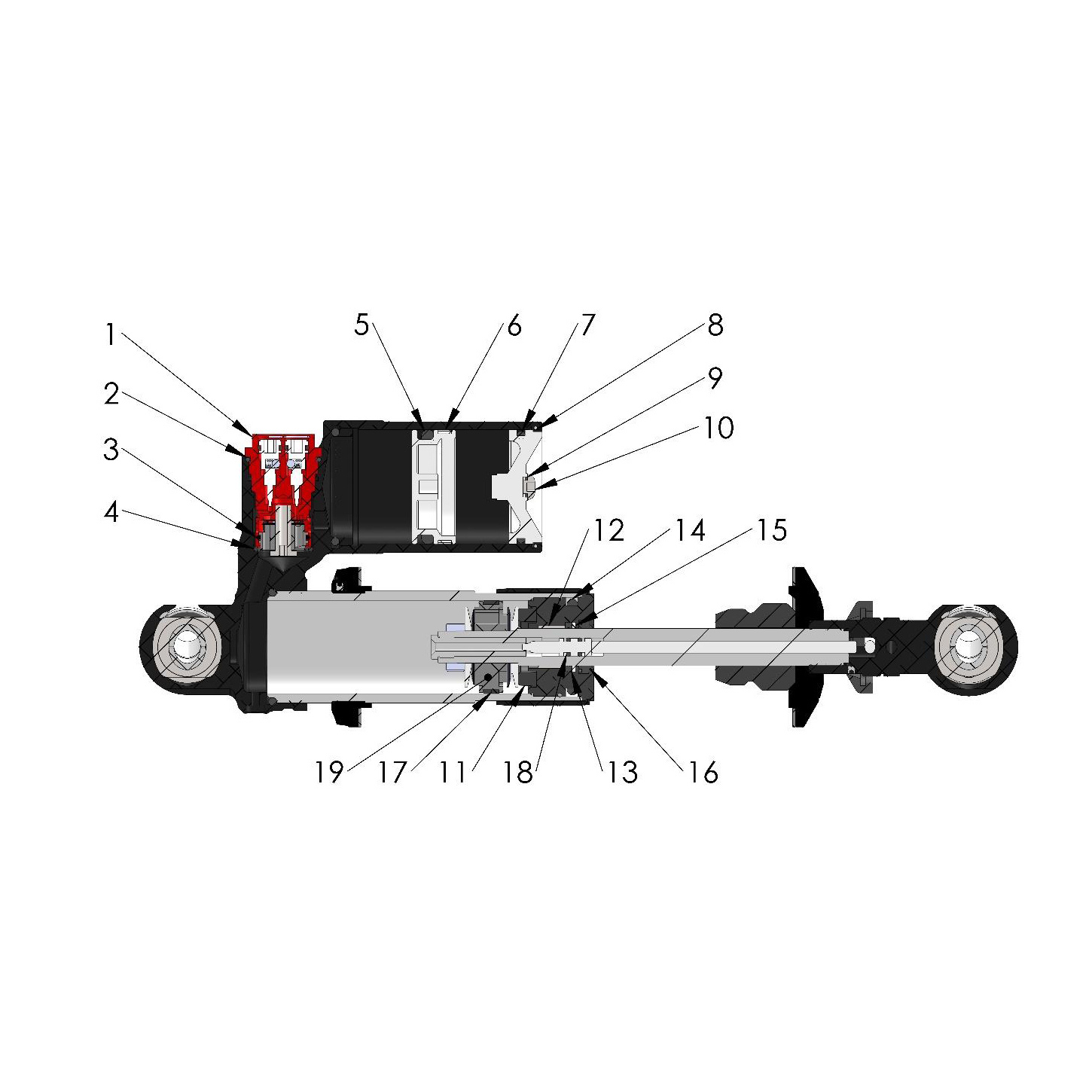

SAMU0001 Compression Adjuster Assembly – Complete quantity
1 Compression Adjuster Assembly – Complete SAMU0001 REF: 1
SAMU0001
ZCMUB020 O-Ring – Compression Adjuster - Outside quantity
2 O-Ring – Compression Adjuster - Outside ZCMUB020 REF: 2
ZCMUB020
KCMU0021 O-Ring - Fork - Base Valve quantity
3 O-Ring - Fork - Base Valve KCMU0021 REF: 3
KCMU0021
ZCMUOR37 O-Ring - Compression Adjuster - Inside quantity
4 O-Ring - Compression Adjuster - Inside ZCMUOR37 REF: 4
ZCMUOR37
SCMU0051 O-Ring - IFP quantity
5 O-Ring - IFP SCMU0051 REF: 5
SCMU0051
SCMU0052 IFP Seal Band quantity
6 IFP Seal Band SCMU0052 REF: 6
SCMU0052
SCMU0033 O-Ring Shock Base quantity
7 O-Ring Shock Base SCMU0033 REF: 7
SCMU0033
SCMU0050 Reservoir Cap Retainer Ring quantity
8 Reservoir Cap Retainer Ring SCMU0050 REF: 8
SCMU0050
SCMU0035 O-Ring Charge Cap quantity
9 O-Ring Charge Cap SCMU0035 REF: 9
SCMU0035
HCBB0506 M5X6mm Long Button Head Stainless Steel quantity
10 M5X6mm Long Button Head Stainless Steel HCBB0506 REF: 10
HCBB0506
SCMU0044 Seal Head Bumper quantity
11 Seal Head Bumper SCMU0044 REF: 11
SCMU0044
SCMU0048 Shaft Bushing quantity
12 Shaft Bushing SCMU0048 REF: 12
SCMU0048
SCMU0046 X-Ring Seal quantity
13 X-Ring Seal SCMU0046 REF: 13
SCMU0046
SCMU0034 O-Ring Seal Head quantity
14 O-Ring Seal Head SCMU0034 REF: 14
SCMU0034
SCMU0047 Spacer - X-Ring quantity
15 Spacer - X-Ring SCMU0047 REF: 15
SCMU0047
SCMU0045 Dust Seal quantity
16 Dust Seal SCMU0045 REF: 16
SCMU0045
SCC60014 Piston Band quantity
17 Piston Band SCC60014 REF: 17
SCC60014
SCMU0059 O-Ring Rebound Pin quantity
18 O-Ring Rebound Pin SCMU0059 REF: 18
SCMU0059
SCMU0091 Piston - Shock quantity
19 Piston - Shock SCMU0091 REF: 19
SCMU0091
SCCM0001 Seal Head – Without Components quantity
– Seal Head – Without Components SCCM0001 REF: Not Shown
SCCM0001
SKMU0002 Seal Head - Complete quantity
– Seal Head - Complete SKMU0002 REF: Not Shown
SKMU0002
SKMU0003 Rebuild Kit – Card Shock quantity
Accessory Rebuild Kit – Card Shock SKMU0003 REF: Accessory
SKMU0003
