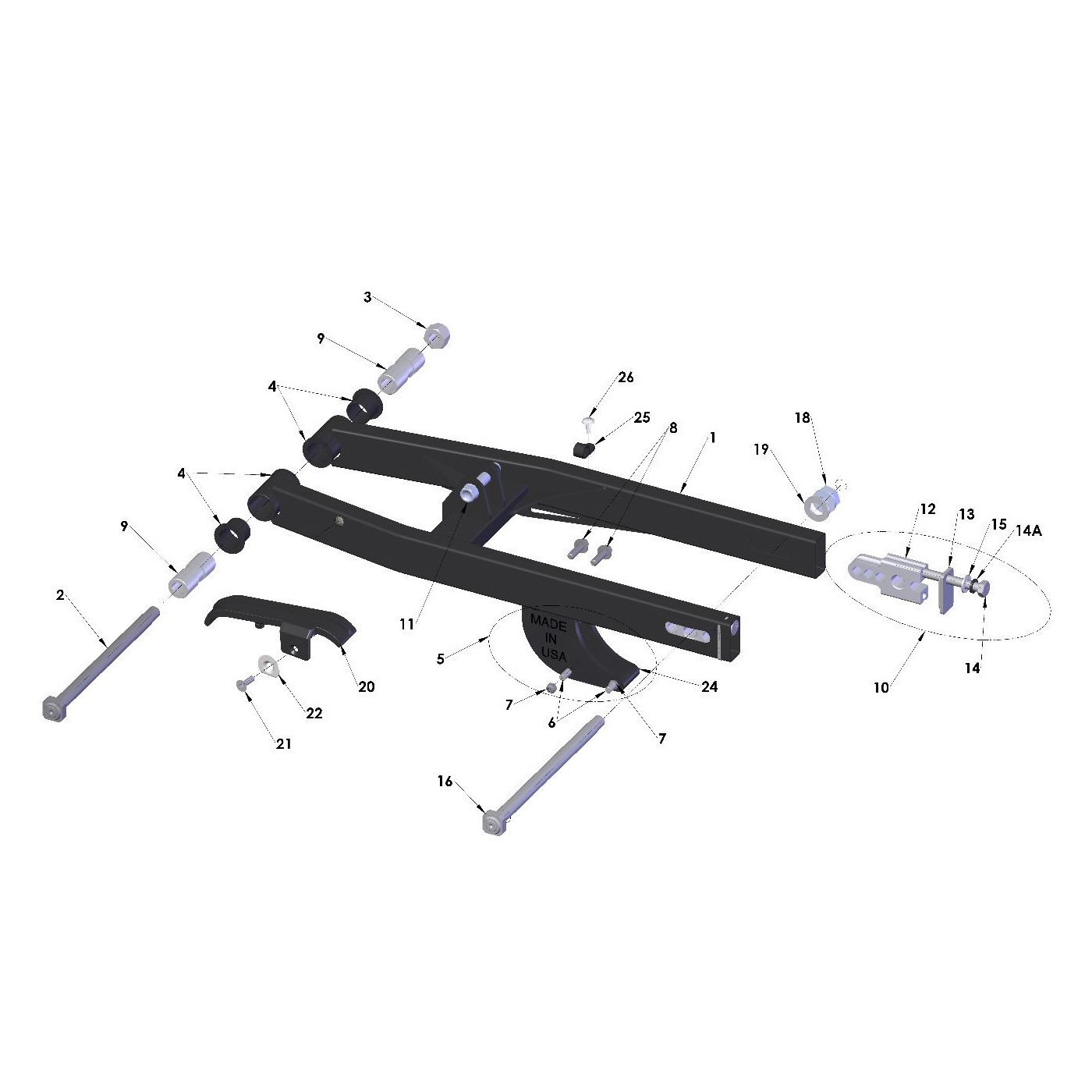

GACS2021 Swingarm quantity
1 Swingarm GACS2021 REF: 1
GACS2021
GCMU0021 Bolt - Ti - Swingarm Pivot and Axle - CX50 quantity
2 Bolt - Ti - Swingarm Pivot and Axle - CX50 GCMU0021 REF: 2
GCMU0021
HCNL1201 M12 Swingarm Lock Nut quantity
3 M12 Swingarm Lock Nut HCNL1201 REF: 3
HCNL1201
GCMU0001 Swingarm Bushing (4 Req’d) quantity
4 Swingarm Bushing (4 Req’d) GCMU0001 REF: 4
GCMU0001
PAFW0001 Chain Guide Assembly Complete – Factory Works Edition quantity
5 Chain Guide Assembly Complete – Factory Works Edition PAFW0001 REF: 5
PAFW0001
HCBFT640 M6x40mm Flat Head Screw (2 Req’d) quantity
6 M6x40mm Flat Head Screw (2 Req’d) HCBFT640 REF: 6
HCBFT640
HCNL0601 M6 Nylock Nut (2 Req’d) quantity
7 M6 Nylock Nut (2 Req’d) HCNL0601 REF: 7
HCNL0601
HCBF0620 M6x20 Flange Head Bolt quantity
8 M6x20 Flange Head Bolt HCBF0620 REF: 8
HCBF0620
GCCS0015 Swingarm Pivot Tube Spacer 2021 (2 Req’d) quantity
9 Swingarm Pivot Tube Spacer 2021 (2 Req’d) GCCS0015 REF: 9
GCCS0015
FAMU0005 Wheel Pull Assembly (Block, Cap, Bolt and Washer) quantity
10 Wheel Pull Assembly (Block, Cap, Bolt and Washer) FAMU0005 REF: 10
FAMU0005
HCBF1040 M10x40mm Lower Shock Mount Bolt quantity
11 M10x40mm Lower Shock Mount Bolt HCBF1040 REF: 11
HCBF1040
FCMU0203 Wheel Pull quantity
12 Wheel Pull FCMU0203 REF: 12
FCMU0203
FCMU0202 Wheel Pull Endcap quantity
13 Wheel Pull Endcap FCMU0202 REF: 13
FCMU0202
HCBH0810 M8X65mm Wheel Pull Bolt quantity
14 M8X65mm Wheel Pull Bolt HCBH0810 REF: 14
HCBH0810
HCWL0801 8mm Lock Washer quantity
14A 8mm Lock Washer HCWL0801 REF: 14A
HCWL0801
HCWF0801 8mm Flat Washer quantity
15 8mm Flat Washer HCWF0801 REF: 15
HCWF0801
GCMU0020 Bolt - Ti - Swingarm Pivot and Axle - CX50 quantity
16 Bolt - Ti - Swingarm Pivot and Axle - CX50 GCMU0020 REF: 16
GCMU0020
WCMU0038 Nut - 12mm Acorn - Alum quantity
18 Nut - 12mm Acorn - Alum WCMU0038 REF: 18
WCMU0038
HCWF1202 Axle Washer quantity
19 Axle Washer HCWF1202 REF: 19
HCWF1202
GCMU0041 Swingarm Chain Guard - CX50 - with Mohawk and Foot quantity
20 Swingarm Chain Guard - CX50 - with Mohawk and Foot GCMU0041 REF: 20
GCMU0041
HCFH0516 Flat Head Screw quantity
21 Flat Head Screw HCFH0516 REF: 21
HCFH0516
GCMU0038 Washer - Special quantity
22 Washer - Special GCMU0038 REF: 22
GCMU0038
HCNL0501 Lock Nut 5mm quantity
23 Lock Nut 5mm HCNL0501 REF: 23
HCNL0501
PCKG0004 Bottom Chain Slider quantity
24 Bottom Chain Slider PCKG0004 REF: 24
PCKG0004
HCCC0006 Clamp - Brake Hose quantity
25 Clamp - Brake Hose HCCC0006 REF: 25
HCCC0006
HCPP0832 Brake Hose Clamp Fastener quantity
26 Brake Hose Clamp Fastener HCPP0832 REF: 26
HCPP0832
