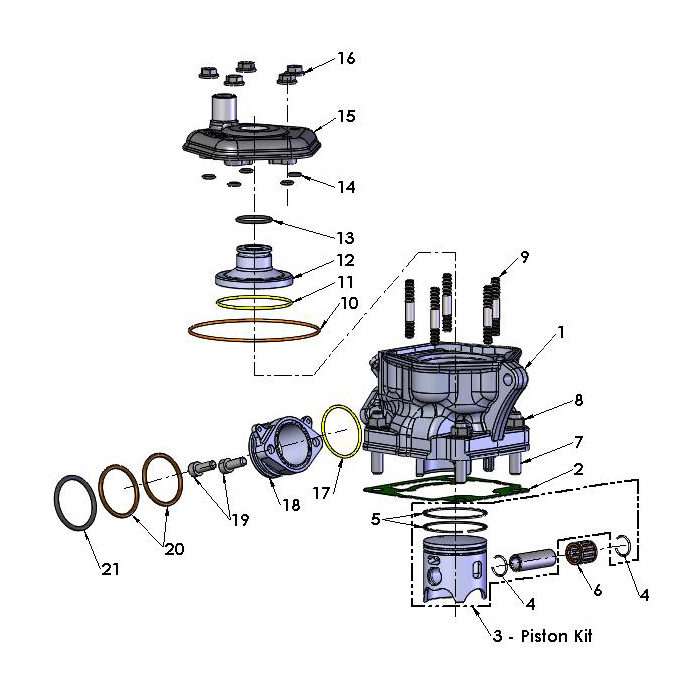

ECC60557 Cylinder Kit PV CX65 (Includes Piston Kit & Cylinder) quantity
1 Cylinder Kit PV CX65 (Includes Piston Kit & Cylinder) ECC60557 REF: 1
ECC60557
ZCC60302 Base Gasket 0.2mm Thick quantity
2 Base Gasket 0.2mm Thick ZCC60302 REF: 2
ZCC60302
ZCC60303 Base Gasket 0.3mm Thick quantity
2 Base Gasket 0.3mm Thick ZCC60303 REF: 2
ZCC60303
ZCC60304 Base Gasket 0.4mm Thick quantity
2 Base Gasket 0.4mm Thick ZCC60304 REF: 2
ZCC60304
ZCC60305 Base Gasket 0.5mm Thick quantity
2 Base Gasket 0.5mm Thick ZCC60305 REF: 2
ZCC60305
ZCC60306 Base Gasket 0.6mm Thick quantity
2 Base Gasket 0.6mm Thick ZCC60306 REF: 2
ZCC60306
ZCC60307 Base Gasket 0.7mm Thick quantity
2 Base Gasket 0.7mm Thick ZCC60307 REF: 2
ZCC60307
ZCC60308 Base Gasket 0.8mm Thick quantity
2 Base Gasket 0.8mm Thick ZCC60308 REF: 2
ZCC60308
ECC60208x Piston Kit (x Denotes Piston Size A, B, or C) quantity
3 Piston Kit (x Denotes Piston Size A, B, or C) ECC60208x REF: 3
ECC60208x
ECC60208WP Wrist Pin – Piston – 44.5mm Cast quantity
3 Wrist Pin – Piston – 44.5mm Cast ECC60208WP REF: 3
ECC60208WP
ECC60222 Snap Ring for Piston (2 Req’d) quantity
4 Snap Ring for Piston (2 Req’d) ECC60222 REF: 4
ECC60222
ECC60221 Piston Rings 44.5mm (2 per Set) quantity
5 Piston Rings 44.5mm (2 per Set) ECC60221 REF: 5
ECC60221
ECDC0061 Bearing, Wrist Pin quantity
6 Bearing, Wrist Pin ECDC0061 REF: 6
ECDC0061
ECC60109 Stud, Cylinder 8mm (4 Req’d) quantity
7 Stud, Cylinder 8mm (4 Req’d) ECC60109 REF: 7
ECC60109
HCNF0801 8mm Flange Nut (4 Req’d) quantity
8 8mm Flange Nut (4 Req’d) HCNF0801 REF: 8
HCNF0801
ECC60107 6mm Stud (5 Req’d) quantity
9 6mm Stud (5 Req’d) ECC60107 REF: 9
ECC60107
ZCC60009 O-Ring, Cylinder Head Large quantity
10 O-Ring, Cylinder Head Large ZCC60009 REF: 10
ZCC60009
ZCMUOR05 O-Ring Cylinder Head Medium - Yellow quantity
11 O-Ring Cylinder Head Medium - Yellow ZCMUOR05 REF: 11
ZCMUOR05
ECC60207 Cylinder Head Insert quantity
12 Cylinder Head Insert ECC60207 REF: 12
ECC60207
ZCMUOR23 O-Ring Cylinder Head Small quantity
13 O-Ring Cylinder Head Small ZCMUOR23 REF: 13
ZCMUOR23
ZCMUOR03 O-Ring Cylinder Stud (5 Req’d) quantity
14 O-Ring Cylinder Stud (5 Req’d) ZCMUOR03 REF: 14
ZCMUOR03
ECC60149 Cylinder Head Outer quantity
15 Cylinder Head Outer ECC60149 REF: 15
ECC60149
HCNF0601 6mm Flange Nut (5 Req’d) quantity
16 6mm Flange Nut (5 Req’d) HCNF0601 REF: 16
HCNF0601
ZCMUOR07 O-Ring, Exhaust Flange quantity
17 O-Ring, Exhaust Flange ZCMUOR07 REF: 17
ZCMUOR07
ECMU0262 Exhaust Flange quantity
18 Exhaust Flange ECMU0262 REF: 18
ECMU0262
HCBC0601 M6x16mm Socket Head Cap Screw (2 Req’d) quantity
19 M6x16mm Socket Head Cap Screw (2 Req’d) HCBC0601 REF: 19
HCBC0601
ZCMOTE11 O-Rings – Pipe to Flange (2 Req’d) quantity
20 O-Rings – Pipe to Flange (2 Req’d) ZCMOTE11 REF: 20
ZCMOTE11
ZCMUOR11 O-Ring – Pipe to Flange (1 Req’d) quantity
21 O-Ring – Pipe to Flange (1 Req’d) ZCMUOR11 REF: 21
ZCMUOR11
ZKMUOR14 O-Ring Kit – Top End – CX65 PV quantity
Not shown O-Ring Kit – Top End – CX65 PV ZKMUOR14 REF: Not shown
ZKMUOR14
EAC62022 Complete Engine - 2022 quantity
Not shown Complete Engine - 2022 EAC62022 REF: Not shown
EAC62022
