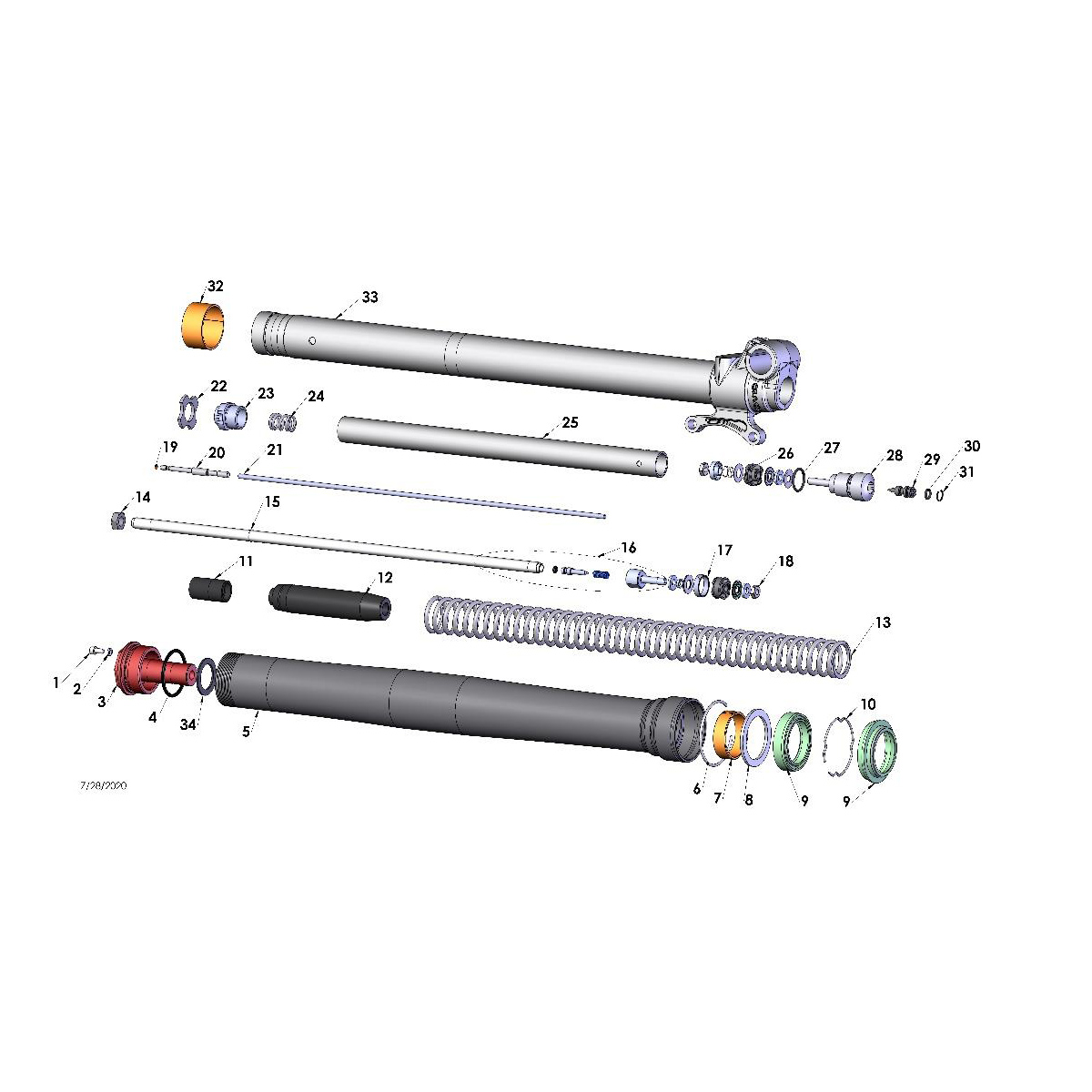

HCBC0408 M4x8mm Socket Head Cap Screw (2 Places) quantity
1 M4x8mm Socket Head Cap Screw (2 Places) HCBC0408 REF: 1
HCBC0408
ZCKG0001 Gasket, Bleed Screw Fork quantity
2 Gasket, Bleed Screw Fork ZCKG0001 REF: 2
ZCKG0001
KCC60044L Fork Cap quantity
3 Fork Cap KCC60044L REF: 3
KCC60044L
ZCC60011 O-Ring Fork Cap quantity
4 O-Ring Fork Cap ZCC60011 REF: 4
ZCC60011
KCC60037 Fork Outer Tube quantity
5 Fork Outer Tube KCC60037 REF: 5
KCC60037
KCC60043 Fork Outer Wear Ring Clip quantity
6 Fork Outer Wear Ring Clip KCC60043 REF: 6
KCC60043
KCC60041 Fork Guide Ring Bottom quantity
7 Fork Guide Ring Bottom KCC60041 REF: 7
KCC60041
KCC60047 Fork Seal Spacer quantity
8 Fork Seal Spacer KCC60047 REF: 8
KCC60047
KCC60039 Fork Seal & Swiper Kit - 37mm - CX65 quantity
9 Fork Seal & Swiper Kit - 37mm - CX65 KCC60039 REF: 9
KCC60039
KCC60066 Fork Seal Retainer Ring Clip quantity
10 Fork Seal Retainer Ring Clip KCC60066 REF: 10
KCC60066
KCC60067 Fork Jounce Bumper quantity
11 Fork Jounce Bumper KCC60067 REF: 11
KCC60067
KCC60064 Fork Spring Guide quantity
12 Fork Spring Guide KCC60064 REF: 12
KCC60064
KCC63726 Fork Spring .26 kg/mm (Single) quantity
13 Fork Spring .26 kg/mm (Single) KCC63726 REF: 13
KCC63726
KCC63724 Fork Spring .24 kg/mm (Single) quantity
13 Fork Spring .24 kg/mm (Single) KCC63724 REF: 13
KCC63724
KCC63728 Fork Spring .28 kg/mm (Single) quantity
13 Fork Spring .28 kg/mm (Single) KCC63728 REF: 13
KCC63728
HCNJ3824 Nut Jam 3/8-24 Class 8 quantity
14 Nut Jam 3/8-24 Class 8 HCNJ3824 REF: 14
HCNJ3824
KCC60068 Ring Clip - Fork Spring Guide Retainer quantity
15 Ring Clip - Fork Spring Guide Retainer KCC60068 REF: 15
KCC60068
KAC60003 Damper Rod Assembly quantity
16 Damper Rod Assembly KAC60003 REF: 16
KAC60003
KCCS0018 Seal - Fork Piston - Mid Valve quantity
17 Seal - Fork Piston - Mid Valve KCCS0018 REF: 17
KCCS0018
HCNJ0601 6mm Jam Nut quantity
18 6mm Jam Nut HCNJ0601 REF: 18
HCNJ0601
BCKG0033 O-Ring – 2mm ID quantity
19 O-Ring – 2mm ID BCKG0033 REF: 19
BCKG0033
KCC60052 Fork Adjustment Screw Top quantity
20 Fork Adjustment Screw Top KCC60052 REF: 20
KCC60052
KCC60049 Adjuster Pin quantity
21 Adjuster Pin KCC60049 REF: 21
KCC60049
KCC60042 Fork Spring Perch quantity
22 Fork Spring Perch KCC60042 REF: 22
KCC60042
KCMU0013 Cartridge Cap quantity
23 Cartridge Cap KCMU0013 REF: 23
KCMU0013
KCKG0050 Top Out Spring quantity
24 Top Out Spring KCKG0050 REF: 24
KCKG0050
KCKG0019 Cartridge Tube quantity
25 Cartridge Tube KCKG0019 REF: 25
KCKG0019
KCMU0021 O-Ring - Fork - Base Valve quantity
26 O-Ring - Fork - Base Valve KCMU0021 REF: 26
KCMU0021
ZCKGB017 O-Ring - Fork Bottom Plug quantity
27 O-Ring - Fork Bottom Plug ZCKGB017 REF: 27
ZCKGB017
KCC60069 Fork Bottom Plug – Adjustable quantity
28 Fork Bottom Plug – Adjustable KCC60069 REF: 28
KCC60069
KCC60048 Adjustment Screw – Fork Bottom Plug quantity
29 Adjustment Screw – Fork Bottom Plug KCC60048 REF: 29
KCC60048
ZCMUOR03 O-Ring Cylinder Stud (5 Req’d) quantity
30 O-Ring Cylinder Stud (5 Req’d) ZCMUOR03 REF: 30
ZCMUOR03
KCC60065 Fork Adjustment Screw Bottom Ring Clip quantity
31 Fork Adjustment Screw Bottom Ring Clip KCC60065 REF: 31
KCC60065
KCC60036 Fork Guide Ring Top quantity
32 Fork Guide Ring Top KCC60036 REF: 32
KCC60036
KAC60001 Fork Lower Brake Side (Not Sold Separately) quantity
33 Fork Lower Brake Side (Not Sold Separately) KAC60001 REF: 33
KAC60001
KCC60053 Fork Spring Pad 37mm quantity
34 Fork Spring Pad 37mm KCC60053 REF: 34
KCC60053
