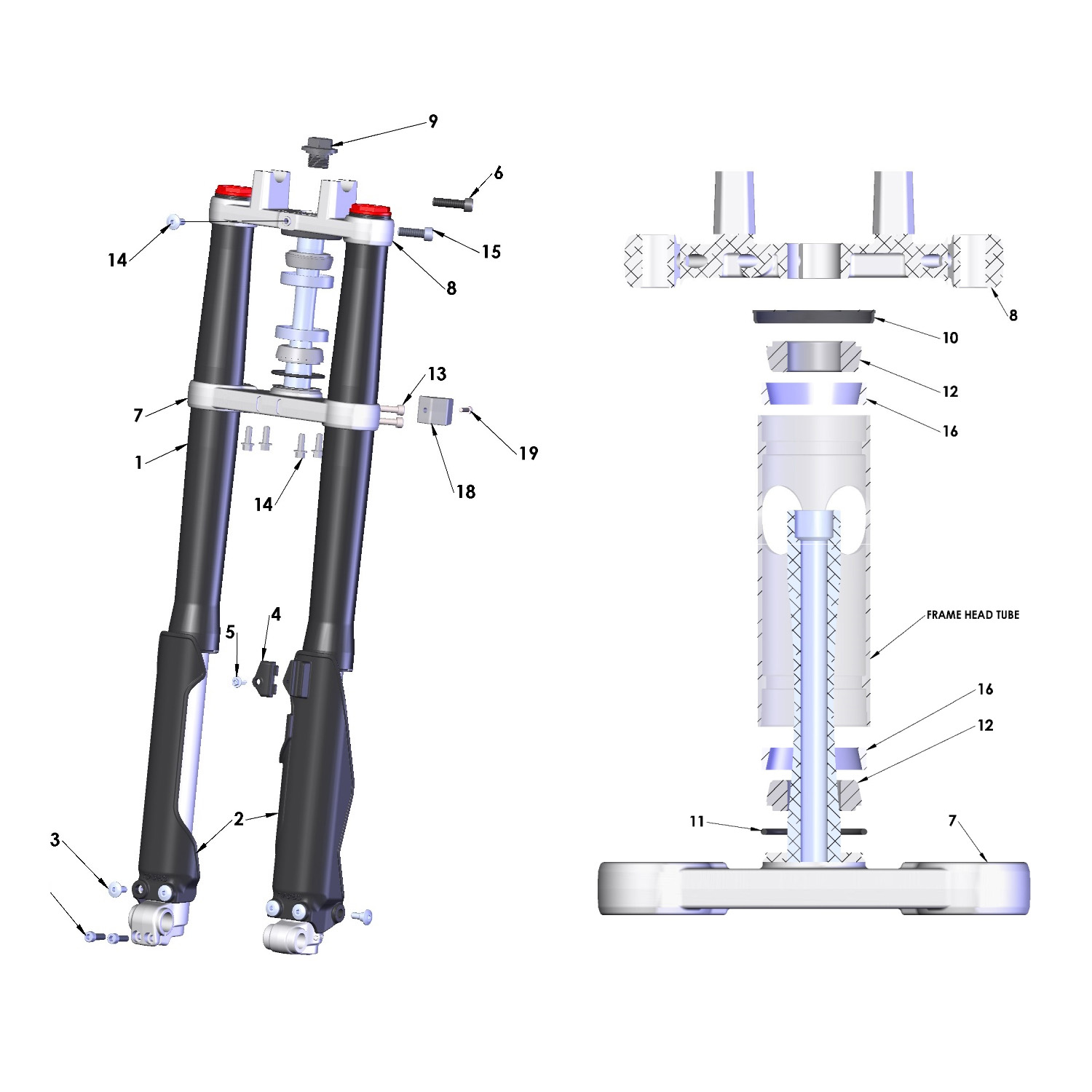

KACJ2018 Fork Assembly JR – Fork Legs Only quantity
1 Fork Assembly JR – Fork Legs Only KACJ2018 REF: 1
KACJ2018
KCMU0035FXX Fork Guard Set – Mega Flo Yellow (Stock) quantity
2 Fork Guard Set – Mega Flo Yellow (Stock) KCMU0035FXX REF: 2
KCMU0035FXX
KCMU0035 Fork Guard Set quantity
– Fork Guard Set KCMU0035 REF: Not Shown
KCMU0035
KCMU0035WHT Fork Guard Set – White quantity
– Fork Guard Set – White KCMU0035WHT REF: Not Shown
KCMU0035WHT
HCSP0610 Fork Guard Bolt – Front Number Plate Mount quantity
3 Fork Guard Bolt – Front Number Plate Mount HCSP0610 REF: 3
HCSP0610
KCMU0036 Clamp – Brake Line quantity
4 Clamp – Brake Line KCMU0036 REF: 4
KCMU0036
HCSP0004 Screw – Plascrew - Aluminum quantity
5 Screw – Plascrew - Aluminum HCSP0004 REF: 5
HCSP0004
HCBC0806 M8x30mm Socket Head Cap Screw (4 Req’d) quantity
6 M8x30mm Socket Head Cap Screw (4 Req’d) HCBC0806 REF: 6
HCBC0806
FAMU0020 Triple Clamp Bottom Assy, (Clamp & Stem) quantity
7 Triple Clamp Bottom Assy, (Clamp & Stem) FAMU0020 REF: 7
FAMU0020
FCMU0071BLK Triple Clamp Top - Black quantity
8 Triple Clamp Top - Black FCMU0071BLK REF: 8
FCMU0071BLK
FCMU0074 Bolt – Steering Stem quantity
9 Bolt – Steering Stem FCMU0074 REF: 9
FCMU0074
FCMU0079 Dust Cover (1 Req’d) quantity
10 Dust Cover (1 Req’d) FCMU0079 REF: 10
FCMU0079
FCMU0044 O-Ring (1 Req’d) quantity
11 O-Ring (1 Req’d) FCMU0044 REF: 11
FCMU0044
FCMU0004 Steering Head Bearing (2 Req’d) quantity
12 Steering Head Bearing (2 Req’d) FCMU0004 REF: 12
FCMU0004
HCBC0625 M6x25mm Socket Head Cap Screw (2 Req’d) quantity
13 M6x25mm Socket Head Cap Screw (2 Req’d) HCBC0625 REF: 13
HCBC0625
HCBF0620 M6x20 Flange Head Bolt quantity
14 M6x20 Flange Head Bolt HCBF0620 REF: 14
HCBF0620
HCBC0825 M8 x 25mm Socket Head Cap Screw quantity
15 M8 x 25mm Socket Head Cap Screw HCBC0825 REF: 15
HCBC0825
FCMU0011 Race – Steering Stem Bearing (2 Req’d) quantity
16 Race – Steering Stem Bearing (2 Req’d) FCMU0011 REF: 16
FCMU0011
HCBC0602 M6x20mm Socket Head Cap Screw (2 Req’d) quantity
17 M6x20mm Socket Head Cap Screw (2 Req’d) HCBC0602 REF: 17
HCBC0602
FCMU0175MP Steering Stop Bumper (2 Req’d) quantity
18 Steering Stop Bumper (2 Req’d) FCMU0175MP REF: 18
FCMU0175MP
HCBB1416 M4x16mm Button Head (2 Req’d) quantity
19 M4x16mm Button Head (2 Req’d) HCBB1416 REF: 19
HCBB1416
FKMU0008 Kit – Steering Stem Bearings, Races and Seals quantity
Accessory Kit – Steering Stem Bearings, Races and Seals FKMU0008 REF: Accessory
FKMU0008
MCMUTL44 Tool – Bearing and Seal Installer Assy quantity
Accessory Tool – Bearing and Seal Installer Assy MCMUTL44 REF: Accessory
MCMUTL44
