BAC60017 Assy – Front Brake System Complete - Front CX65 quantity
– Assy – Front Brake System Complete - Front CX65 BAC60017 REF: Not Shown
BAC60017

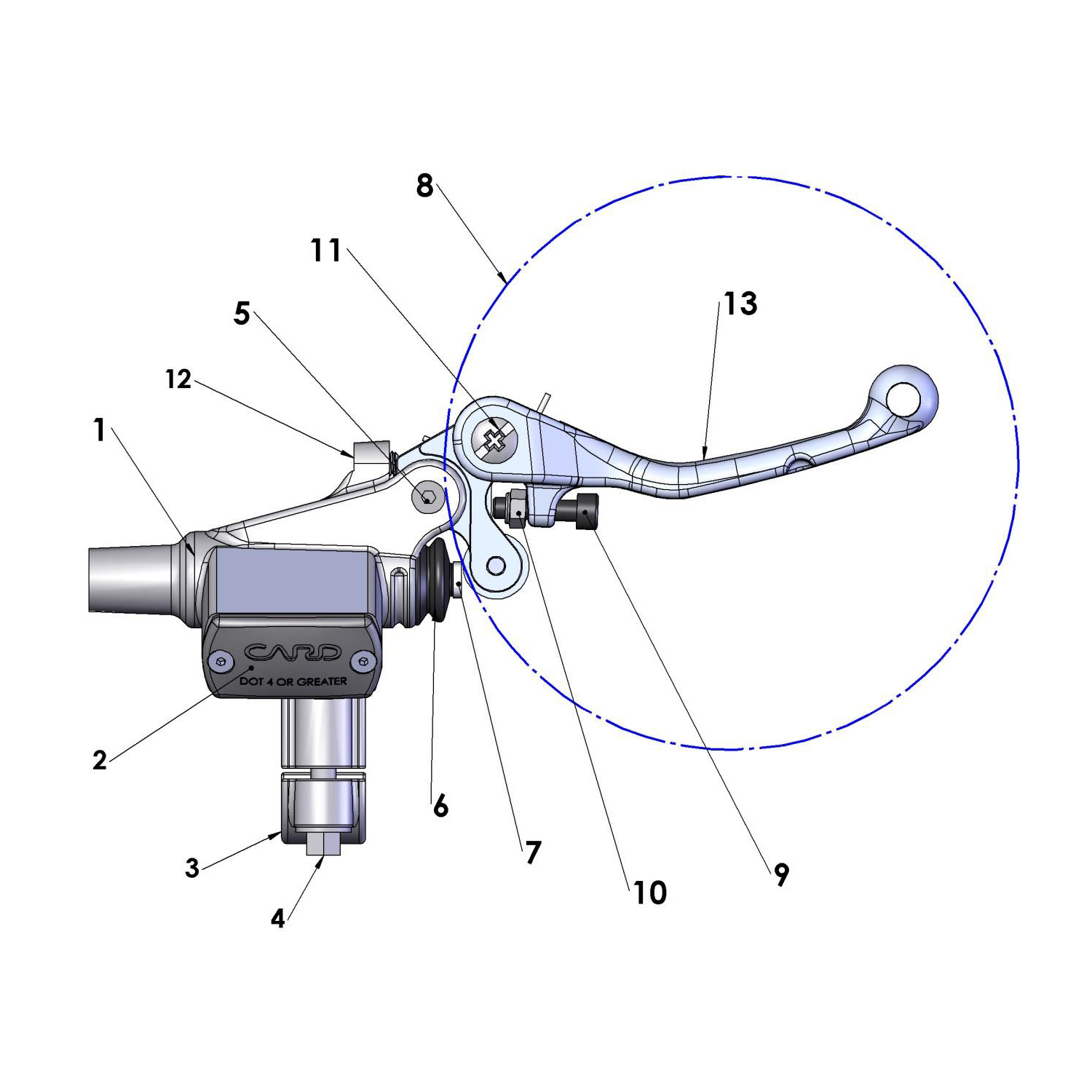

BAC60016 Assembly - Brake Master Cylinder (M/C) w Lever Assy quantity
1 Assembly - Brake Master Cylinder (M/C) w Lever Assy BAC60016 REF: 1
BAC60016
BKC60008 Cap & Bladder Kit ZL150 (Cap, Bladder & (2) M3-0.5 X 6mm Long Phillips Screw) quantity
2 Cap & Bladder Kit ZL150 (Cap, Bladder & (2) M3-0.5 X 6mm Long Phillips Screw) BKC60008 REF: 2
BKC60008
BCC60058 Clamp – M/C ZL150 quantity
3 Clamp – M/C ZL150 BCC60058 REF: 3
BCC60058
HCBF1625 M6-1.0 x 25mm Long Flange Head Bolt quantity
4 M6-1.0 x 25mm Long Flange Head Bolt HCBF1625 REF: 4
HCBF1625
BCMU0060 Pivot Bolt quantity
5 Pivot Bolt BCMU0060 REF: 5
BCMU0060
BCC60017 Boot – Piston End Cover quantity
6 Boot – Piston End Cover BCC60017 REF: 6
BCC60017
BKC60015 Rebuild Kit – Master Cylinder ZL150 (Piston, Seals, Spring, Clip & Retaining Washer) quantity
7 Rebuild Kit – Master Cylinder ZL150 (Piston, Seals, Spring, Clip & Retaining Washer) BKC60015 REF: 7
BKC60015
CKC60004 Lever Assy – Brake – Card quantity
8 Lever Assy – Brake – Card CKC60004 REF: 8
CKC60004
HCBC0502 M5x20mm Socket Head Cap Screw (2 Req’d) quantity
9 M5x20mm Socket Head Cap Screw (2 Req’d) HCBC0502 REF: 9
HCBC0502
HCNL0501 Lock Nut 5mm quantity
10 Lock Nut 5mm HCNL0501 REF: 10
HCNL0501
CKC60005 Pivot Bolt Kit – Lever to Pivot Block (Male and Female Bolts) quantity
11 Pivot Bolt Kit – Lever to Pivot Block (Male and Female Bolts) CKC60005 REF: 11
CKC60005
HCSS0610 Set Screw – Preset quantity
12 Set Screw – Preset HCSS0610 REF: 12
HCSS0610
CCC60015 Lever Only – Clutch or Brake quantity
13 Lever Only – Clutch or Brake CCC60015 REF: 13
CCC60015
BKC60004 Lever Assembly - Shorty quantity
Accessory Lever Assembly - Shorty BKC60004 REF: Accessory
BKC60004
BCMU0116 Cover – Mud Protection quantity
Not shown Cover – Mud Protection BCMU0116 REF: Not shown
BCMU0116
CCC60026 Spring – Lever Return quantity
Not shown Spring – Lever Return CCC60026 REF: Not shown
CCC60026
CCC60025 Spacer – Spring Centering quantity
Not shown Spacer – Spring Centering CCC60025 REF: Not shown
CCC60025
BCC60054B Line Front CX65 ZL150 quantity
Not shown Line Front CX65 ZL150 BCC60054B REF: Not shown
BCC60054B
