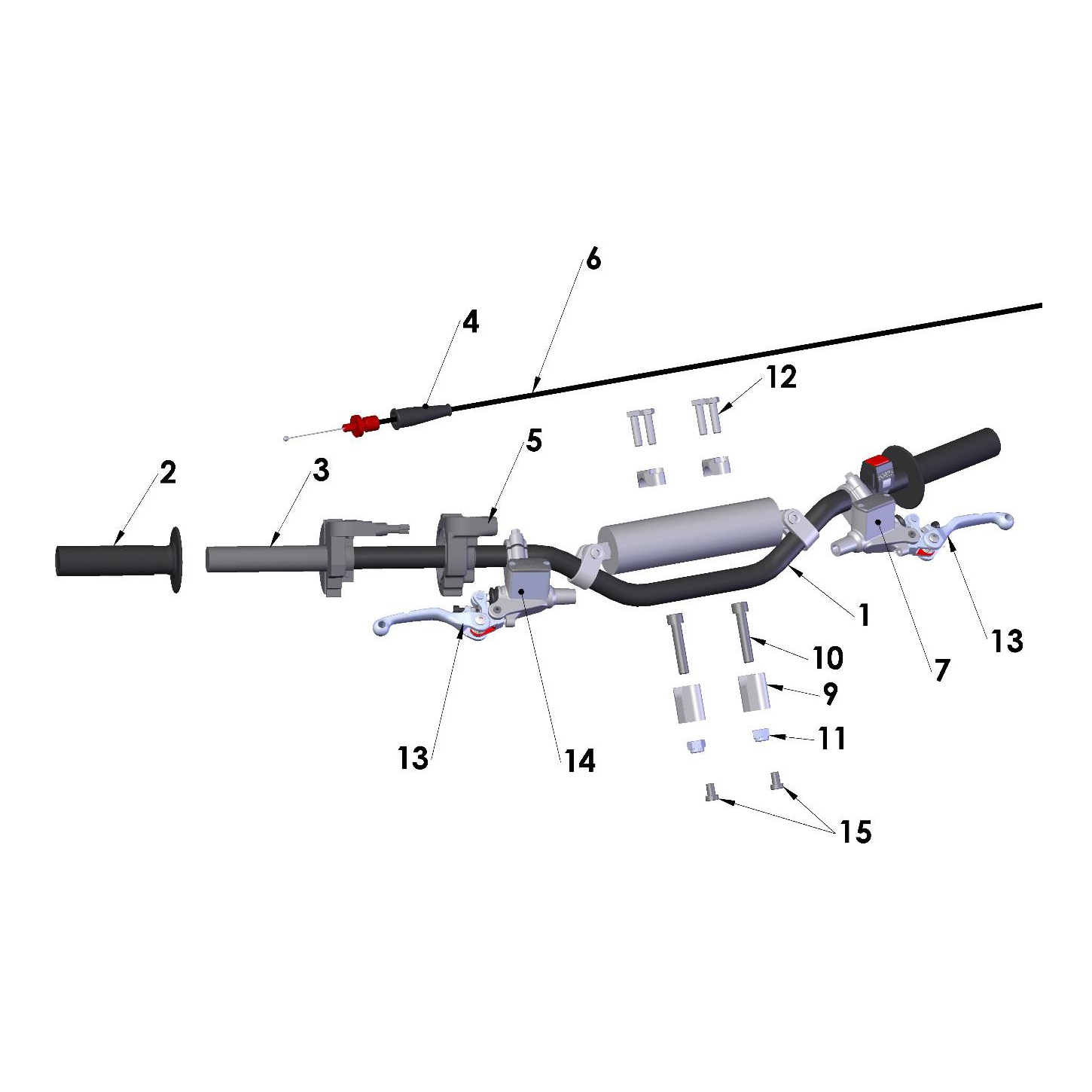

FAC60023 Handlebars – ProTaper CX65 quantity
+
1 Handlebars – ProTaper CX65 FAC60023 REF: 1
FAC60023
-
TCC60035 Grips – ProTaper (Set of Two) quantity
+
2 Grips – ProTaper (Set of Two) TCC60035 REF: 2
TCC60035
-
FCMU0066 Throttle Assembly quantity
+
3 Throttle Assembly FCMU0066 REF: 3
FCMU0066
-
FCMU0042 Tube – Throttle quantity
+
3 Tube – Throttle FCMU0042 REF: 3
FCMU0042
-
FCPW0004 Cable Cover quantity
+
4 Cable Cover FCPW0004 REF: 4
FCPW0004
-
FCMU0021 Throttle Cover quantity
+
5 Throttle Cover FCMU0021 REF: 5
FCMU0021
-
RAC60001 Throttle Cable quantity
+
6 Throttle Cable RAC60001 REF: 6
RAC60001
-
CCC60022 Master Cylinder Assembly – Magura – w Lever quantity
+
7 Master Cylinder Assembly – Magura – w Lever CCC60022 REF: 7
CCC60022
-
FCMU0033 Kill Switch Assembly quantity
+
8 Kill Switch Assembly FCMU0033 REF: 8
FCMU0033
-
TKMU0404 Bar Mount Kit, Short (1 Req’d) Standard quantity
+
9 Bar Mount Kit, Short (1 Req’d) Standard TKMU0404 REF: 9
TKMU0404
-
TKMU0403 Bar Mount Kit, Tall (1 Req’d) quantity
+
9A Bar Mount Kit, Tall (1 Req’d) TKMU0403 REF: 9A
TKMU0403
-
HCBC1035 M10x35mm Socket Head Cap Screw (2 Req’d) quantity
+
10 M10x35mm Socket Head Cap Screw (2 Req’d) HCBC1035 REF: 10
HCBC1035
-
HCNL1001 10mm Locknut – Regular quantity
+
11 10mm Locknut – Regular HCNL1001 REF: 11
HCNL1001
-
HCBC0806 M8x30mm Socket Head Cap Screw (4 Req’d) quantity
+
12 M8x30mm Socket Head Cap Screw (4 Req’d) HCBC0806 REF: 12
HCBC0806
-
CCC60034 Lever – Magura Clutch quantity
+
13A Lever – Magura Clutch CCC60034 REF: 13A
CCC60034
-
CKC60004 Lever Assy – Brake – Card quantity
+
13B Lever Assy – Brake – Card CKC60004 REF: 13B
CKC60004
-
BAC60010 Master Cylinder Assembly – Brake – with Lever quantity
+
14 Master Cylinder Assembly – Brake – with Lever BAC60010 REF: 14
BAC60010
-
HCBC0812 M8x12 SHCS – Low Profile (2 Req’d) quantity
+
15 M8x12 SHCS – Low Profile (2 Req’d) HCBC0812 REF: 15
HCBC0812
-
MCMU0001 Pad – Cross Bar quantity
+
– Pad – Cross Bar MCMU0001 REF: Not Shown
MCMU0001
-
BKC60015 Rebuild Kit – Master Cylinder ZL150 (Piston, Seals, Spring, Clip & Retaining Washer) quantity
+
Accessory Rebuild Kit – Master Cylinder ZL150 (Piston, Seals, Spring, Clip & Retaining Washer) BKC60015 REF: Accessory
BKC60015
-
CCC60038 Rebuild Kit – Clutch Master Cylinder – Magura quantity
+
Accessory Rebuild Kit – Clutch Master Cylinder – Magura CCC60038 REF: Accessory
CCC60038
