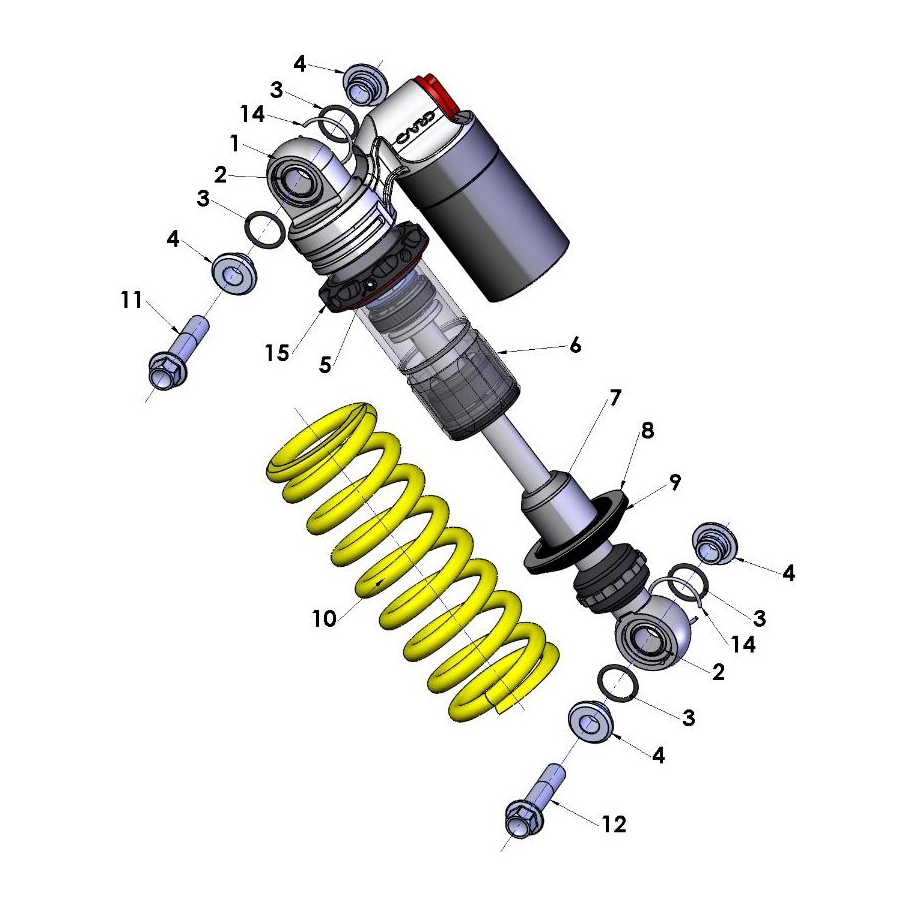

SAC62022 Shock Absorber – CX65 quantity
+
1 Shock Absorber – CX65 SAC62022 REF: 1
SAC62022
-
SCMU0043 Shock - Bearing Spherical Shock Mount – Card (2 Req’d) quantity
+
2 Shock - Bearing Spherical Shock Mount – Card (2 Req’d) SCMU0043 REF: 2
SCMU0043
-
SCMU0039 O-Ring - Shock - Bushing – Card (4 Req’d) quantity
+
3 O-Ring - Shock - Bushing – Card (4 Req’d) SCMU0039 REF: 3
SCMU0039
-
SCMU0042 Shock - Mount Bushing – Card (4 Req’d) quantity
+
4 Shock - Mount Bushing – Card (4 Req’d) SCMU0042 REF: 4
SCMU0042
-
SCMU0058 Shock - White Nylon Tip Setscrew M6-1.0 - Card quantity
+
5 Shock - White Nylon Tip Setscrew M6-1.0 - Card SCMU0058 REF: 5
SCMU0058
-
SCMU0056 Shock - Sleeve Black - Card quantity
+
6 Shock - Sleeve Black - Card SCMU0056 REF: 6
SCMU0056
-
SCMU0100 Bumper – Tapered – Shock quantity
+
7 Bumper – Tapered – Shock SCMU0100 REF: 7
SCMU0100
-
SCMU0040 Shock - Spring Pad - Card quantity
+
8 Shock - Spring Pad - Card SCMU0040 REF: 8
SCMU0040
-
SCMU0054 Shock - Spring Perch - Card quantity
+
9 Shock - Spring Perch - Card SCMU0054 REF: 9
SCMU0054
-
SCC60220P Spring Extra Extra Light 220 lb/in (38.5 N/mm) Red quantity
+
10 Spring Extra Extra Light 220 lb/in (38.5 N/mm) Red SCC60220P REF: 10
SCC60220P
-
SCC60240P Spring Extra Light 240 lb/in (42 N/mm) White quantity
+
10 Spring Extra Light 240 lb/in (42 N/mm) White SCC60240P REF: 10
SCC60240P
-
SCC60260PY Spring Standard 260 lb/in (45.5 N/mm) Yellow quantity
+
10 Spring Standard 260 lb/in (45.5 N/mm) Yellow SCC60260PY REF: 10
SCC60260PY
-
SCC60280PG Spring Heavy 280 lb/in (49 N/mm) Black quantity
+
10 Spring Heavy 280 lb/in (49 N/mm) Black SCC60280PG REF: 10
SCC60280PG
-
SCC60300P Spring Heavy 300 lb/in (52.5 N/mm) Gray & Red quantity
+
10 Spring Heavy 300 lb/in (52.5 N/mm) Gray & Red SCC60300P REF: 10
SCC60300P
-
HCBF1039 M10x40mm Flange Head Bolt quantity
+
11 M10x40mm Flange Head Bolt HCBF1039 REF: 11
HCBF1039
-
HCSP1055 M10 X 55 Offset Head Bolt quantity
+
12 M10 X 55 Offset Head Bolt HCSP1055 REF: 12
HCSP1055
-
HCNL1001 10mm Locknut – Regular quantity
+
13 10mm Locknut – Regular HCNL1001 REF: 13
HCNL1001
-
SCMU0330 Circlip – Spherical Bearing Retainer quantity
+
14 Circlip – Spherical Bearing Retainer SCMU0330 REF: 14
SCMU0330
-
SCMU0120 Preload Adjuster Ring quantity
+
15 Preload Adjuster Ring SCMU0120 REF: 15
SCMU0120
-
SKC60002 Rebuild Kit – CARD Shock quantity
+
Accessory Rebuild Kit – CARD Shock SKC60002 REF: Accessory
SKC60002
