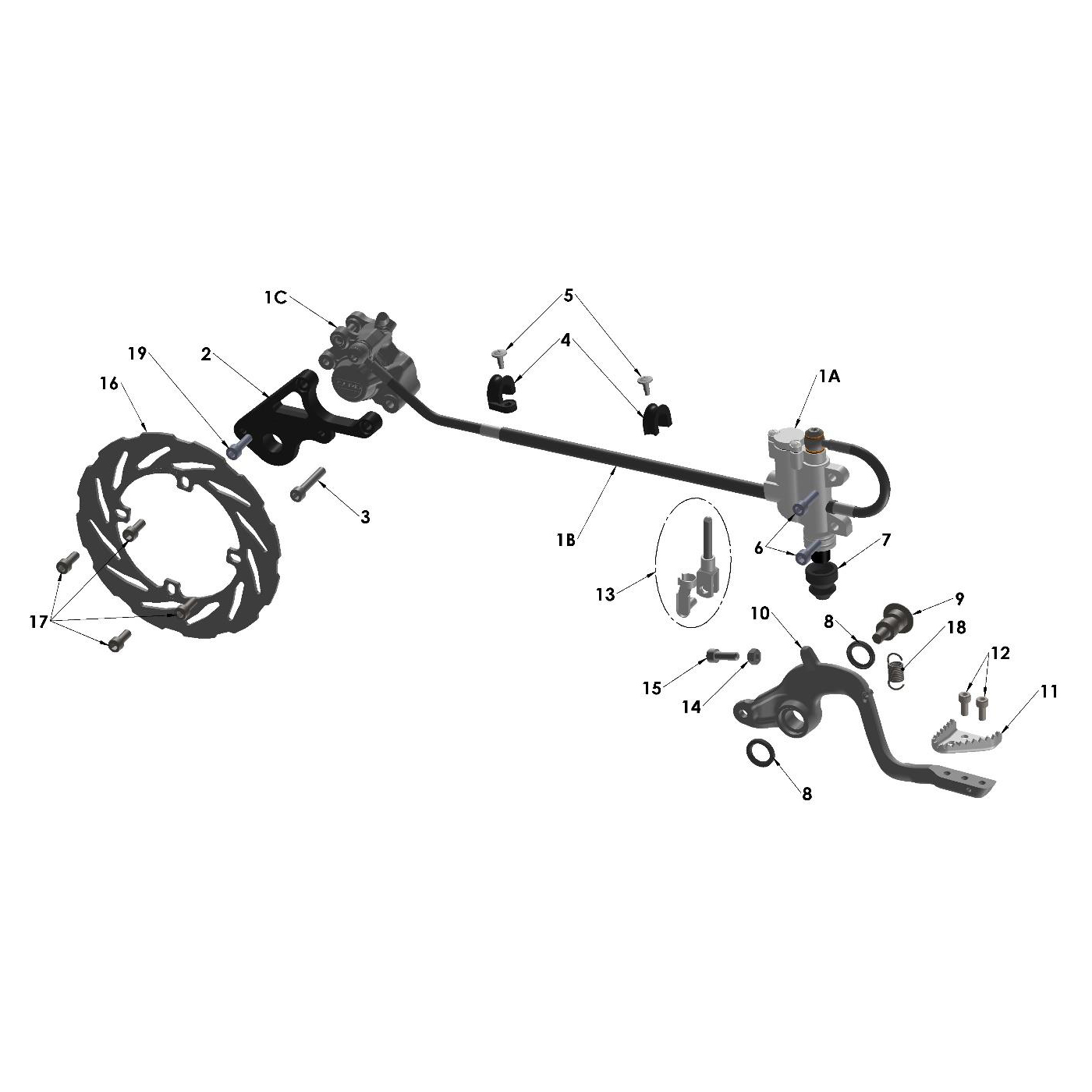

BAC60018 Brake Assembly Rear (Master Cylinder, Line and Caliper) quantity
+
1 Brake Assembly Rear (Master Cylinder, Line and Caliper) BAC60018 REF: 1
BAC60018
-
BAC60015 Master Cylinder - Rear quantity
+
1A Master Cylinder - Rear BAC60015 REF: 1A
BAC60015
-
BCC60104B Line Rear CX65 quantity
+
1B Line Rear CX65 BCC60104B REF: 1B
BCC60104B
-
BAMU0010 Caliper CX65 quantity
+
1C Caliper CX65 BAMU0010 REF: 1C
BAMU0010
-
BCC60093 Bracket – Caliper Mounting quantity
+
2 Bracket – Caliper Mounting BCC60093 REF: 2
BCC60093
-
HCBC0604 M6x35mm Socket Head Cap Screw quantity
+
3 M6x35mm Socket Head Cap Screw HCBC0604 REF: 3
HCBC0604
-
HCCC0005 Guide – Brake Hose (2 Req’d) quantity
+
4 Guide – Brake Hose (2 Req’d) HCCC0005 REF: 4
HCCC0005
-
HCPP0832 Brake Hose Clamp Fastener quantity
+
5 Brake Hose Clamp Fastener HCPP0832 REF: 5
HCPP0832
-
HCBC0602 M6x20mm Socket Head Cap Screw (2 Req’d) quantity
+
6 M6x20mm Socket Head Cap Screw (2 Req’d) HCBC0602 REF: 6
HCBC0602
-
BCMU0022 Brake – Rubber Cap quantity
+
7 Brake – Rubber Cap BCMU0022 REF: 7
BCMU0022
-
BCMU0501 Seal – Brake Pedal (2 Req’d) quantity
+
8 Seal – Brake Pedal (2 Req’d) BCMU0501 REF: 8
BCMU0501
-
BCMU0027 Brake Pedal Pivot Bolt quantity
+
9 Brake Pedal Pivot Bolt BCMU0027 REF: 9
BCMU0027
-
BCMU0062 Brake Pedal – Assembly 50cc – with Toe Piece quantity
+
10 Brake Pedal – Assembly 50cc – with Toe Piece BCMU0062 REF: 10
BCMU0062
-
BCMU0023T Toe Piece quantity
+
11 Toe Piece BCMU0023T REF: 11
BCMU0023T
-
HCBC0501 M5x12mm Socket Head Cap Screw quantity
+
12 M5x12mm Socket Head Cap Screw HCBC0501 REF: 12
HCBC0501
-
BAC60004 Push Rod, Rear Brake quantity
+
13 Push Rod, Rear Brake BAC60004 REF: 13
BAC60004
-
HCNL0601 M6 Nylock Nut (2 Req’d) quantity
+
14 M6 Nylock Nut (2 Req’d) HCNL0601 REF: 14
HCNL0601
-
HCBC0625 M6x25mm Socket Head Cap Screw (2 Req’d) quantity
+
15 M6x25mm Socket Head Cap Screw (2 Req’d) HCBC0625 REF: 15
HCBC0625
-
BCC60004 Brake Rotor Rear quantity
+
16 Brake Rotor Rear BCC60004 REF: 16
BCC60004
-
HCBC0601 M6x16mm Socket Head Cap Screw (2 Req’d) quantity
+
17 M6x16mm Socket Head Cap Screw (2 Req’d) HCBC0601 REF: 17
HCBC0601
-
BCMUSP03 Spring – Rear Brake Pedal quantity
+
18 Spring – Rear Brake Pedal BCMUSP03 REF: 18
BCMUSP03
-
HCBC0602 M6x20mm Socket Head Cap Screw (2 Req’d) quantity
+
19 M6x20mm Socket Head Cap Screw (2 Req’d) HCBC0602 REF: 19
HCBC0602
-
BKC60016 Pad Set CX65 Sintered Metal with Bolt and Clip quantity
+
Accessory Pad Set CX65 Sintered Metal with Bolt and Clip BKC60016 REF: Accessory
BKC60016
-
BKMU0003 Bleed Kit (Multiple Syringes, Fittings & Hose) quantity
+
Accessory Bleed Kit (Multiple Syringes, Fittings & Hose) BKMU0003 REF: Accessory
BKMU0003
-
BCMU0038 Spring - Brake Pad Return quantity
+
Accessory Spring - Brake Pad Return BCMU0038 REF: Accessory
BCMU0038
-
BKMU0006 Piston & Seal Kit – Card Caliper quantity
+
Accessory Piston & Seal Kit – Card Caliper BKMU0006 REF: Accessory
BKMU0006
-
BKMU0008 Bleed Screw Kit – Card quantity
+
Accessory Bleed Screw Kit – Card BKMU0008 REF: Accessory
BKMU0008
-
BCC60034 Rubber Cap Only - Bleed Screw quantity
+
Accessory Rubber Cap Only - Bleed Screw BCC60034 REF: Accessory
BCC60034
-
BCKG0016 Cap & Seal Kit – Master Cylinder quantity
+
Accessory Cap & Seal Kit – Master Cylinder BCKG0016 REF: Accessory
BCKG0016
-
BCKG0015 Rebuild Kit – Master Cylinder – Formula Ø11 TSB1222 quantity
+
Accessory Rebuild Kit – Master Cylinder – Formula Ø11 TSB1222 BCKG0015 REF: Accessory
BCKG0015
-
BKC60009 Rebuild Kit – Master Cylinder – ZL Ø12.7 TSB1222 quantity
+
Accessory Rebuild Kit – Master Cylinder – ZL Ø12.7 TSB1222 BKC60009 REF: Accessory
BKC60009
-
BKMU0011 Rebuild Kit – Master Cylinder – Card Ø11 TSB1222 quantity
+
Accessory Rebuild Kit – Master Cylinder – Card Ø11 TSB1222 BKMU0011 REF: Accessory
BKMU0011
-
BKMU0007 Banjo Bolt and Washer Kit – Card quantity
+
Accessory Banjo Bolt and Washer Kit – Card BKMU0007 REF: Accessory
BKMU0007
-
BCC60045 Shark Fin quantity
+
Accessory Shark Fin BCC60045 REF: Accessory
BCC60045
-
BKMU0003 Bleed Kit (Multiple Syringes, Fittings & Hose) quantity
+
Tool Bleed Kit (Multiple Syringes, Fittings & Hose) BKMU0003 REF: Tool
BKMU0003
