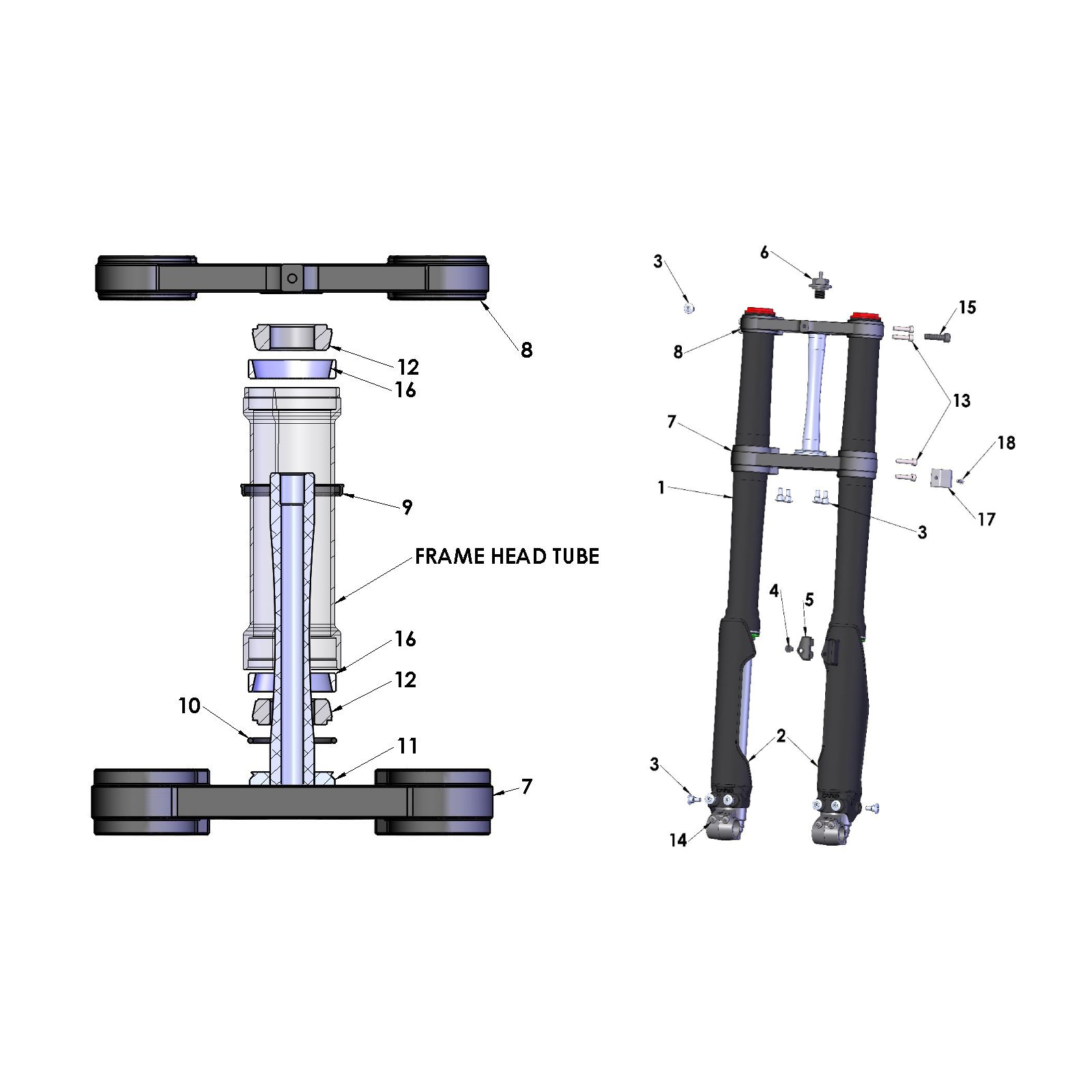

KAC62013 Fork Complete, Brake & Non-Brake Side quantity
+
1 Fork Complete, Brake & Non-Brake Side KAC62013 REF: 1
KAC62013
-
KCC60071 Fork Guards – Pair (3 Bolt Style) quantity
+
2 Fork Guards – Pair (3 Bolt Style) KCC60071 REF: 2
KCC60071
-
HCSP0610BLK Bolt - Fork Guard - Black (6 Req’d) quantity
+
3 Bolt - Fork Guard - Black (6 Req’d) HCSP0610BLK REF: 3
HCSP0610BLK
-
HCSP0004 Screw – Plascrew - Aluminum quantity
+
4 Screw – Plascrew - Aluminum HCSP0004 REF: 4
HCSP0004
-
KCMU0036 Clamp – Brake Line quantity
+
5 Clamp – Brake Line KCMU0036 REF: 5
KCMU0036
-
FCMU0111 Bolt – Steering Stem – w Hose Barb quantity
+
6 Bolt – Steering Stem – w Hose Barb FCMU0111 REF: 6
FCMU0111
-
FAC60028BLK Triple Clamp Bottom Ass’y (Clamp & Steering Stem) quantity
+
7 Triple Clamp Bottom Ass’y (Clamp & Steering Stem) FAC60028BLK REF: 7
FAC60028BLK
-
FCC60084BLK Top Triple Clamp - BLK quantity
+
8 Top Triple Clamp - BLK FCC60084BLK REF: 8
FCC60084BLK
-
FCMU0079 Dust Cover (1 Req’d) quantity
+
9 Dust Cover (1 Req’d) FCMU0079 REF: 9
FCMU0079
-
FCMU0044 O-Ring (1 Req’d) quantity
+
10 O-Ring (1 Req’d) FCMU0044 REF: 10
FCMU0044
-
FCC60081 Seal Ring - O-Ring - Bottom Trip Clamp quantity
+
11 Seal Ring - O-Ring - Bottom Trip Clamp FCC60081 REF: 11
FCC60081
-
FCMU0004 Steering Head Bearing (2 Req’d) quantity
+
12 Steering Head Bearing (2 Req’d) FCMU0004 REF: 12
FCMU0004
-
HCBC0625 M6x25mm Socket Head Cap Screw (2 Req’d) quantity
+
13 M6x25mm Socket Head Cap Screw (2 Req’d) HCBC0625 REF: 13
HCBC0625
-
HCBC0601 M6x16mm Socket Head Cap Screw (2 Req’d) quantity
+
14 M6x16mm Socket Head Cap Screw (2 Req’d) HCBC0601 REF: 14
HCBC0601
-
HCBC0806 M8x30mm Socket Head Cap Screw (4 Req’d) quantity
+
15 M8x30mm Socket Head Cap Screw (4 Req’d) HCBC0806 REF: 15
HCBC0806
-
FCMU0011 Race – Steering Stem Bearing (2 Req’d) quantity
+
16 Race – Steering Stem Bearing (2 Req’d) FCMU0011 REF: 16
FCMU0011
-
FCMU0175MP Steering Stop Bumper (2 Req’d) quantity
+
17 Steering Stop Bumper (2 Req’d) FCMU0175MP REF: 17
FCMU0175MP
-
HCBB1416 M4x16mm Button Head (2 Req’d) quantity
+
18 M4x16mm Button Head (2 Req’d) HCBB1416 REF: 18
HCBB1416
-
FKMU0008 Kit – Steering Stem Bearings, Races and Seals quantity
+
Accessory Kit – Steering Stem Bearings, Races and Seals FKMU0008 REF: Accessory
FKMU0008
