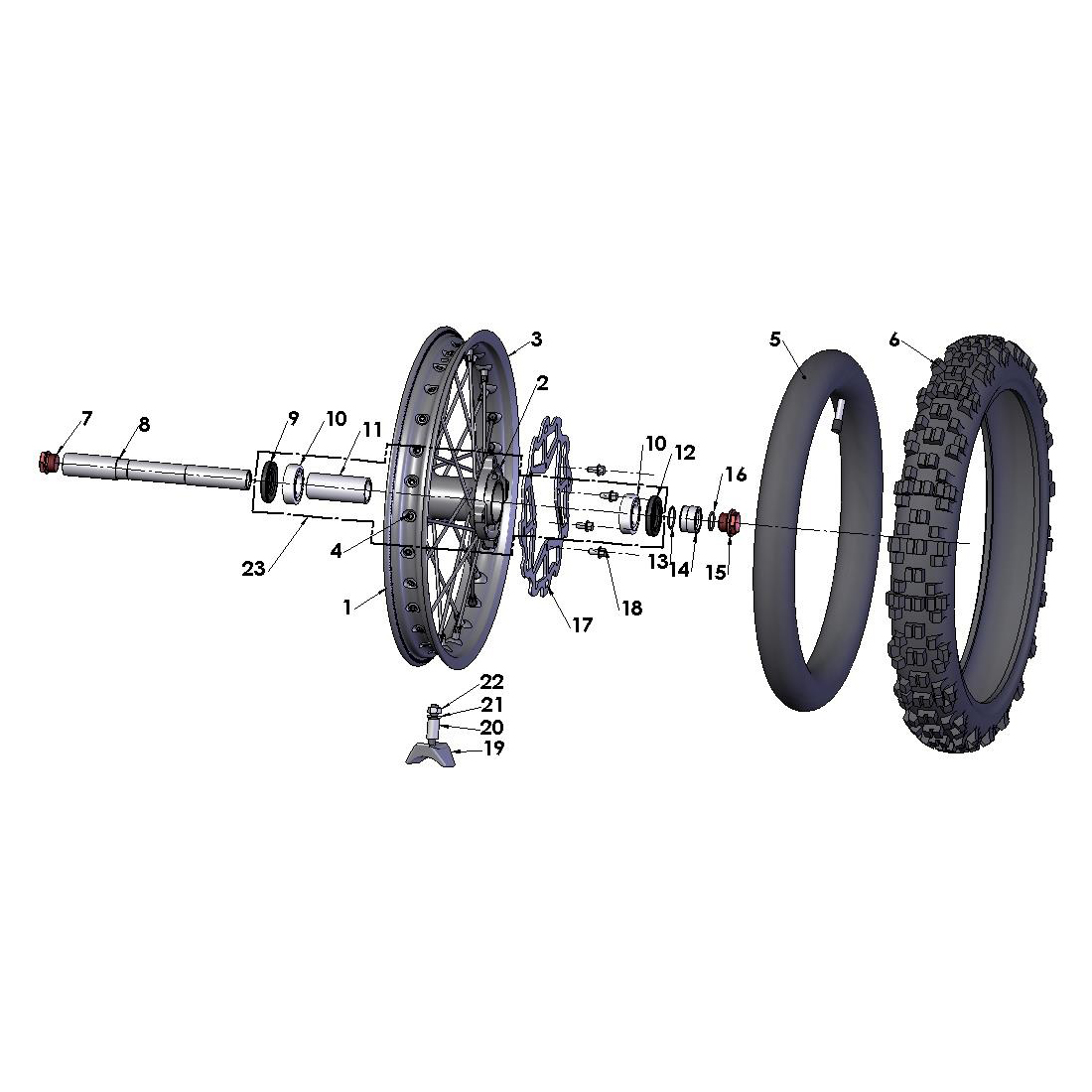

WAC6F018 Wheel 14” Front with Bearings & Seals (No Tire, or Tube), Black quantity
1 Wheel 14” Front with Bearings & Seals (No Tire, or Tube), Black WAC6F018 REF: 1
WAC6F018
WCC60122 Hub for CX65 – Front quantity
2 Hub for CX65 – Front WCC60122 REF: 2
WCC60122
WCMU1418BLK 14” Rim, Black quantity
3 14” Rim, Black WCMU1418BLK REF: 3
WCMU1418BLK
WKC6F023 Spoke w Nipple – Front Wheel – 65 (28 Req’d) quantity
4 Spoke w Nipple – Front Wheel – 65 (28 Req’d) WKC6F023 REF: 4
WKC6F023
WCDCTU14 Tube – 60/100-14 Front quantity
5 Tube – 60/100-14 Front WCDCTU14 REF: 5
WCDCTU14
WCC6F014D32 Tire - Front - 60/100-14 - Dunlop MX3S quantity
6 Tire - Front - 60/100-14 - Dunlop MX3S WCC6F014D32 REF: 6
WCC6F014D32
WCC60024 Plug – Axle - Non Brake Side (Smaller One) quantity
7 Plug – Axle - Non Brake Side (Smaller One) WCC60024 REF: 7
WCC60024
WCC60021 Axle Front Steel quantity
8 Axle Front Steel WCC60021 REF: 8
WCC60021
WCC60029 Seal Bearing Non-Brake Side Front Hub quantity
9 Seal Bearing Non-Brake Side Front Hub WCC60029 REF: 9
WCC60029
WCC60027 Bearing, Wheel-Sealed (2 Req’d) quantity
10 Bearing, Wheel-Sealed (2 Req’d) WCC60027 REF: 10
WCC60027
WCC60030 Spacer Wheel Bearing Front quantity
11 Spacer Wheel Bearing Front WCC60030 REF: 11
WCC60030
WCC60026 Seal Bearing Brake Side Front Hub quantity
12 Seal Bearing Brake Side Front Hub WCC60026 REF: 12
WCC60026
ZCMUOR22 O’Ring – Spacer - Front Axle quantity
13 O’Ring – Spacer - Front Axle ZCMUOR22 REF: 13
ZCMUOR22
WCC60025 Wheel Spacer Front Left quantity
14 Wheel Spacer Front Left WCC60025 REF: 14
WCC60025
WCC60023 Plug – Axle - Brake Side (Larger One) quantity
15 Plug – Axle - Brake Side (Larger One) WCC60023 REF: 15
WCC60023
ZCKGB017 O-Ring - Fork Bottom Plug quantity
16 O-Ring - Fork Bottom Plug ZCKGB017 REF: 16
ZCKGB017
BCC60100 Brake Rotor - Front quantity
17 Brake Rotor - Front BCC60100 REF: 17
BCC60100
HCBF1612 M6x12mm Flange Head – Low Profile (4 Req’d) quantity
18 M6x12mm Flange Head – Low Profile (4 Req’d) HCBF1612 REF: 18
HCBF1612
WCMU0019 Rim Lock – 1.4/1.6 quantity
19 Rim Lock – 1.4/1.6 WCMU0019 REF: 19
WCMU0019
WCDC0008 Rim Lock Spacer quantity
20 Rim Lock Spacer WCDC0008 REF: 20
WCDC0008
HCWF0801 8mm Flat Washer quantity
21 8mm Flat Washer HCWF0801 REF: 21
HCWF0801
HCNS0801 8mm Nut quantity
22 8mm Nut HCNS0801 REF: 22
HCNS0801
WAC6F118 Front Hub Assembly with Bearings, Seals, and Spacer quantity
23 Front Hub Assembly with Bearings, Seals, and Spacer WAC6F118 REF: 23
WAC6F118
MCMUTL17 Wrench – Spoke quantity
Tool Wrench – Spoke MCMUTL17 REF: Tool
MCMUTL17
